Ventless Hood System Installation
11
Particle/Odor Filter
1. Remove the filter from the plastic bag.
2. Open the filter door on the front of the unit by rotating the handle counter-clockwise.
3. Observing the “UP” arrows on the filter, with a hand at each front corner, carefully slide the filter
into the unit.
4. Close and latch the door.
Appliance Stop FB37144203 (Used with BKI Automatic Lift Fryers)
The Appliance Stop must be installed if a BKI Automatic Lift Fryer with M0084 lift
mechanism is to be connected to the hood. Failure to install this part could cause
damage to the hood and/or fryer.

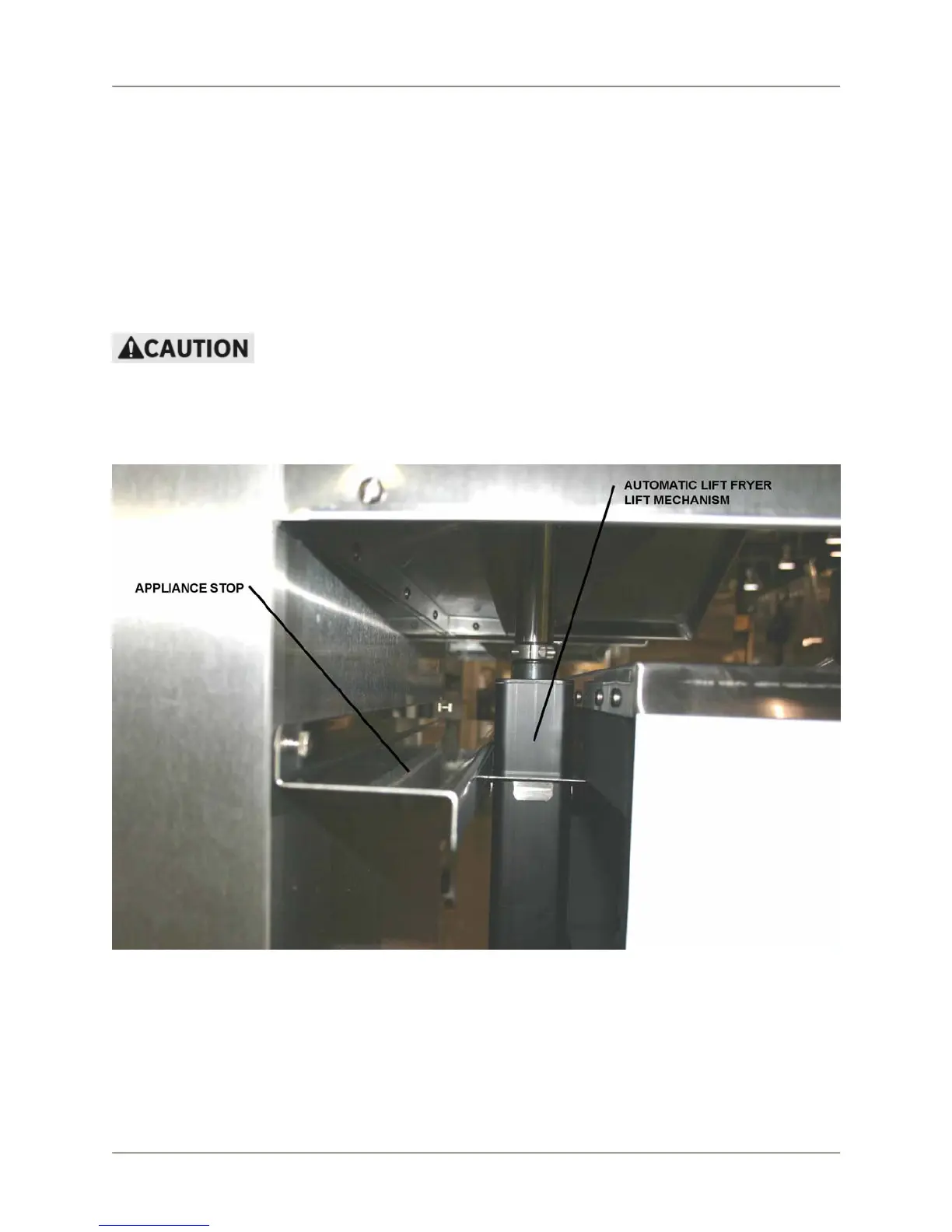

Install the Appliance Stop (FB37144203) on the hood as shown below if a BKI Automatic Lift Fryer with
M0084 lift mechanism is to be connected to the hood.
