Ventless Hood System Installation
16
Appliance Electrical Connection

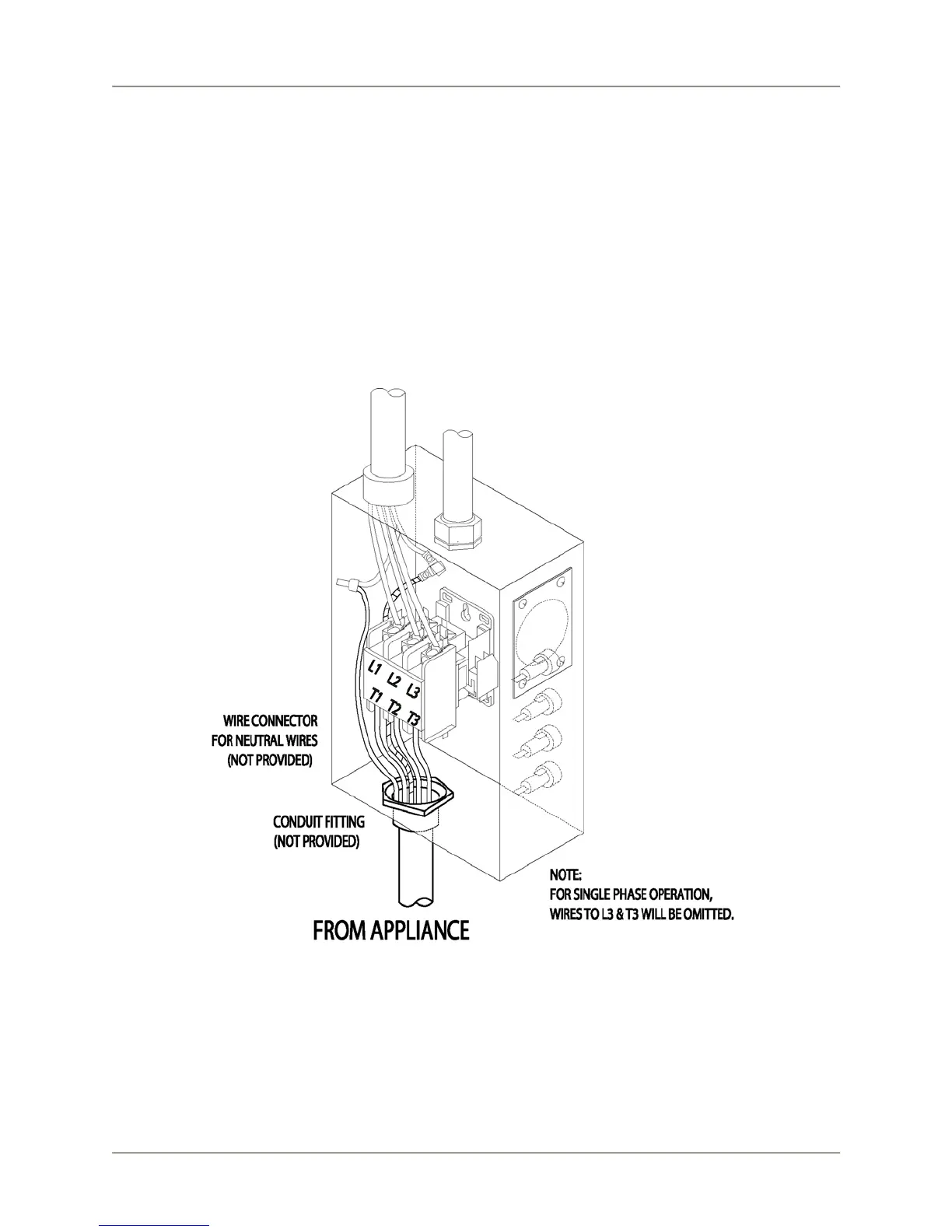

This connection is for appliances requiring a Listed flexible conduit connection (refer to figure below).
1. Remove receptacle and four wires (T1, T2, T3, and Ground).
2. Cover junction box hole with provided plate and hardware removed from receptacle.
3. Remove hole plug from hole in bottom of electrical enclosure and install conduit from appliance
utilizing appropriate Listed fitting (not provided).
4. Wire appliance as shown in figure below and the electrical diagram in this manual.
5. Replace all panels and install cover over hole that was provided for the receptacle (now removed)
