BKI FH-28 - Page 27

Ventless Hood System Replacement Parts
25
Table 4. Fire Piping System Assembly Parts List
ITEM# PART # QTY DESCRIPTION
1 FE0007 2 AFS 3/8" QUICK SEAL
2 FE0019 2 LIQUID SEAL ADAPTER 1/2" (FH/LFH)
3 FE0023 2 NOZZLE, 0.2 FLOW POINT
4 FE0031 1 PLUG,VENT 1/2NPT MALE KIDDE LFH42/63
5 FE0039 2 SWIVEL ADAPTER B120021
6 FE0040 2 NOZZLE ADP 3/8 F THREAD
7 FT0218 1 NIPPLE, 1/4 X 2 BLK
8 FT0219 1 NIPPLE, 1/4 X 4 BLK
9 FT0220 1 UNION, 1/4" BLK
10 FT0221 8 ELL, 1/4 90 DEG BLACK
11 FT0222 1 NIPPLE, 1/4 X C BLK
12 FT0281 2 TEE, 1/4" BLACK
13 FT0283 1 COUPLING, ¼ X 1/2 REDUCING
14 FT0331 1 CROSS, 1/4" BLACK PIPE
15 FT0334 2 BUSHING, 1/2 X 1/4 REDUCING
16 FT0336 3 NIPPLE, 1/4 X 3 1/2
17 FT0338 1 NIPPLE, 1/4 X 3 BLK NPT
18 FT0339 1 NIPPLE, 1/4 X 42 1/2 BLACK
19 FT0340 2 NIPPLE, 1/4 X 4 1/2 BLACK
20 FT0341 1 NIPPLE, 1/4 X 8 3/4 BLACK
21 FT0342 2 NIPPLE, 1/4 X 26 3/4
22 FT0343 1 NIPPLE, 1/4 X 8 BLACK
23 FT0344 1 NIPPLE, 1/4 X 6 1/4 BLACK
24 FT0345 1 ELL, STREET 1/4 NPT 90 DEG
25 FT0347 1 NIPPLE, 1/4 X 5 BLACK
26 FT0419 2 NIPPLE, 3/8 CLOSE SS SCH40
27 FT0431 2 BUSHING, 3/8 - 1/4 REDUCING

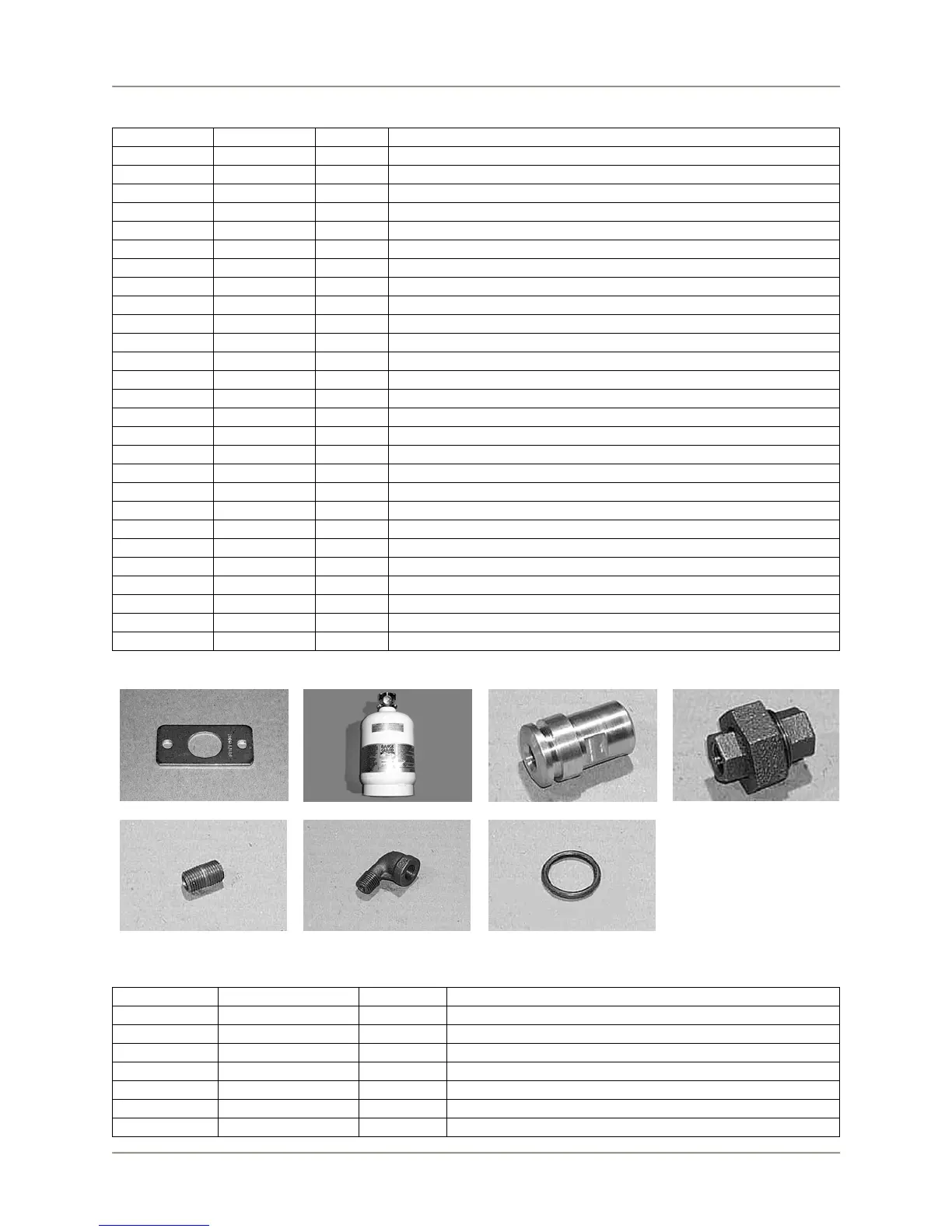

Figure 5. Cylinder/ELL/Bushing Assembly Parts
1 2 3 4
5 6 7
Table 5. Cylinder/ELL/Bushing Assembly Parts List
ITEM # PART # QTY DESCRIPTION
1 FB37139102 1 FIRE TANK SEAL, FH HOOD
2 FE0011 1 CYLINDER, 1.25 GAL
3 FE0037 1 REDUCING ADAPTER FOR FE0011
4 FT0220 1 UNION, 1/4" BLK
5 FT0222 1 NIPPLE, 1/4 X C BLK
6 FT0345 1 ELL, STREET 1/4 NPT 90 DEG
7 O0024 1 O-RING, .139 X .984 ID
