BLACK+DECKER Battery and Charger Systems
Chargers/Charge Time** (Hours) (0% to 100% charge)
20V MAX*
Batteries
Watt
Hours
20V MAX* Chargers
LCS200 LCS1620 LCS201 LCS202 L2AFC L2AFCBST
LBX20 26 6.5 3.25 1.3 0.65 0.65 0.65
LBXR20 30 7.5 3.75 1.5 0.75 0.75 0.75
LBXR2020 40 10 5 2 1 1 1
LBXR2520 50 12.5 6.25 2.5 1.25 1.25 1.25
LB2X3020 60 15 7.5 3 1.5 1.5 1.5
LB2X4020 80 20 10 4 2 2 2
**All charge times are approximate. Actual charge time may vary.
be properly repaired or replaced by an
authorized service center unless otherwise
indicated elsewhere in this manual.
• DO NOT immerse appliance in water or
squirt it with a hose. DO NOT allow any liquid
to get inside it. If appliance does get wet,
allow to dry for a minimum of 48 hours.
•
DO NOT store the appliance on or adjacent
to fertilizers or chemicals.
• DO NOT clean with a pressure washer.
• Keep guards in place and in working order.
• Keep hands and feet away from cutting area.
• Do not charge appliance in rain, or in wet
locations
WARNING: Do not use appliance if
the switch trigger does not turn the
appliance on or off. Any appliance that can
not be controlled with the switch trigger is
dangerous and must be repaired.
WARNING: Some dust created by
this product contains chemicals known to
the State of California to cause cancer,
birth defects or other reproductive harm.
Some examples of these chemicals are:
• compounds in fertilizers
• compounds in insecticides, herbicides
and pesticides
• arsenic and chromium from chemically
treated lumber
To reduce your exposure to these chemicals,
wear approved safety equipment such as
dust masks that are specially designed to
filter out microscopic particles.
SYMBOLS
The label on your appliance may include
the following symbols. The symbols and
their definitions are as follows:
V ................. volts
A ................. amperes
Hz ............... hertz
W ................ watts
min .............minutes
or AC .....alternating current
or DC ...direct current
n
o ...............no load speed
...............
Class I Construction (grounded)
................earthing terminal
..............safety alert symbol
................Class II Construction
(double insulated)
..
./min or rpm...revolutions or reciprocation
per minute
................
Use proper respiratory protection
............ Read instruction manual
before use
...............Use proper eye protection
................Use proper hearing protection

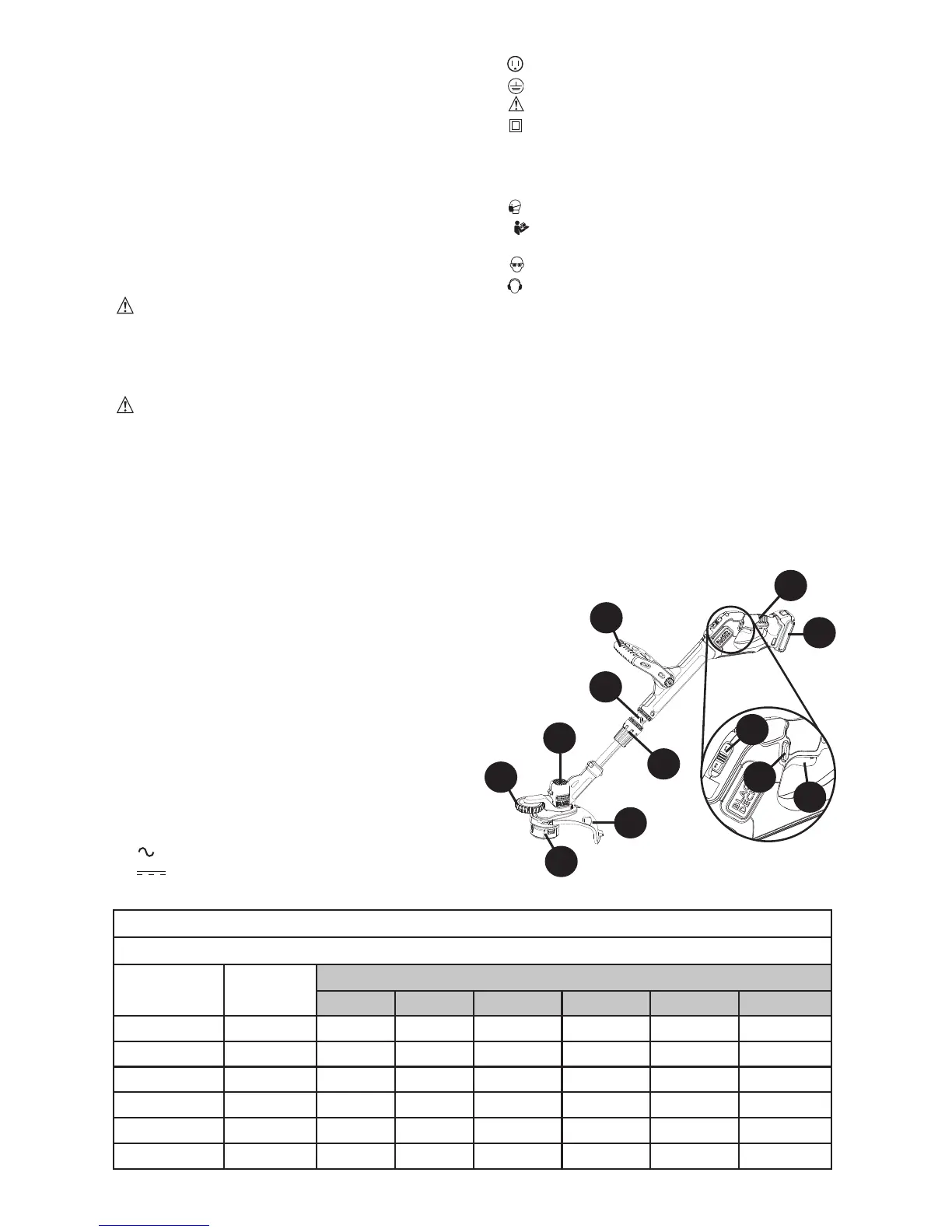

FUNCTIONAL DESCRIPTION
1. Trigger
2. Lock-off button
3. Handle
4. Speed-control switch
5. Auxiliary handle
6. Height-adjust collar
7. Flip-to-edge collar
8. Trimmer head
9. Edge wheel
10. Guard
11. Spool housing
12. Battery
5
9
6
7
10
3
8
12
11
1
2
4
