CHAPTER 4: Setup
Clock Mode Comments:
• Internal: The clock is generated by the internal clock generator.
• External: The clock is provided by the local equipment.
• Remote: The local modem receives the clock via the link from the distant
modem. The distant modem must be set to Internal or External.

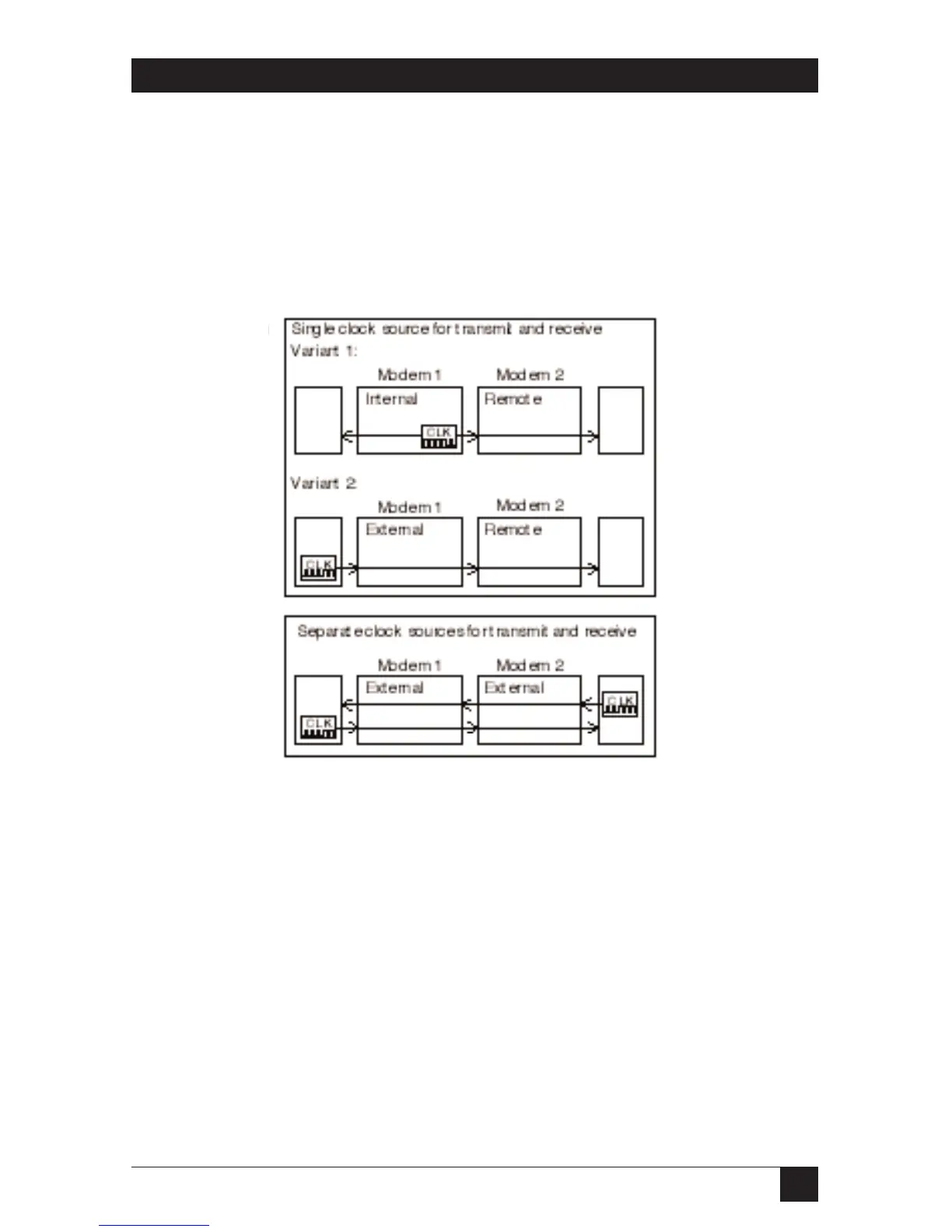

Figure 4-2. Possible Synchronous Clock Configurations.
