3.2.8 Receiver USB connections

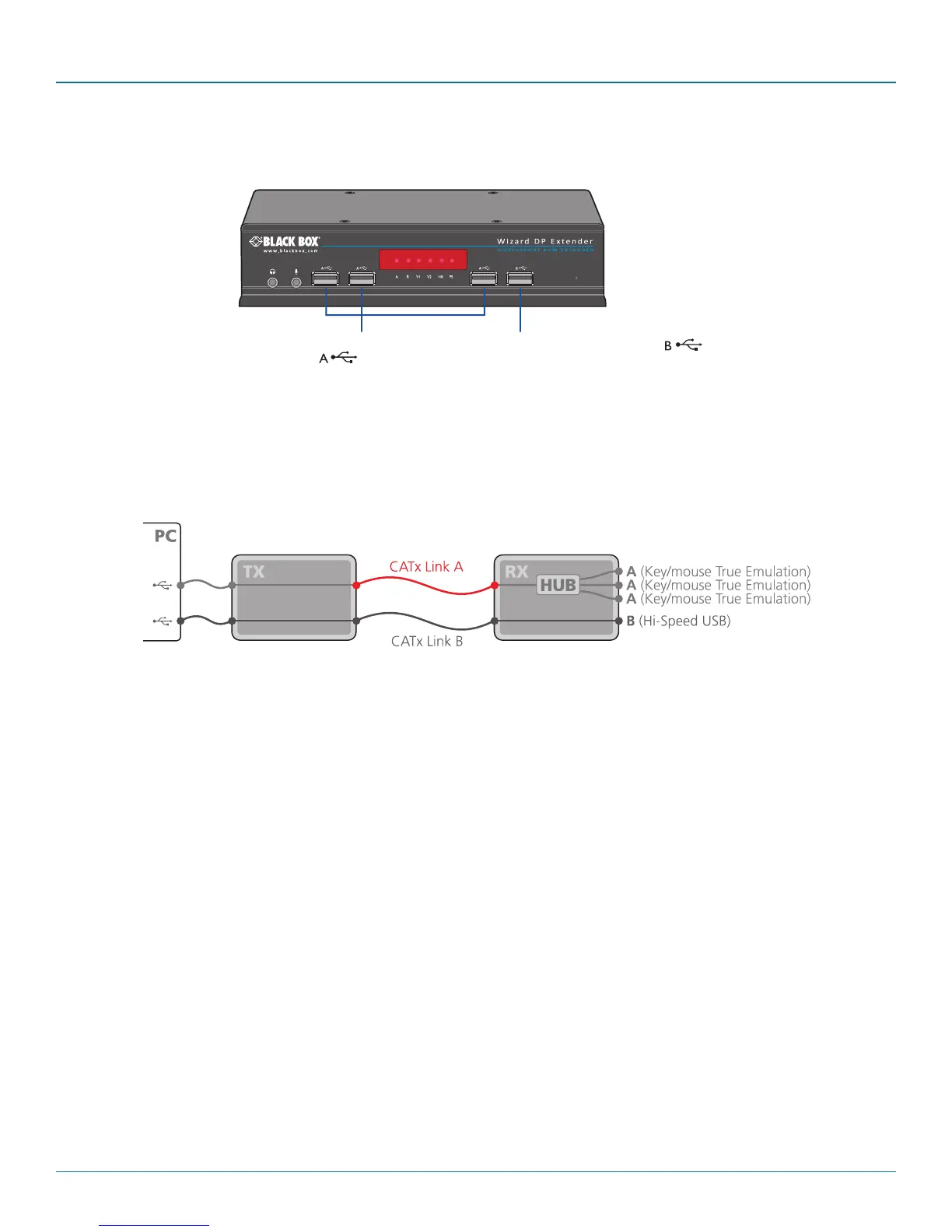

The Wizard DP Extender receiver provides four USB sockets on its front face:
Note: Low/full speed USB devices can be used on port B; the transfer speed will be automatically reduced to support them.
These three sockets are all
labeled and provide
True Emulation ports for low/
full speed USB keyboards and
mice only. These are also suita-
ble for providing power to 3rd
party DisplayPort adaptors.
The fourth socket is labeled and delivers
Hi-Speed USB providing that:
• Oneofthehostcomputer’sUSBsocketsiscon-
nected to the Link B socket on the Wizard DP
Extender transmitter and supports USB v2.0, and
• ThesecondCATxlink(B)isinplace.
