APPENDIX A: EXAMPLE APPLICATIONS
29

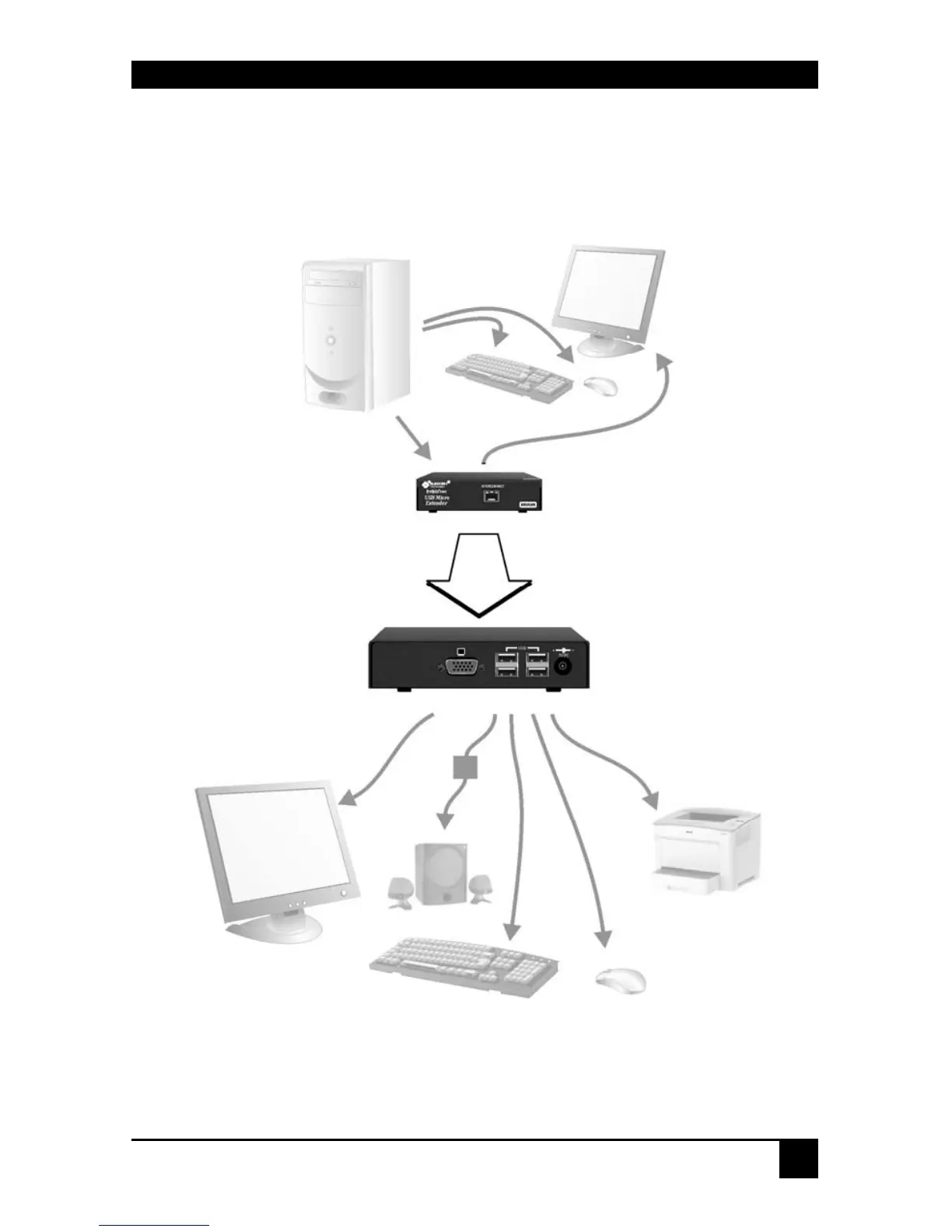

Figure 6 Single monitor consoles with audio extension using USB-to-
Audio converter (not supplied)
CPU
Keyboard and mouse for
Local console connect to
spare USB ports or hub.
ACU4001A Local Unit
Takes video and USB signals
from CPU. Also provides video
output for Local console.
ACU4001A Remote Unit
Video output and four USB
ports for extended devices:
keyboard, mouse, printer,
audio (requires USB-to-Audio
converter – not supplied).
Local Console
Remote Console
