724-746-5500 | blackbox.com Page 21
Appendix A: Pin Definitions
A.2 CAT5 (RJ-45)

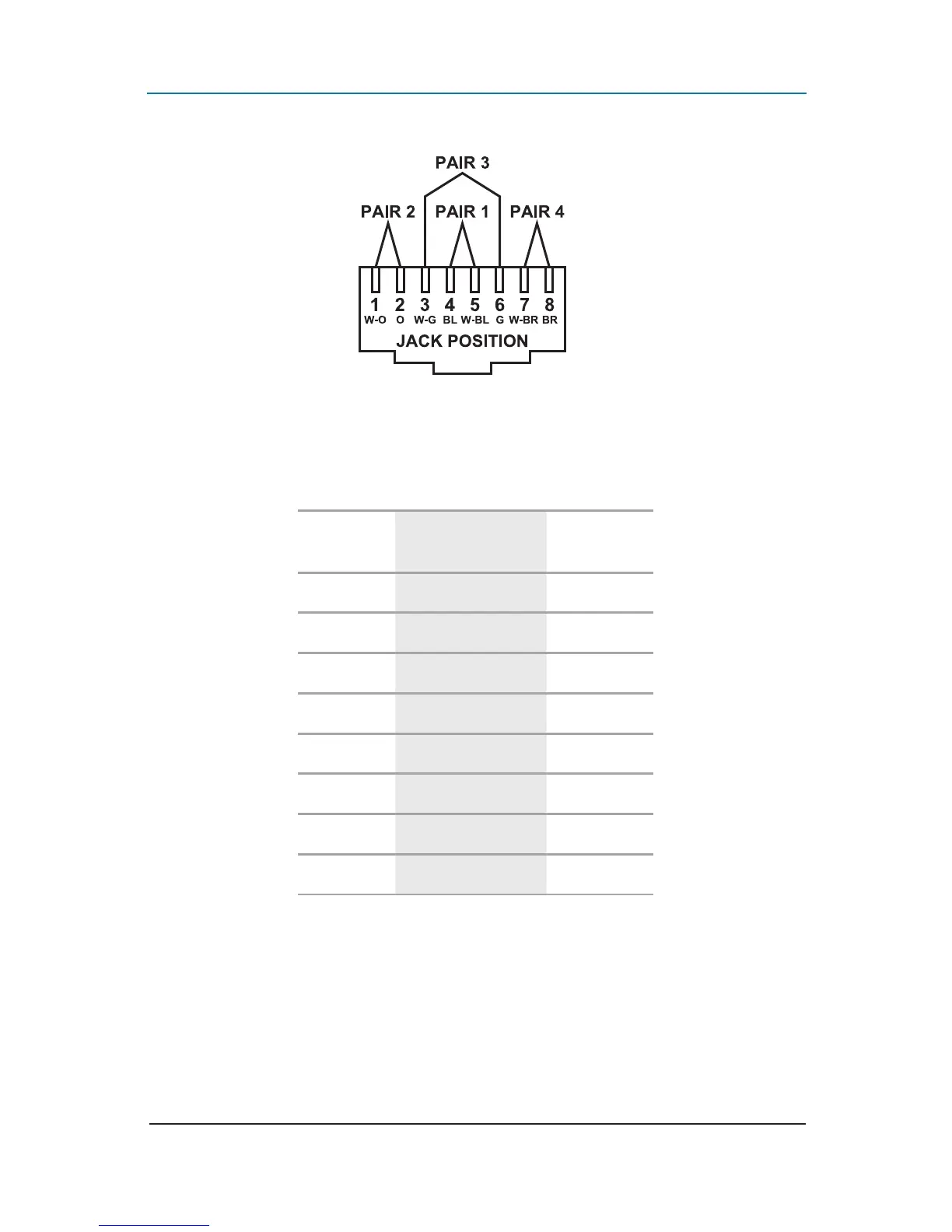

Figure A-2. RJ-45 jack.
Table A-2. Data link TIA/EIA-568-B.
Pin
Number Color Function
Pin 1 White-Orange TX0-
Pin 2 Orange TX0+
Pin 3 White-Green TX1-
Pin 4 Blue TX2-
Pin 5 White-Blue TX2+
Pin 6 Green TX1+
Pin 7 White-Brown T XC-
Pin 8 Brown TXC+
