Black Hawk FS Future - Page 20

Assembly 21
The straps to the 150 cm x 150 cm search coil must be mounted in order to carry the unit. It can be
comfortably carried by 1 or 2 people.
The straps can be carried by 2 people where each person has a strap or by 1 person by criss-crossing the
straps and carry the coil over the shoulder.

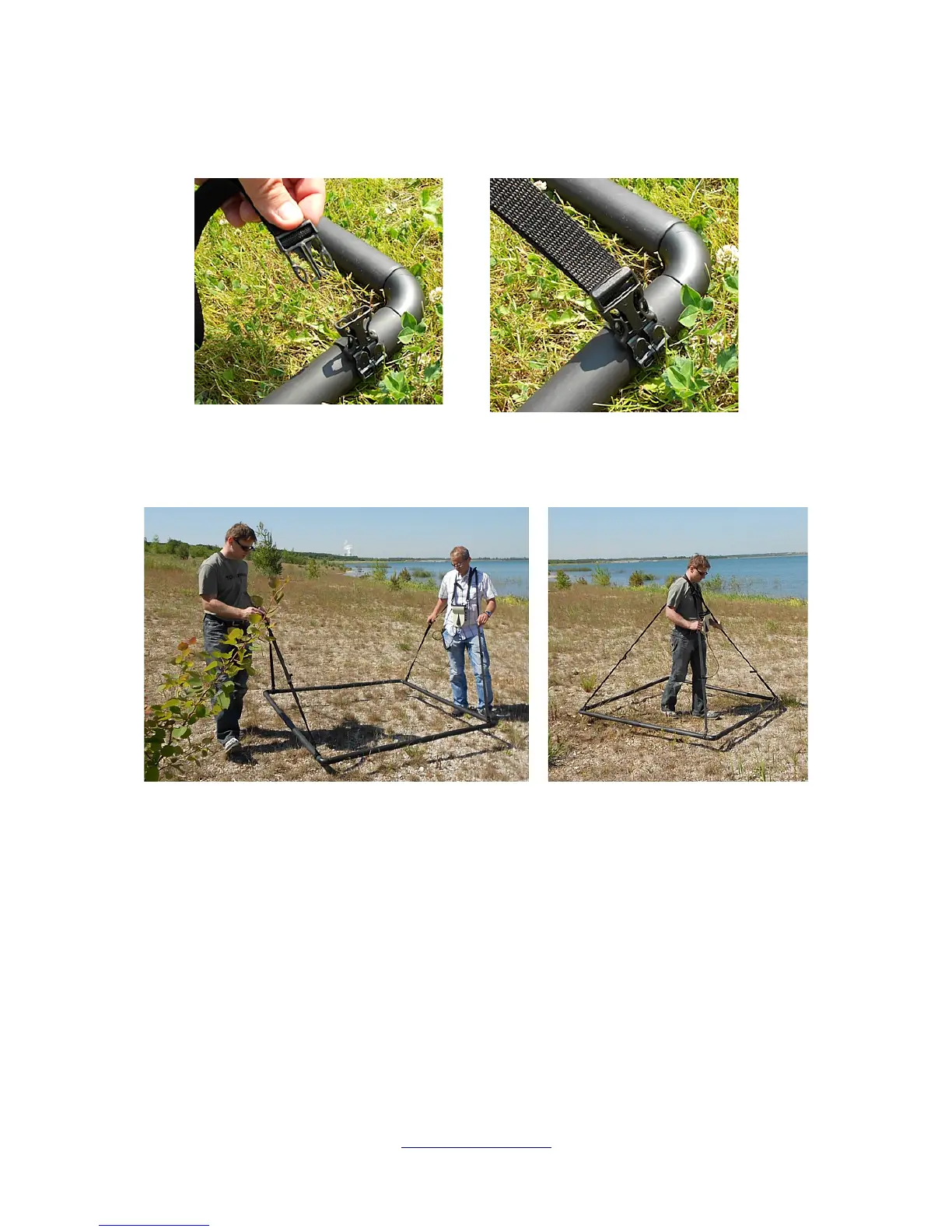

Illustration 4.13: The 150 cm x 150 cm coil can be carried by 1 or 2 people
Illustration 4.12: Connecting the straps
