Black Stone 2260 - Assembly Guide; Exploded View; Parts List

ENGLISH
BLACKSTONEPRODUCTS.COM/SUPPORT
OWNER’S MANUAL | ASSEMBLY GUIDE MODEL: 
ASSEMBLY GUIDE

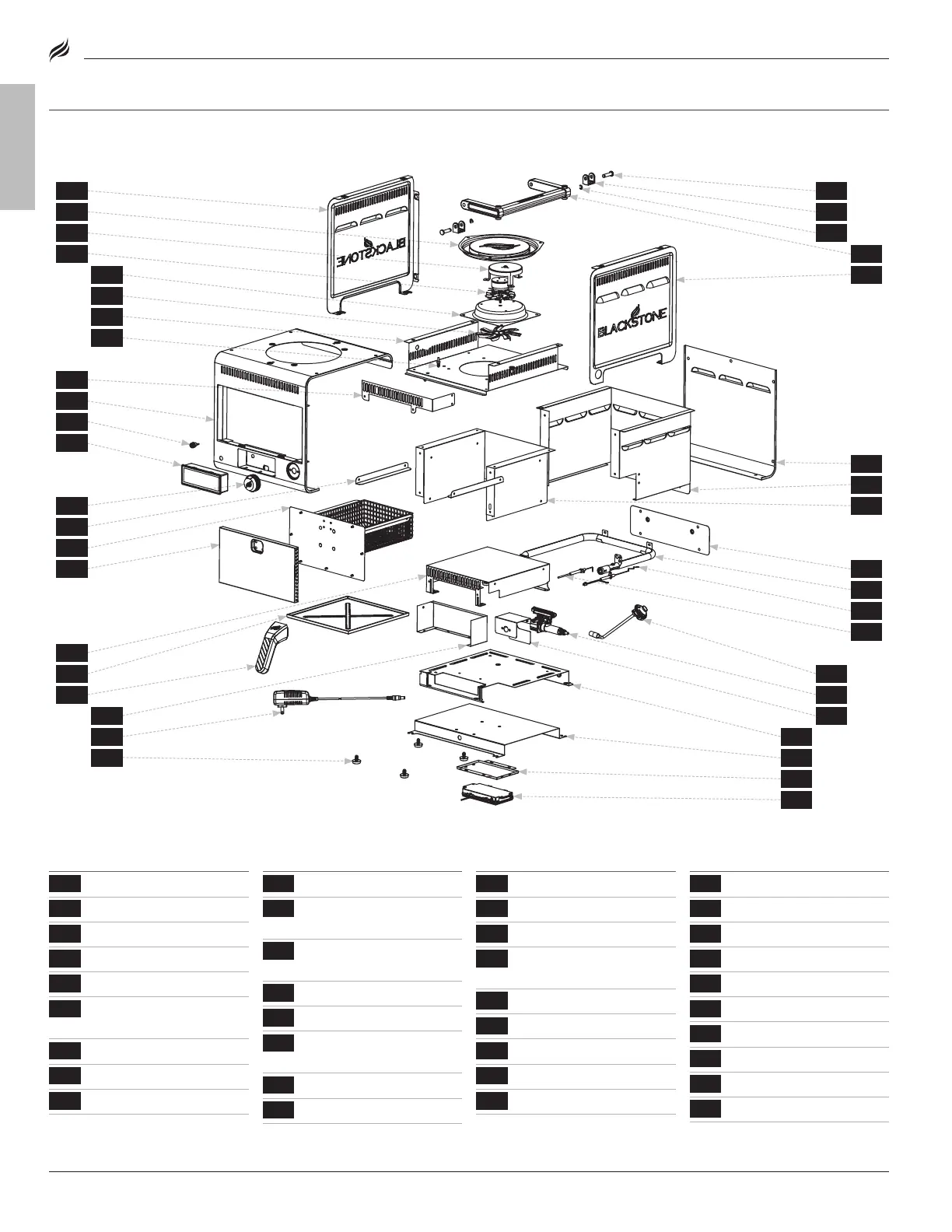

ExPLODED VIEw
PARTS LIST
PARTS
QTY
1.1a
Outer shell

1.1b
Left panel

1.1c
Right panel 
1.1d
Rear panel 
1.1e
Bottom panel 
1.2a
Drawer surround
panel

1.2b
Drawer bale panel 
1.2c
Drawer upper panel

1.2d
Drawer bottom panel

PARTS
QTY
1.3a
Battery case

1.3b
Battery box mounting
plate

1.3c
Battery box heat
shield

1.4a
Fan housing 
1.4b
Motor bracket 
1.4c
Fan assembly (motor
+ small fan blade)

1.4d
Fan blade cover 
1.4e
Large fan blade

PARTS
QTY
1.5a
Controller component

1.5b
DC block

1.5c
Foot bases 
1.6a
Gas rail and safety
valve

1.6b
U burner 
1.6c
Burner support plate 
1.6d
Valve heat shield 
1.7a
Ion sensing needle

1.7b
Ignition needle

PARTS
QTY
1.7c
Thermocouple

1.8a
Air fryer stands

1.8b
T
hermal insulation box

1.8c
Valve cover 
1.9a
Handle 
1.9b
Handle seats 
1.9c
Shear pins 
1.9d
Shear pin rings

2.1
Drawer basket

2.2
Drawer front

1.3c7
4
5 6
1.1a
1.7a
1.4a
1.2b
1.9a
1.5b
1.1d
1.8a
1.4d
1.3a
1.9d
1.6b
1.1b
1.7b
1.4b
1.2c
1.9b
1.5c 1.1e
1.8b
1.4e
1.3b
2.1
1.6c
1.1c
1.7c
1.4c
1.2d
1.9c
1.6a
1.2a
1.8c
1.5a
3
2.2
1.6d

