| OWNER’S MANUALASSEMBLY GUIDEMODEL:

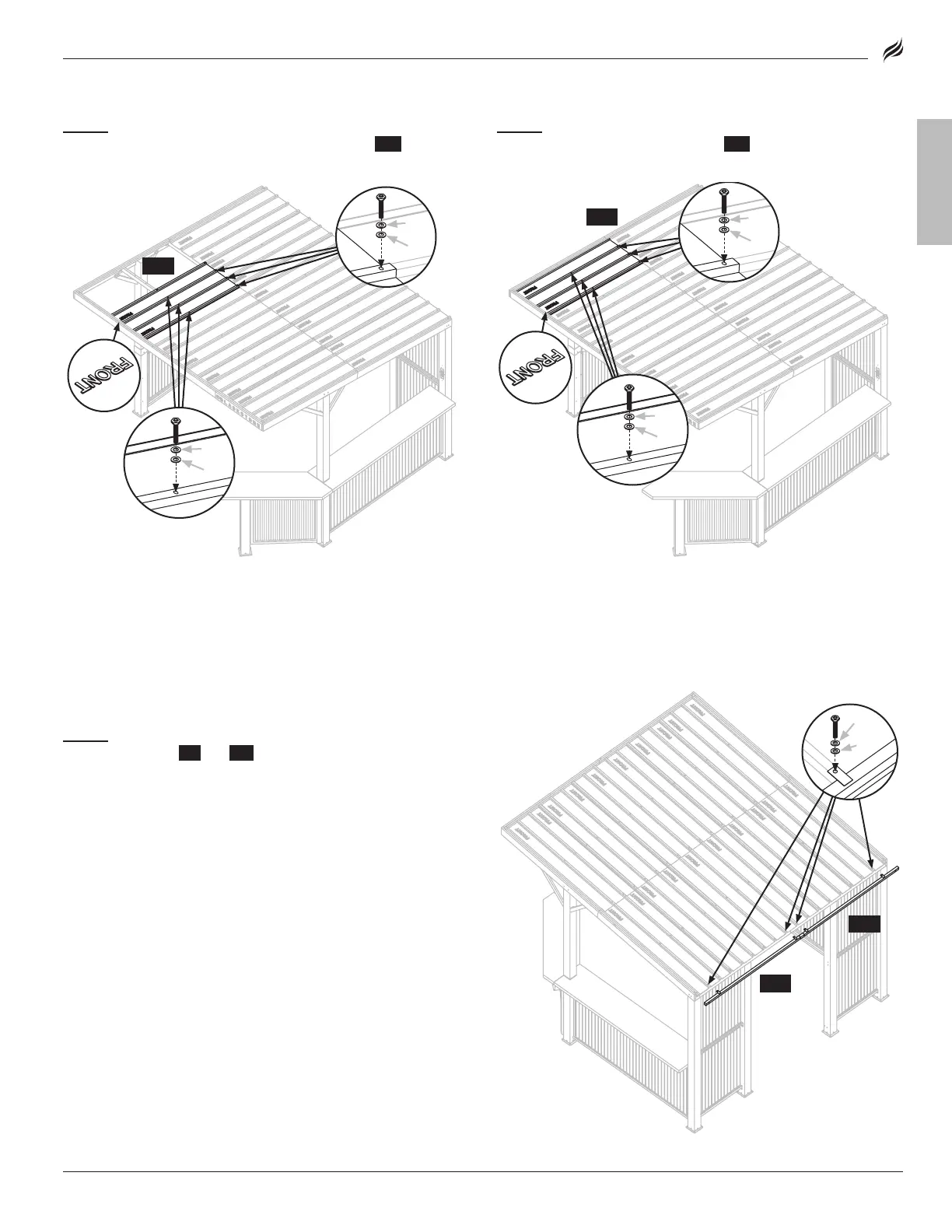

STEP 30
Use six (6) [CC] bolts, six (6) [FF] flat washers, and six
(6) [JJ] sealant washers to attach one (1) roof panel 6 {M6} to the
roof top ribs.
STEP 31
Use six (6) [CC] bolts, six (6) [FF] flat washers, and six (6) [JJ]
sealant washers to attach roof panel 3 {M3} to the roof top ribs.
STEP 32
Use four (4) [CC] bolts and four (4) [FF] flat washers to
attach roof borders {N1} and {N2} the backs of the roof panels.
M6
[FF] × 6
[JJ] × 6
[CC] × 4
[FF] × 4
[JJ] × 4
N2
N1
M3
[FF] × 6
[JJ] × 6
To Next Page
