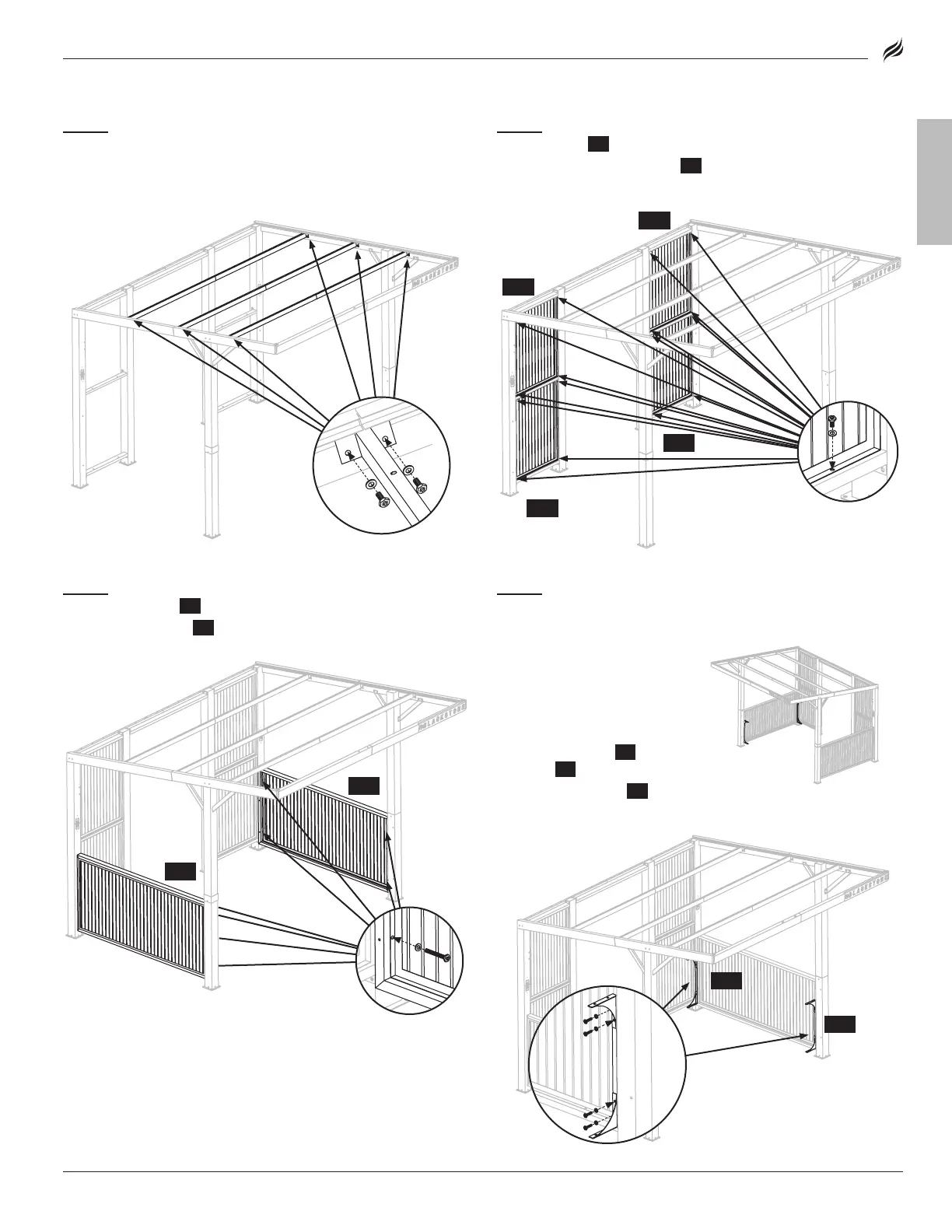

STEP 14
Use four (4) [AA] bolts and four (4) [FF] flat washers to
attach one (1) roof top rib assembly to the left and right cross beam
assemblies.
Repeat with the other two (2) roof top rib assemblies.
STEP 15
Use four (4) bolts and four (4) [FF] flat washers to attach one
(1) side panel 2 {J2} to the rear cross beam assemblies.
Repeat with the other three (3) {J2} side panels and rear cross beam
assemblies.
STEP 16
Use four (4) [DD] bolts and four [FF] flat washers to attach
one (1) side panel 3 {J3} to the outer posts.
Repeat with the other {J3} side panel.
STEP 17
Note: For steps 17-25, the assembler can choose to assemble
the shelves and extended table to either the left or right side of the
BLACKSTONE BAR & GRILL.
Note: DO NOT tighten the bolts
completely until STEP 19 is
complete. Refer to the INSIDE
and UP label.
Use four (4) [BB] bolts and two
(2) [FF] flat washers to attach
one (1) shelf brace 1 {L1} to your
preferred {J3} side panel.
Repeat with the other {L1}
shelf brace.
[FF] × 8
J3
J3
Optional right side
installation
L1
L1
[BB] × 8
[FF] × 8
Optional left side
installation
J2
J2
J2
[FF] × 16
[FF] × 12
