Blackbird HDBaseT - Remote Third-Party Device Control

3
Controlling a Third Party Device Using a Remote Connection

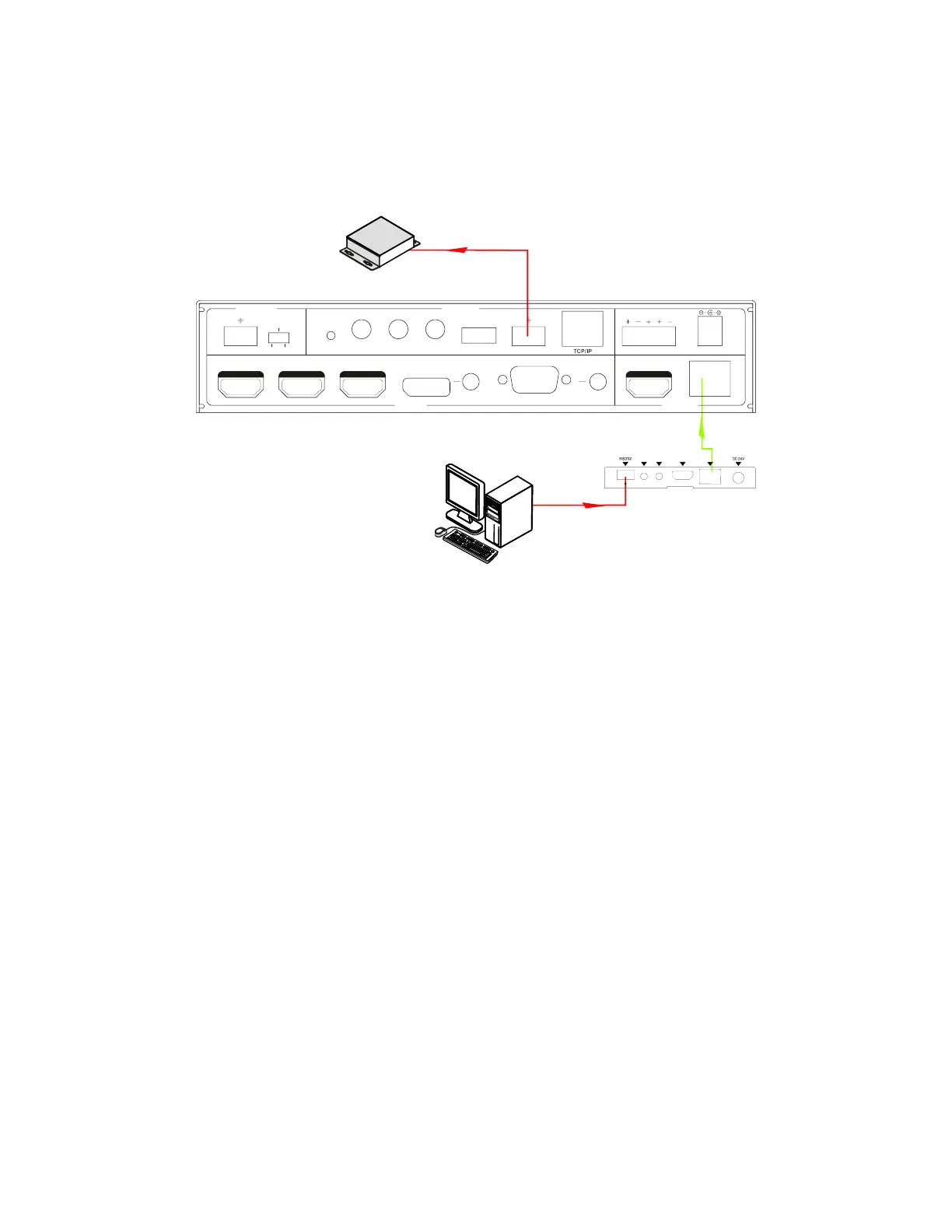

1. Connect your PC and Third Party device to the system as shown in the diagram
below:
2. Send the command
50788% to enable Serial Control Mode 2.
3. Send your commands as desired, either for the Scaler/Switch or the Third Party
device.
PC
48V LINE IR EYEIR IN IR OUT
MIC INPUT
MIC
FIRMWARE AUDIO OUT
L R
RES RESET
RS232
Tx
Rx
L R
INPUTS OUTPUTS
3-HDM I
2-HDM I1-HDMI / MHL 4- DP 5-VGA
HDMI
HDBT
CONTROL
DC 24V
I R
O U
T
I R
I N
H
D M
I O U
T
HDBT IN
Tx Rx
HDBaseT Receiver
3rd party
