Mini Converter Sync Generator
34
Blackmagic Mini Converter Sync Generator
Mini Converter Sync Generator includes 6 crystal stabilized video reference outputs for locking your video
equipment to a common reference signal. Sync Generator produces high definition tri-sync or standard
definition blackburst signals and is perfect for small studios and outside broadcasts.

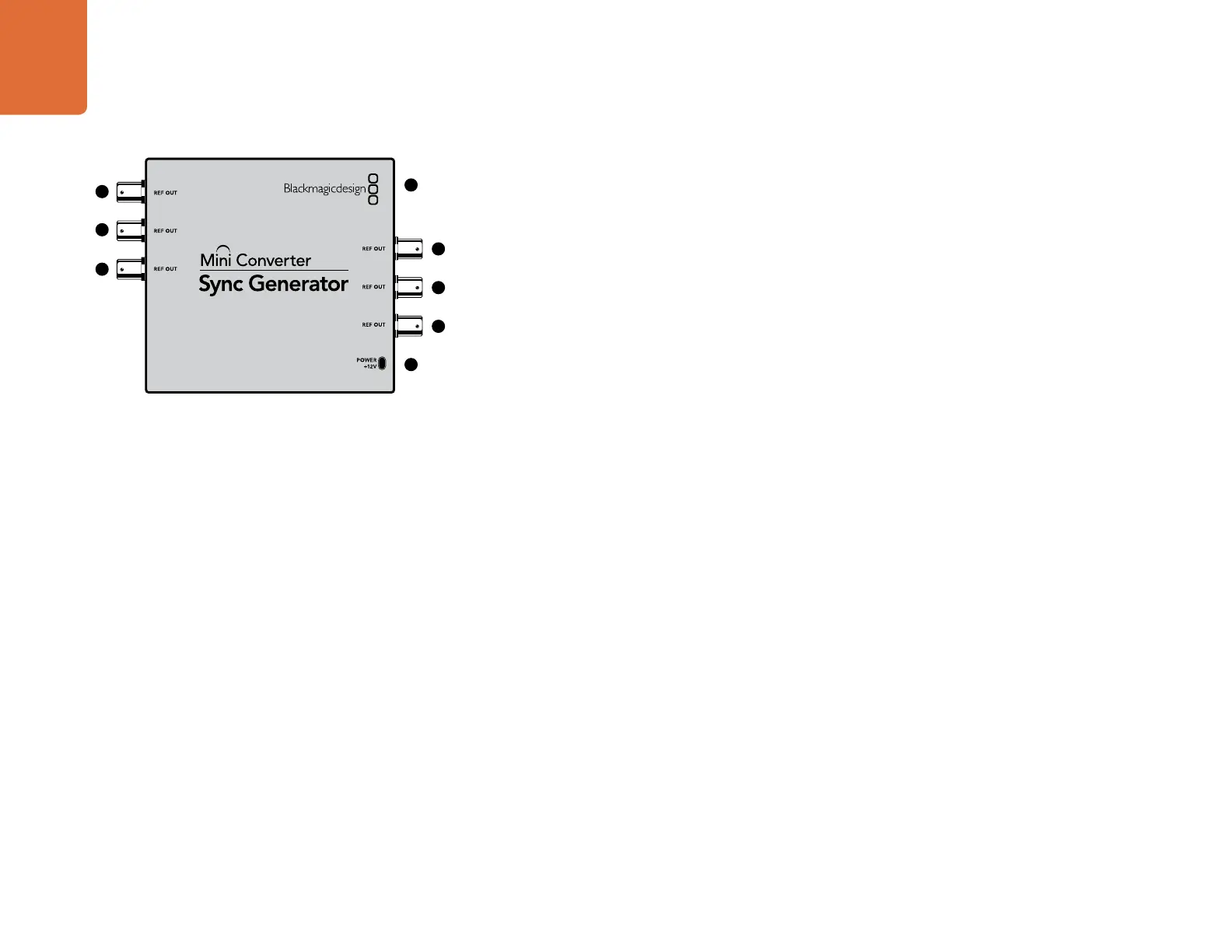

Connectors
1, 2, 3, 4, 5 and 6. REF OUT
Reference video outputs on BNC connectors.
7. MINI-B USB PORT
Connects to the Converter Utility software via your Mac OS X or Windows computer. The Mini Converter’s
internal software is also updated using the USB port.
8. POWER +12V
12 volt power supply input.
4
5
7
6
8
1
2
3
Mini Converter Sync Generator
