Mini Converter SDI to Analog
7
Blackmagic Mini Converter SDI to Analog
Convert from SD/HD-SDI to analog component, NTSC and PAL video out, plus balanced AES/EBU and
analog audio out. Your converter easily connects to analog video monitors and decks such as Betacam SP
and VHS. A hardware down converter lets you connect HD-SDI video to SD analog equipment. You can
even output pairs of analog audio from 16 de-embedded SDI audio channels.

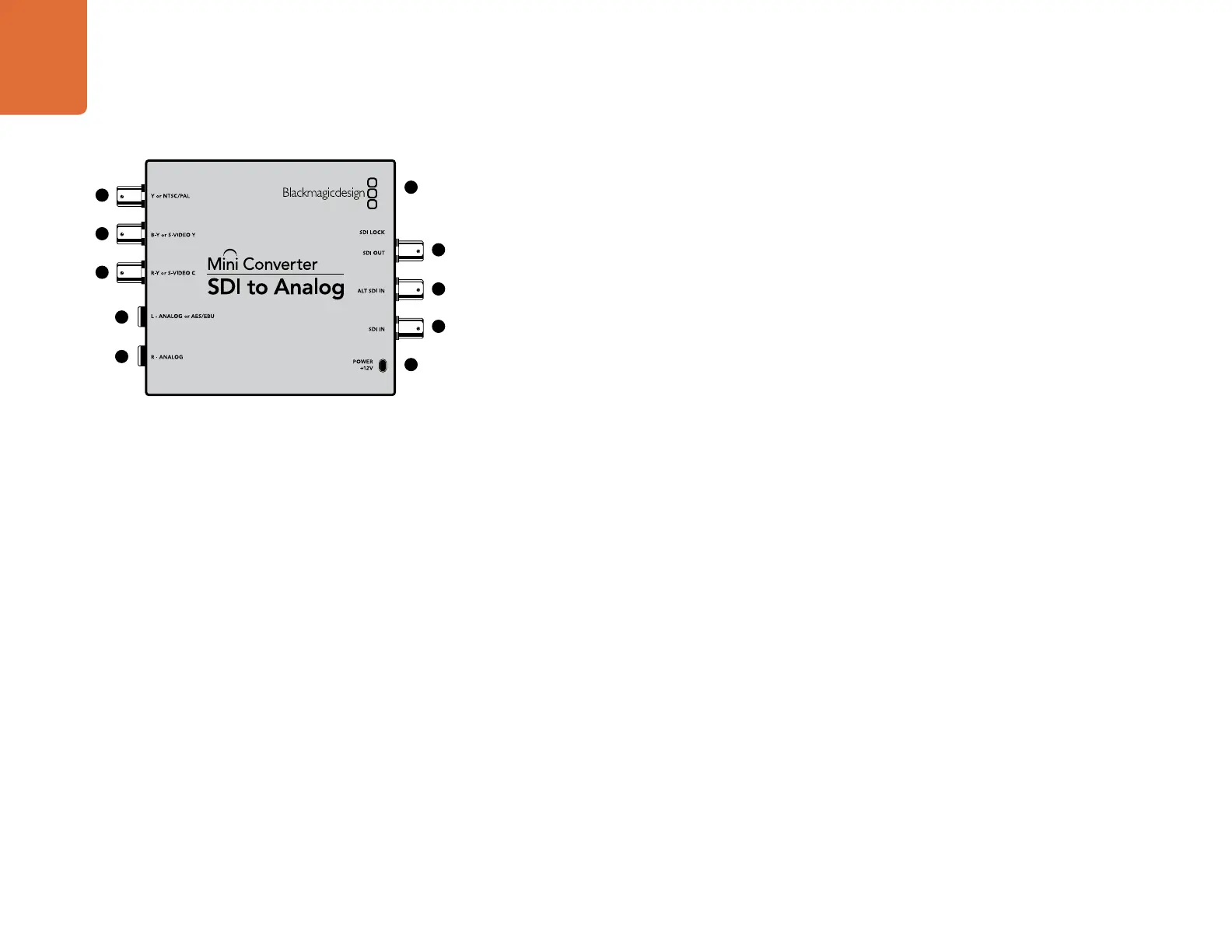

Connectors
1. Y or NTSC/PAL
Analog component Y, or composite NTSC/PAL output on a BNC connector.
2. B-Y or S-VIDEO Y
Analog component B-Y, or S-Video Y output BNC connector.
3. R-Y or S-VIDEO C
Analog component R-Y, or S-Video C output BNC connector.
4. L - ANALOG or AES/EBU
Balanced left channel analog audio, or AES/EBU digital audio output on a 1/4" TRS connector.
5. R - ANALOG
Balanced right channel analog audio output 1/4" TRS connector.
6. MINI-B USB PORT
Connects to the Converter Utility software via your Mac OS X or Windows computer. The Mini Converter’s
internal software is also updated using the USB port.
7. SDI OUT
SDI video output on a BNC connector.
8. ALT SDI IN
Redundant SDI input is provided as an optional back up.
9. SDI IN
Primary SDI input.
10. POWER +12V
12 volt power supply input.
