Mini Converter SDI Multiplex 4K
38
Blackmagic Mini Converter SDI Multiplex 4K
Your Mini Converter SDI Multiplex 4K can perform the following conversions:
 Distribute an SD/HD and 6G-SDI signal to all four outputs.
 Distribute a dual link HD-SDI signal to all four 3G-SDI outputs.
 Single link 3G-SDI to dual link HD-SDI. The dual link output is distributed on both pairs of outputs.
 Single link 6G-SDI to dual link 3G-SDI or Quad link 1.5G SDI.
 Quad link HD-SDI 4K to single link 6G-SDI, or dual link 3G-SDI 4K so you can connect existing Ultra
HD 4K sources to dual link Ultra HD 4K displays. The dual link output is distributed on both pairs
of outputs.
 Dual link 3G-SDI to single link 6G-SDI.
 Dual link 3G-SDI 4K to quad link HD-SDI 4K so you can connect the latest dual link Ultra HD 4K
sources to existing quad link Ultra HD 4K displays.

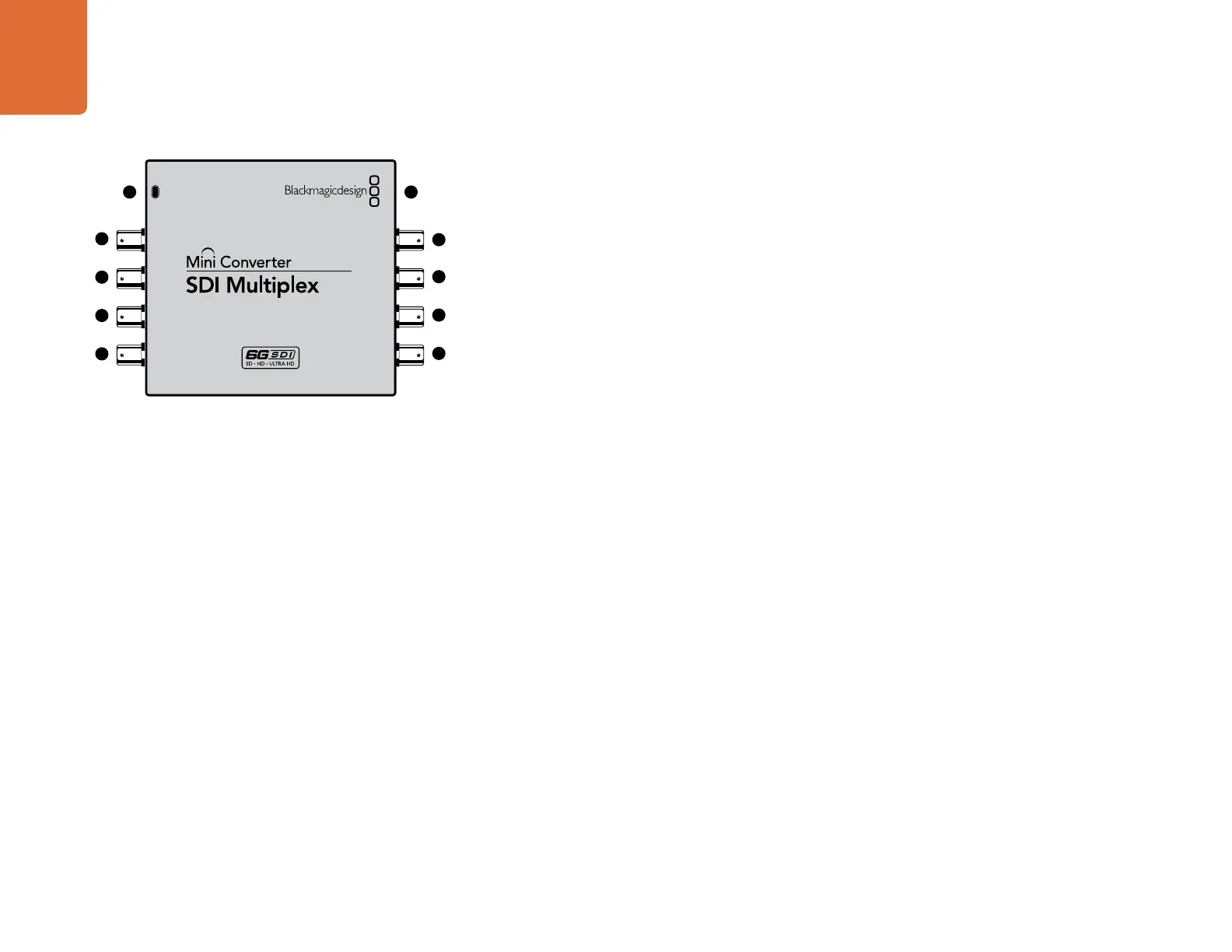

Connectors
1. POWER +12V
12 volt power supply input.
Supported formats for each SDI input:
2. SDI IN 1
 SD/HD-SDI
 Single link 3G-SDI
 Single link 6G-SDI
 Dual link HD-SDI channel A
 Dual link 3G-SDI 4K channel A
 Quad link HD-SDI 4K channel A
3. SDI IN 2
 Dual link HD-SDI channel B
 Dual link 3G-SDI 4K channel B
 Quad link HD-SDI 4K channel B
4. SDI IN 3
 Quad link HD-SDI 4K channel C
5. SDI IN 4
 Quad link HD-SDI 4K channel D
SDI IN 1
SDI IN 2
SDI IN 3
SDI IN 4
SDI OUT 1
SDI OUT 2
SDI OUT 3
SDI OUT 4
4K
4K
1
2
3
4
5
7
8
9
6
10
