computer using a Thunderbolt 3 cable. Connecting to a Thunderbolt 2 port on your computer
via a Thunderbolt 3 to Thunderbolt 2 adapter is not supported on bus-powered products like
UltraStudio HD Mini.

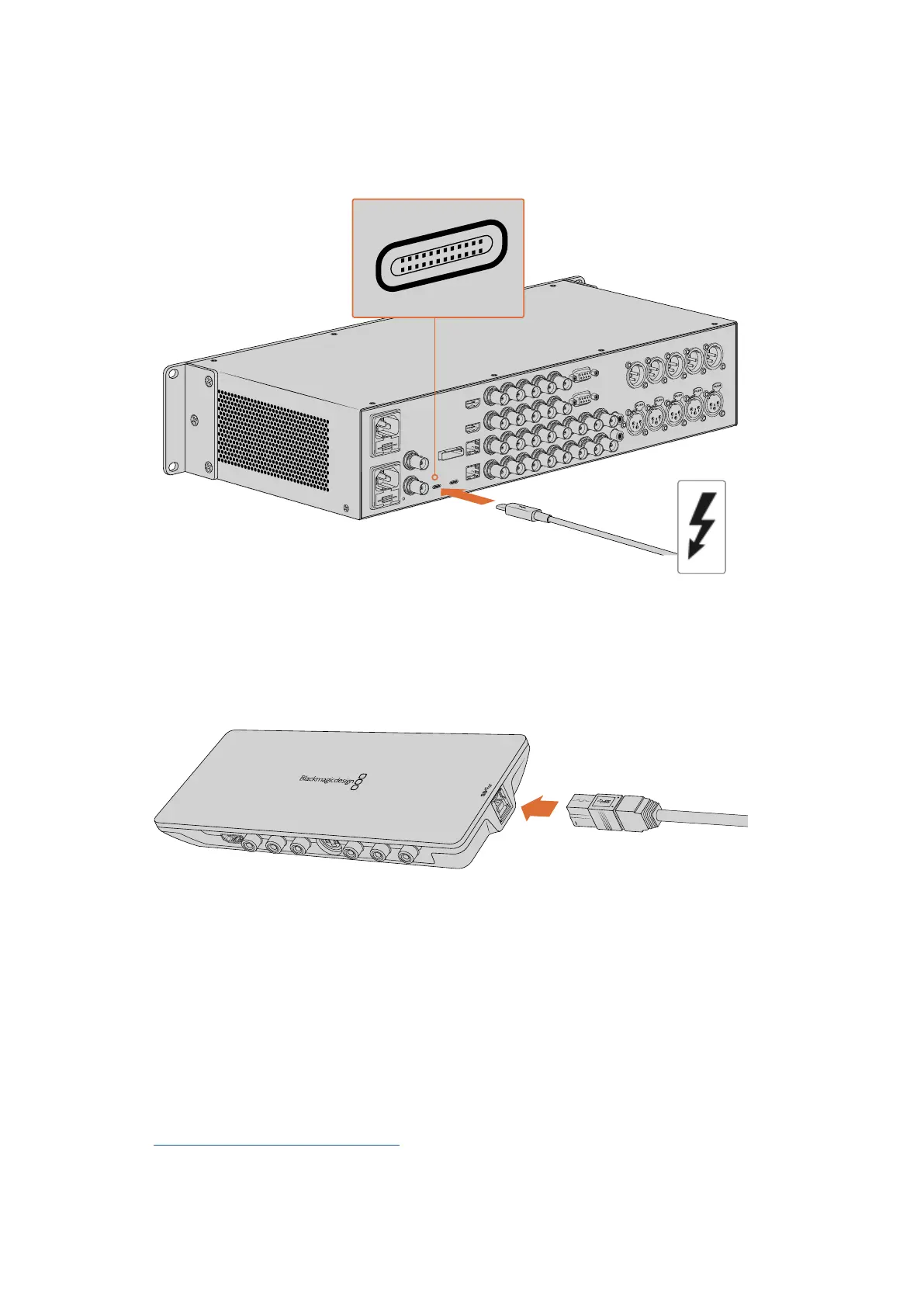

Make sure your computer is Thunderbolt 3 compatible by looking for the
Thunderbolt icon near its USB-C connector, as shown on the right.
Connecting via USB 3.0
Connect a SuperSpeed USB 3.0 cable into the USB 3.0 port on the unit. Plugthe other end of
the cable into your computer’s USB 3.0 port.
HDMI IN
Y IN
Pb IN
Pr IN
S-VIDEO IN
VIDEO IN
L
AUDIO IN
AU DIO O UT
VI DEO O UT
S- VID EO OU T
Pr OU T
Pb OU T
Y OUT
HD MI OU T
R
Connecting a SuperSpeed USB 3.0 cable to Intensity Shuttle
Connecting via PCIe
Blackmagic Design PCIe cards plug into a PCIe slot in your computer. Check the information
printed on your card’s box to determine the number of PCIe lanes your card requires.
Forexample, depending on your PCIe card, it will require a x1, x4 or x8 PCIe slot.
It’s worth noting that you can insert PCIe cards into higher capacity slots than they require.
Forexample, a x4 lane PCIe card can be inserted into a x16 lane PCIe slot, though not the other
way around.
If you can’t find the information you need on the box, you can find the number of lanes
yourcard requires, plus other helpful information about your card, in the tech specs at
www.blackmagicdesign.com/products
7Getting Started
