COMPONENTS AND CONTROLS

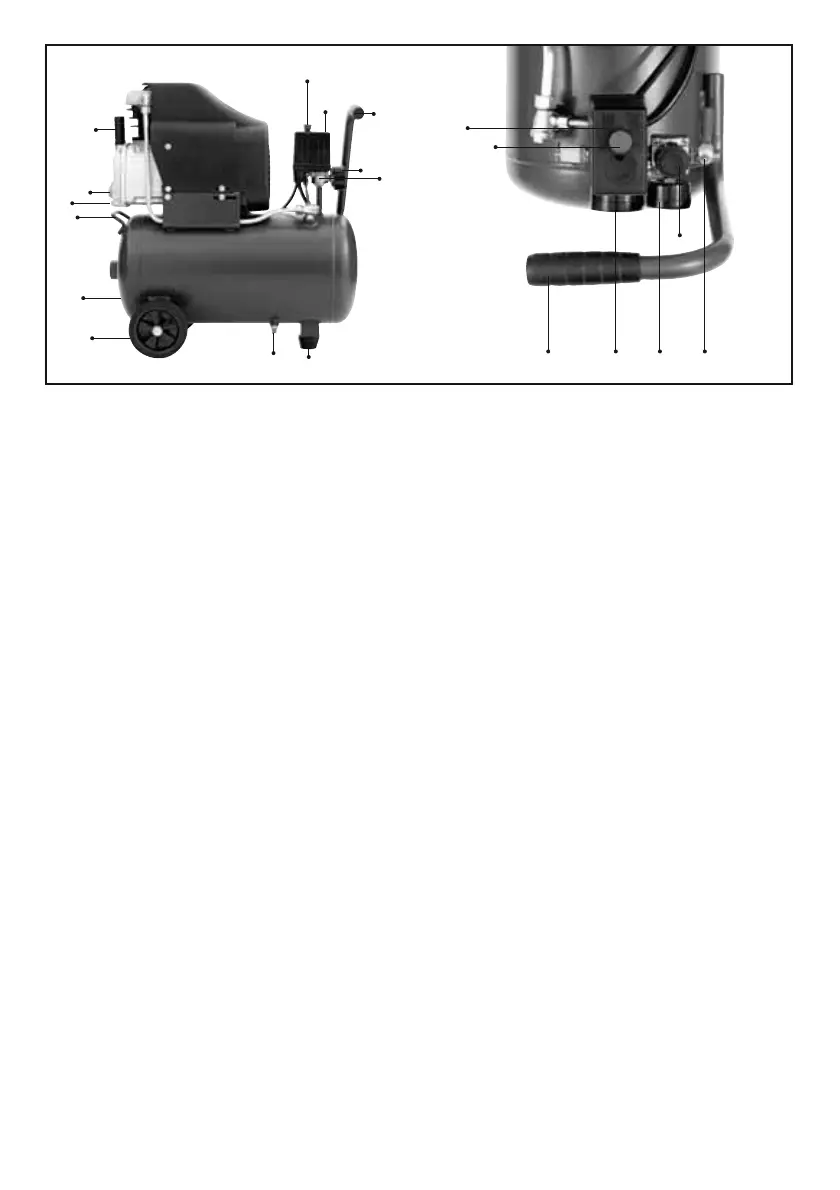

Pic. 1
1.Oil fill and breather
2. Oil sight glass
3. Oil drain bolt
4. Rear handle
5. Tank
6. Wheels
7. Tank drain tap
8. Rubber stopper
9. Safety Valve
10. Tank pressure gauge - large
11. Front handle
12. Pressure switch
13. On / Off button – red colour
14. Outlet pressure gauge - small
15. Air tap – Air outlet
16. Outlet pressure regulator
17. Air filter – metal (Not shown)
18. Transport Plug (Not shown)
