HG-CF-921 Rev. L - 28.07.05 Page 11

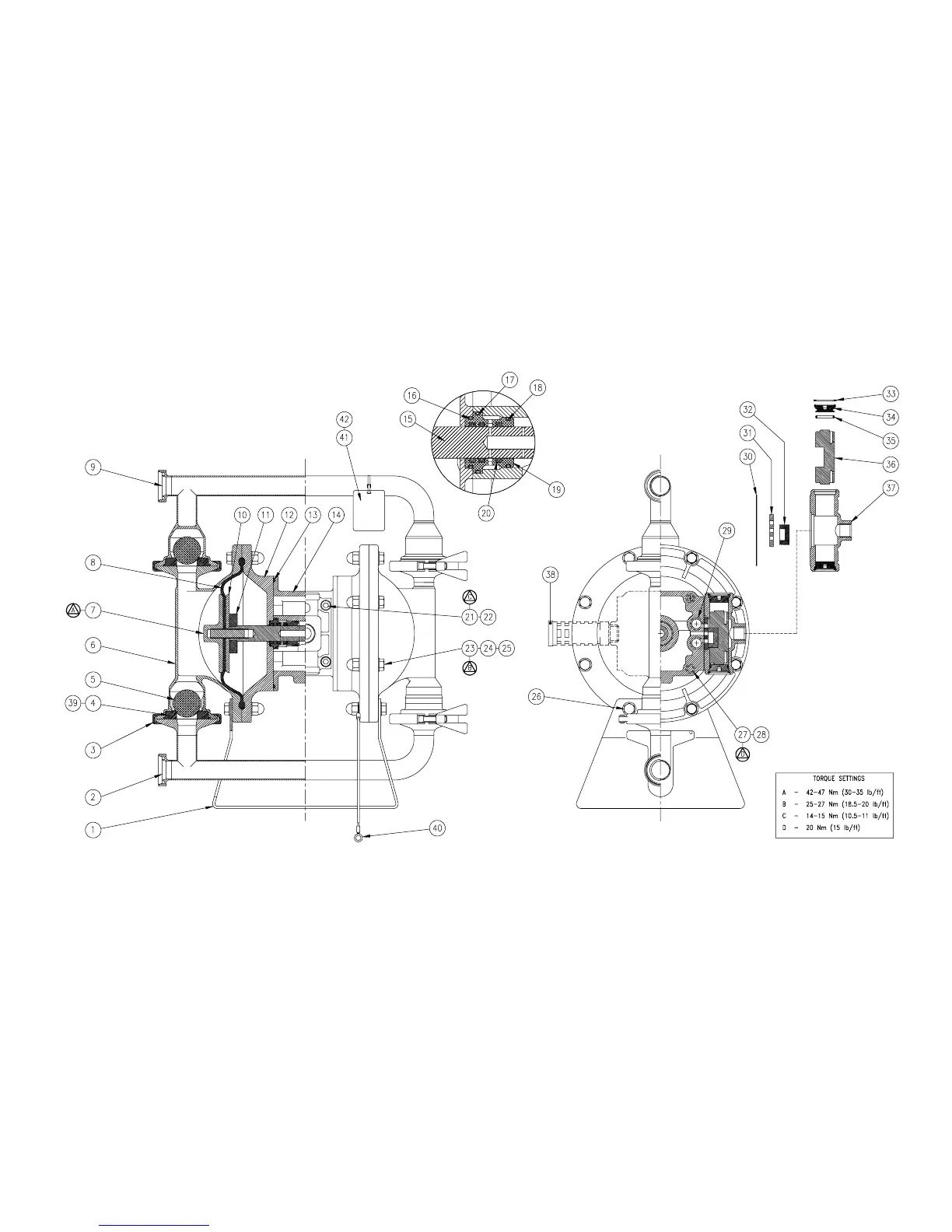

Sectional General Assembly :- B25 Hygienic Pump.
Refer to page 10, Parts List table for Item Ref. Nos.
