Blagdon Pump B25 - Pump Specifications and Diagrams; General Assembly Drawing; Performance Curve

HG-CF-921 Rev. L - 28.07.05 Page 3

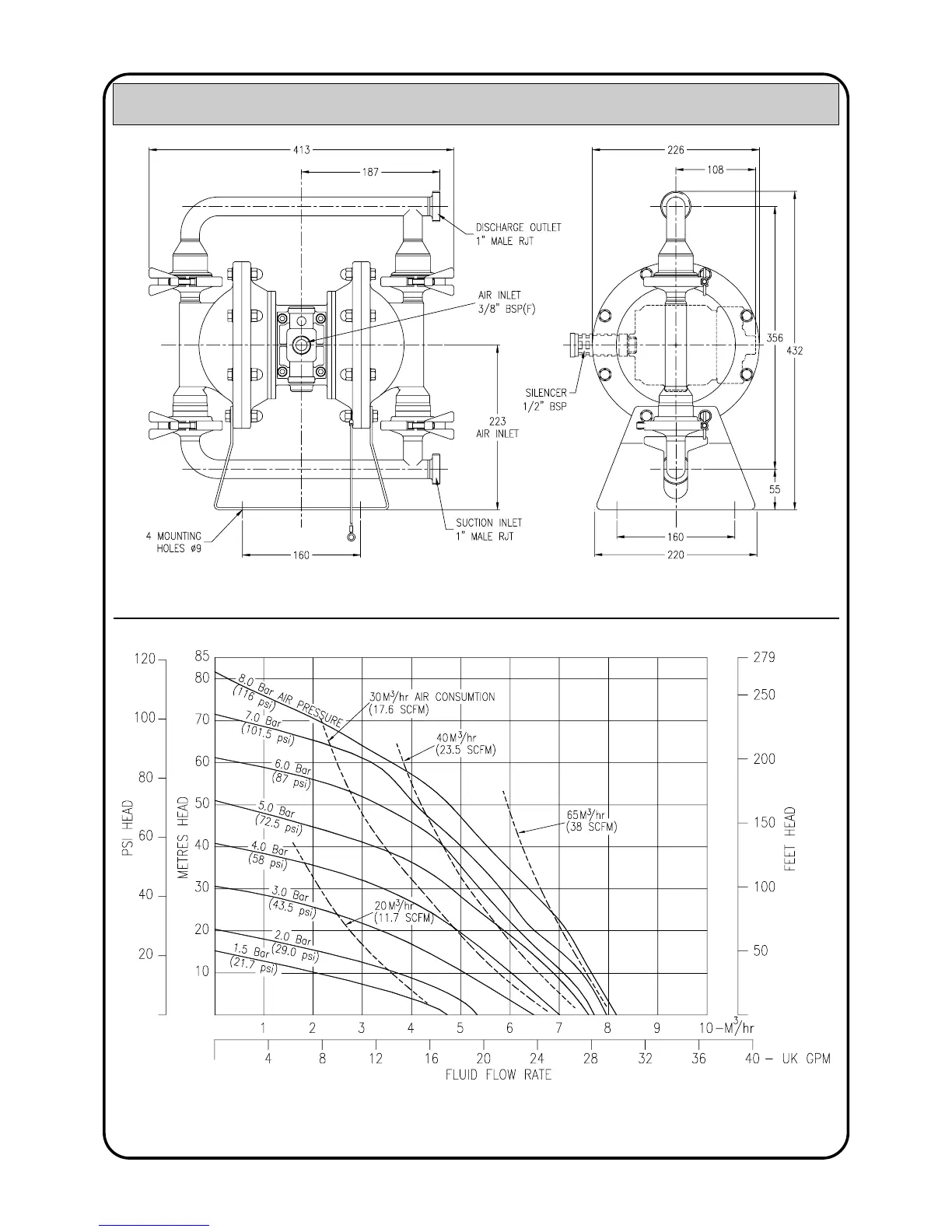

GA Drawing & Performance Curve
GA Drawing & Performance CurveGA Drawing & Performance Curve
GA Drawing & Performance Curve
B25 / X25 Hygienic Performance Curve
Performance based on water at ambient temperature
General Assembly :- B25 / X25 Hygienic Models, all dimensions +/- 2mm
