2. REPLACEMENT OF BEATER SHAFT AND SHAFT SEAL. NOTE: TRANS-
MISSION NEED NOT BE REMOVED FROM MIXER IF ONLY BEATER
SHAFT OR SEAL NEED REPLACEMENT.

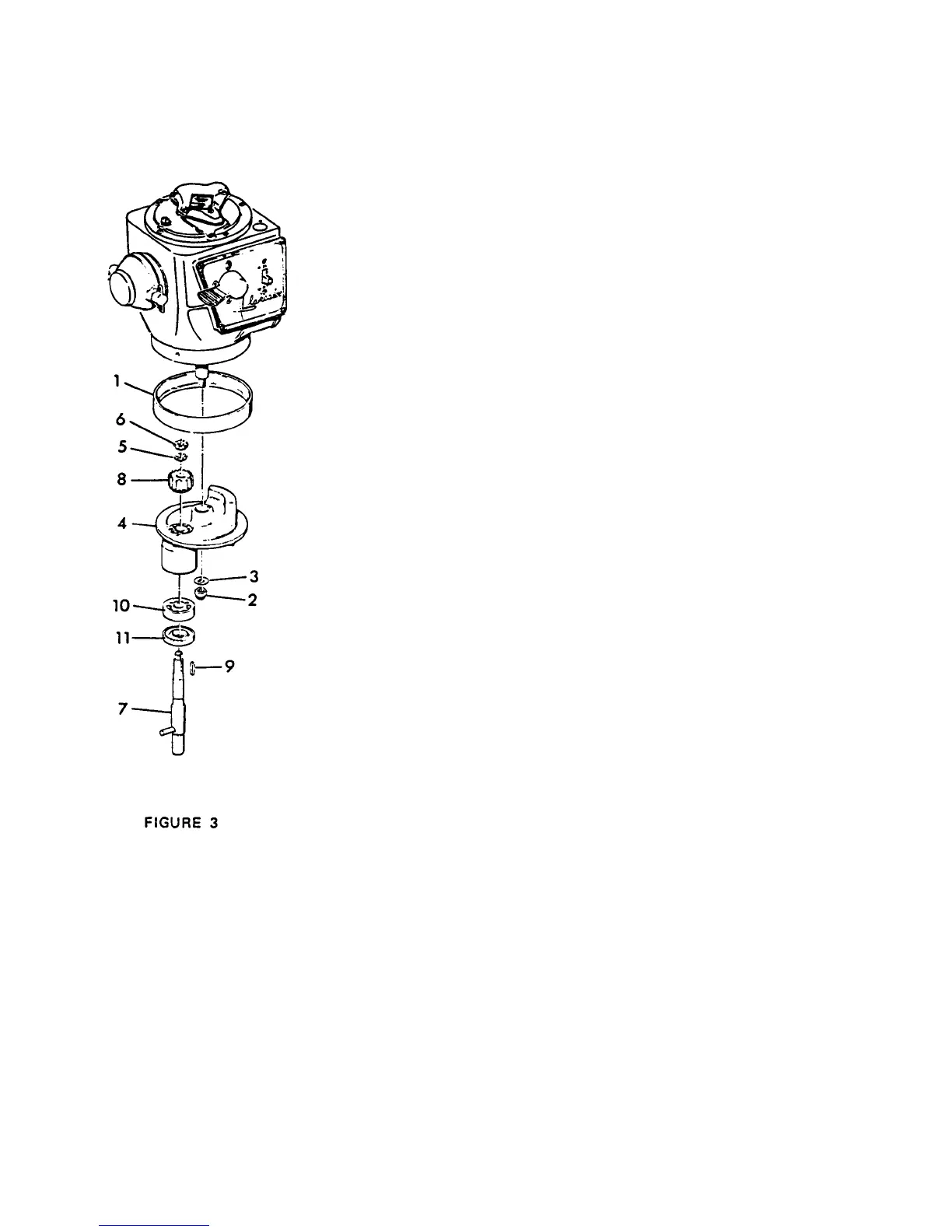

A. INSERT SCREWDRIVER UNDER DRIP RING (1, FIGURE 3) AND PRY
OFF RING. UNSCREW SELF-LOCKING NUT (2) AND REMOVE WITH
WASHER (3): INSERT SCREWDRIVER BETWEEN TRANSMISSION
HOUSING AND BEATER SHAFT SUPPORT (4). REMOVE SUPPORT
AND SHAFT AS AN ASSEMBLY.
B. BEND TINES OF LOCKWASHER (5) OUT OF SLOTS IN LOCKNUT (6).
REMOVE LOCKNUT AND WASHER. SECURE SUPPORT (4) IN ARBOR
PRESS AND PRESS SHAFT (7) THROUGH THE BOTTOM OF SUPPORT.
GEAR (8) KEY (6) WILL COME OFF SHAFT AS IT IS PRESSED OUT.
PRESS BEARING (10) AND SEAL (11) OFF SHAFT.
C. INSTALL BEARING (10) ON SHAFT (7) AND PRESS INTO SUPPORT
(4). INSTALL GEAR (8) WITH KEY (9) AND SECURE WITH LOCKNUT
(6) AND LOCKWASHER (5). BEND TINES OF LOCKWASHER INTO
LOCKNUT SLOTS.
D. COAT NEW SEAL (11) WITH LIQUID GASKET MATERIAL ON OUTER
EDGE AND SLIDE OVER SHAFT (CUP SIDE UP AGAINST BEARING
(10) AND SEAT IN SUPPORT (4).
E. SLIDE SUPPORT AND SHAFT SUBASSEMBLY ON END OF SUN
SHAFT AND SECURE WITH SELF-LOCKING NUT (2) AND WASHER
(3). REINSTALL DRIP RING (1) BY PRESSING RING FIRMLY INTO
SLOT AROUND RING GEAR.
16
