3. REMOVAL OF SUN SHAFT. INTERMEDIATE & PINION
SHAFT AS SUBASSEMBLY.

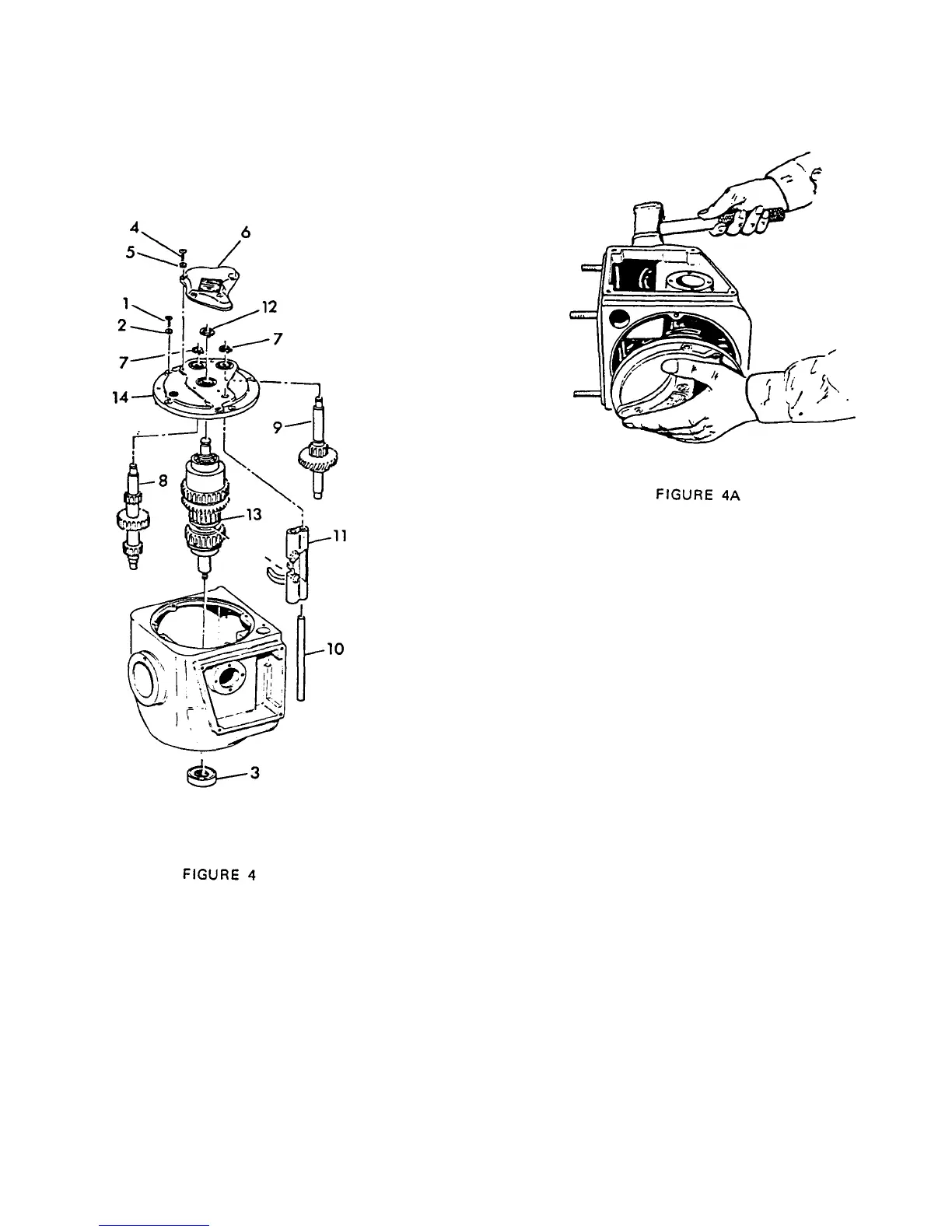

A. REMOVE COVER SCREWS (1, FIGURE 4) AND
WASHERS (2).
B. LAY TRANSMISSION ON ITS SIDE AND WITH A LEAD OR
RUBBER MALLET LIGHTLY TAP THE END OF SUN SHAFT
(SEE FIGURE 4A). COVER WILL SEPARATE FROM
TRANSMISSION HOUSING. STAND TRANSMISSION UP
AND LIFT COVER AND SHAFTS OUT OF HOUSING.
NOTE: ROTATE GEARS AS NECESSARY TO CLEAR
TRANSMISSION HOUSING.
C. USING A PIPE AND MALLET, DRIVE OIL SEAL (3,
FIGURE 4) OUT OF BOTTOM OF TRANSMISSION
HOUSING. WHEN INSTALLING NEW SEAL, COAT OUTER
EDGE OF SEAL AND PRESS INTO HOUSING WITH METAL
SIDE OF SEAL TOWARD MIXING BOWL (DOWN).
D. REMOVE SCREWS (4), WASHERS (5) AND COVER (6).
REMOVE SNAP RINGS (7) AND PULL INTERMEDIATE (8)
AND PINION SHAFT (9) ASSEMBLIES TOGETHER, FROM
COVER.
E. PULL ROD (10) OUT OF COVER TO REMOVE SHIFTER
YOKE (11).
F. REMOVE SNAP RING (12). WITH A CENTER PUNCH. TAP
SUN SHAFT ASSEMBLY (13) OUT OF COVER (14).
17
