Installation
For LPG Connection

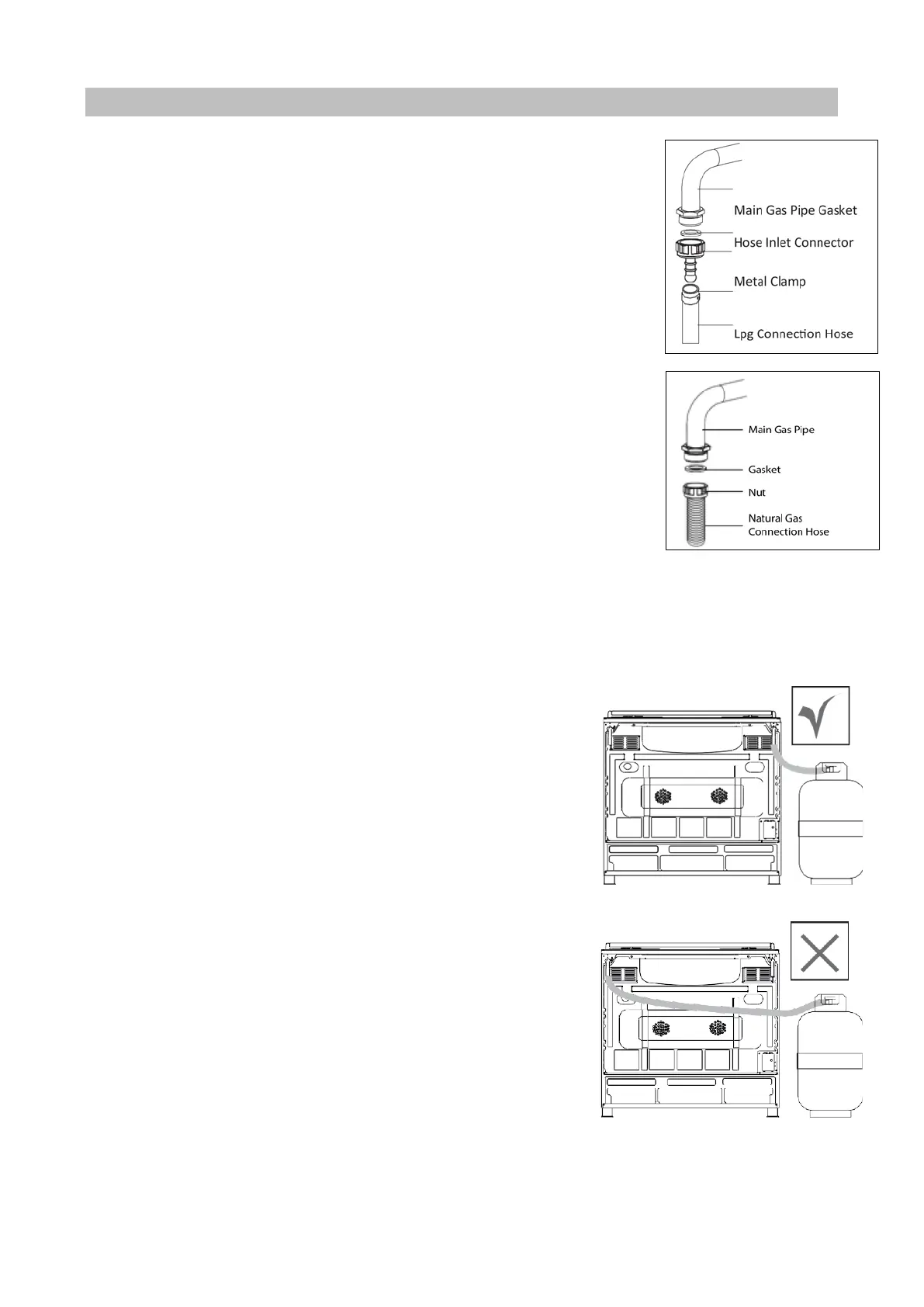

For LPG (cylinder) connection, affix a metal clamp on the hose coming
from LPG cylinder. Affix an edge of the hose on hose inlet connector
behind the appliance by pushing to end through heating the hose in boiled
water. Afterward, bring the clamp towards end section of the hose and
tighten it with screwdriver. The gasket and hose inlet connector required
for connection is as the picture shown below.
NOTE: The regulator to be affixed on LPG cylinder should have 300
mmSS feature.
For Natural Gas Connection
WARNING: Natural gas connection should be done by an authorized
service.
For natural gas connection, place a gasket in the nut at the edge of the
natural gas connection hose. To install the hose on the main gas pipe,
turn the nut. Complete the connection by doing a gas leakage control.
Gas hose passage way
Connect the appliance to the gas piping tap in the shortest possible route and in a way that
ensures no gas leakage will occur.
In order to carry on a tightness and sealing safety check ensure that the knobs on the control panel
are closed and the gas cylinder is open.
WARNING: While performing a gas leakage check, never use any
kind of lighter, match, cigarette or similar burning substance.
Apply soap bubbles on the connection points. If there is any kind
of leakage then it will cause bubbling.
While inserting the appliance into place ensure that it is on the
same level with the benchtop. If required, adjust the legs in order
the make level with the benchtop.
Use the appliance on a level surface and in a well ventilated
environment.
WARNING: Before placing the appliance, check that the local
distribution conditions (gas type and pressure) conform to the
product settings.
