3.12 Abrasive sealing
The front seal system comprises of three polyurethane seals to ensure
that good fit is maintained between the side seals and the work surface
at the bottom. The seals are located in a seal box at the front of the
blast opening of the cabinet and are clamped into place by bolts and
plates.
To obtain access to front seal system:
1. Make sure that the power unit is stopped.
2. Allow the machine to tip backwards until the rear of the machine
rests on the surface; this will lift the front of the machine and
gives access to the front seal locating box.
3. Unscrew the bolts at the front of the seal locating box, this
releases the clamp system holding the seals. Pull worn seals out
of the locating box.
4. Fit new seals, each interspaced with a steel strip. Tighten the
bolts again.
5. Start up and commence work.

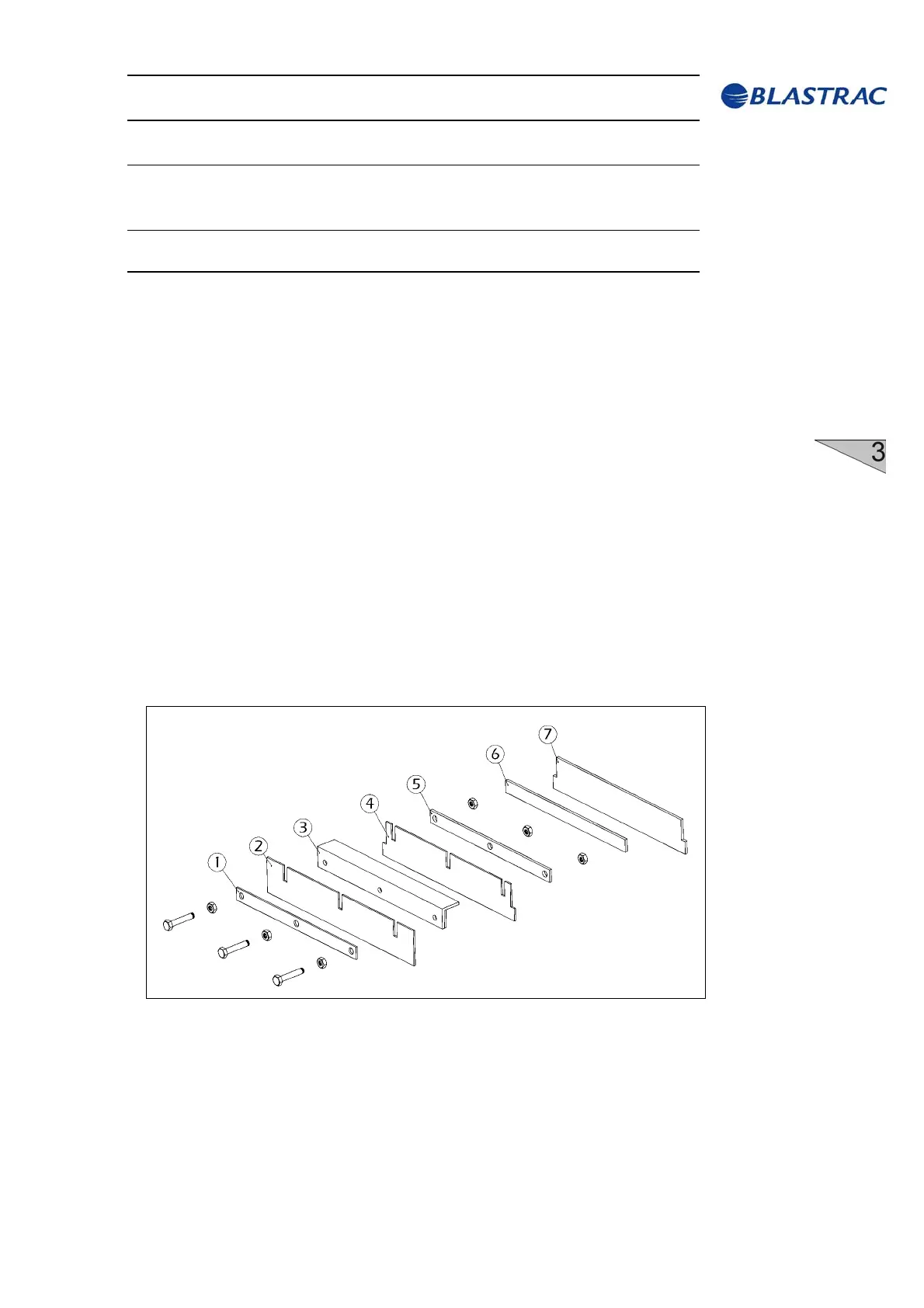

Fig. 3.9
1 Front locating plate outer 5 Locating plate inner
2 Front skirt outer 6 Fixing plate
3 Front seal angle (machine) 7 Front skirt inner
4 Front skirt intermediate
