EBE 350 E Operating Instructions
General
The air stream flows through the rebound plenum and carries
along abrasive and dust. In doing so the air stream cools the
abrasive and the housing walls.

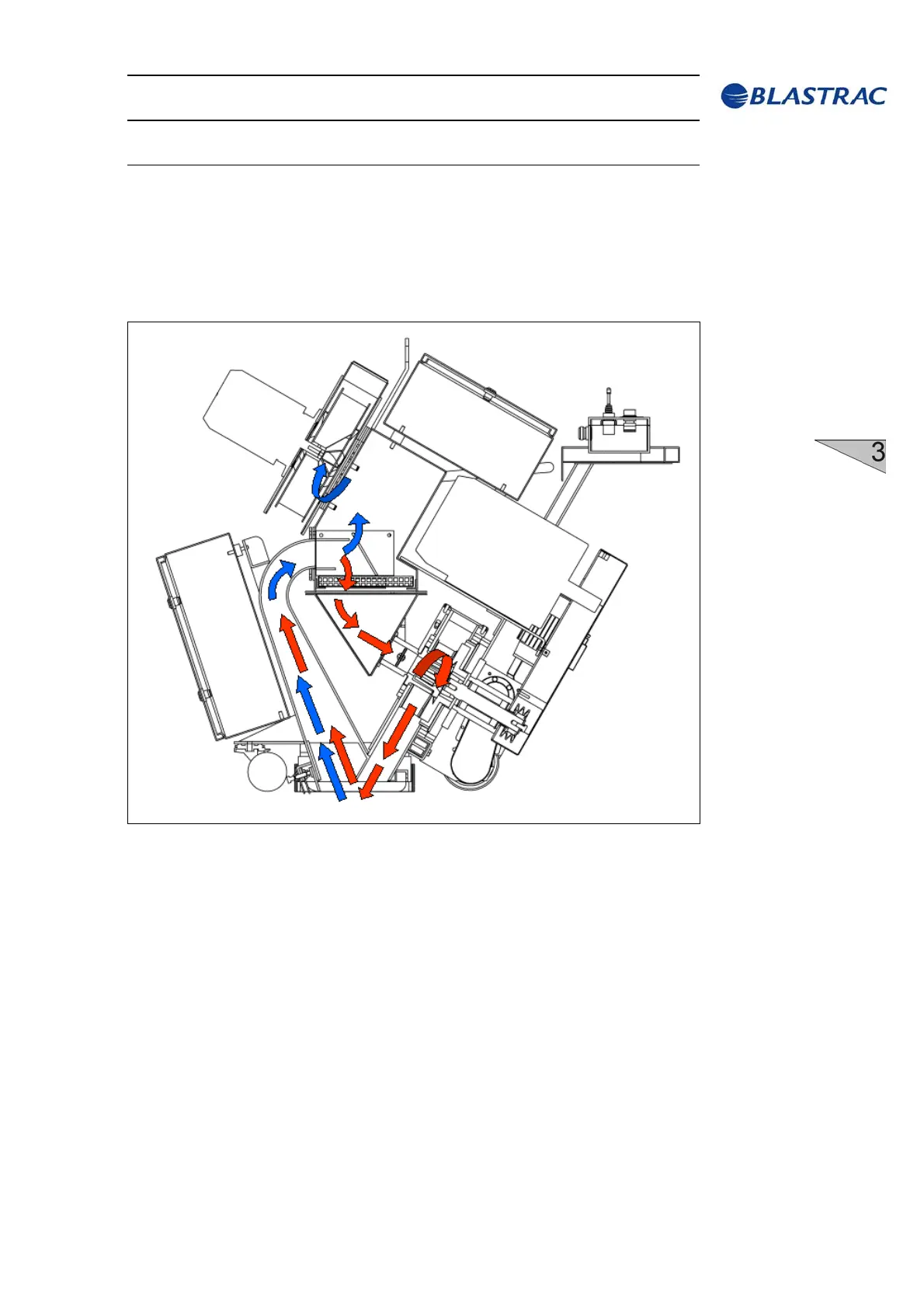

Fig. 3.12
The air enters the separator, separates the fine dust from the
abrasive and transports the dust to the outlet opening. The
separator door must be closed airtight in order to grant an optimum
performance of the separator.
The air stream then flows through the approx. 20 m (up to max. 90
m) long flexible dust hose taking dust and fine particles with it.
The air stream now enters the filter chamber of the filter unit
where the dust and the fine particles are separated from the air.
The cleaned air is then fed into the environment again.
17
