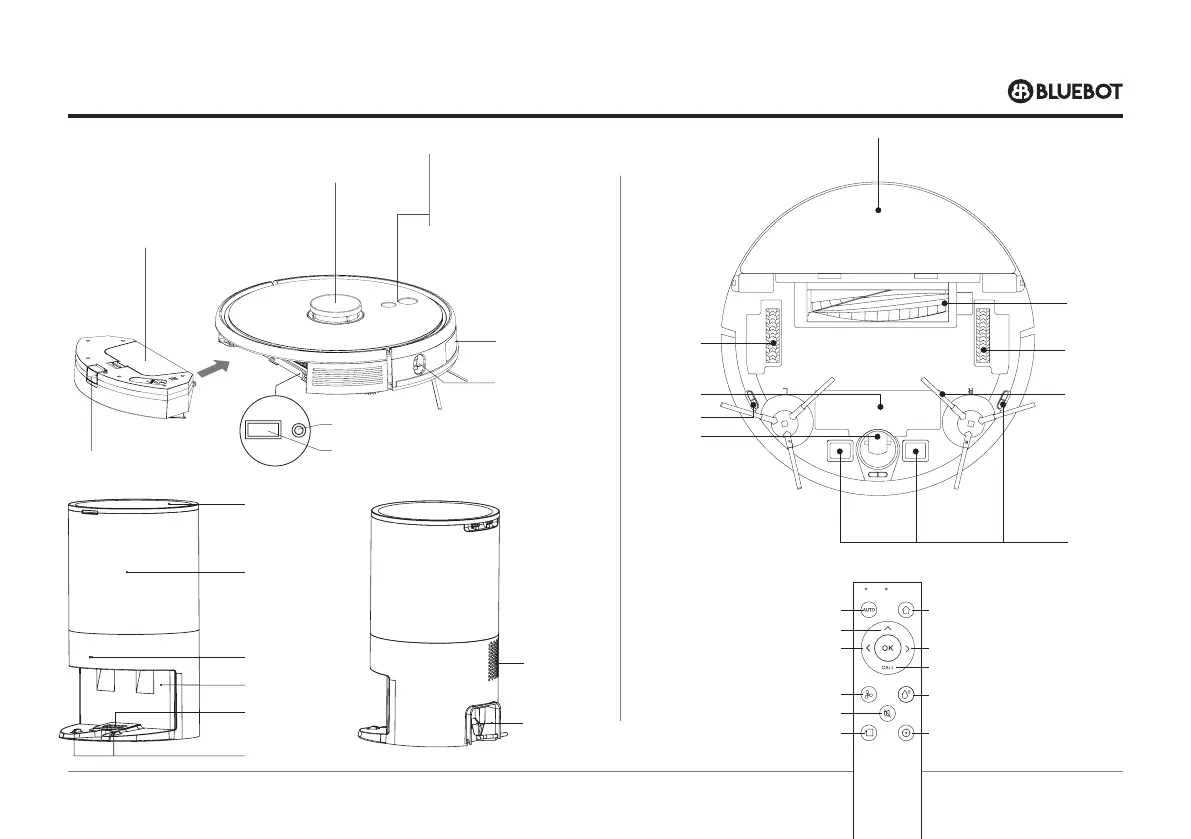

PRODUCT INFORMATION
Filter cover
Anti-collision,
Infrared recharging
sensors
Wall sensor
System reset button
System upgrade port
for professional use
Mop cloth
assembly
Main brush
Main brush
cover
Side wheel
Side wheel
Battery
Cli sensor
Universal
wheel
Side brush
Cli sensor
TOP & FRONT BOTTOM
REMOTE CONTROL
Dustbin button
Infrared lens
Suction inlet
Charging / Dust
collection indicator
Dustbag chamber
Wind ow
Charging jack
Charging and dust
collection sensor
Upper cover
Open the upper cover,
Install/remove dust bag.
Anti-collision sensor for radar
LDS laser ranging sensor
CLEANING ON &OFF
• Short press to start clean/pause
• Long press for 3secs for on/o
CHARGING/LOCAL CLEANING
• Short press charge/pause
• Long press to start local cleaning
INDICATOR LIGHT
• Blue: normal operation or charging
• Red: abnormal condition or low battery
• Purple: robot is not connected to the network
RESET WIFI
• Press the two buttons simultaneously for 3secs
Auto cleaning start/pause
Go forward
Turn left
Adjustment of suction power
Dnd mode on/o
Edge cleaning
Charging start/pause
Turn right
Find robot
Adjust water ow
Spot cleaning start/pause
