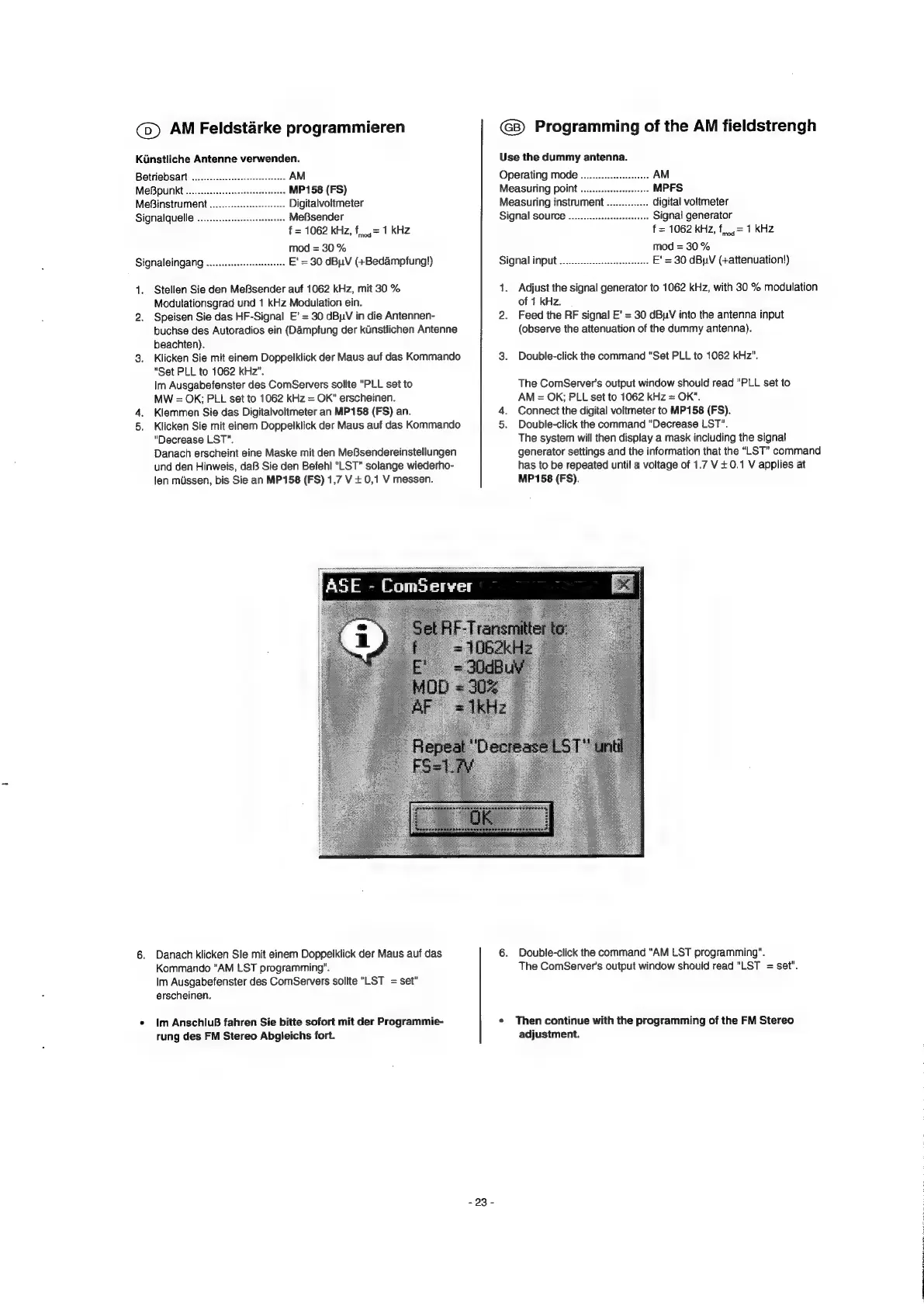

Page #23 background imageLoading...
Page #23 background image
@>
AM
Feldstarke
programmieren
Kinstliche
Antenne
verwenden.
Betriebsart
....
MeBpunit
...
..
MP158
(FS)
MeBinstrument
.
.
Digitalvoltmeter
Signalquelle
MeBsender
f
=
1062
kHz,
f=
1
KHZ
mod
=
30
%
Signaleingang
..............ssee
E'
=
30
dByV
(+Bedampfung!)
1.
Stellen
Sie
den
MeBsender
auf
1062
kHz,
mit
30
%
Modulationsgrad
und
1
kHz
Modulation
ein.
2.
Speisen
Sie
das
HF-Signal
E'
=
30
dBpV
in
die
Antennen-
buchse
des
Autoradios
ein
(Dampfung
der
kinstlichen
Antenne
beachten).
3.
Klicken
Sie
mit
einem
Doppelklick
der
Maus
auf
das
Kommando
"Set
PLL
to
1062
kHz".
Im
Ausgabefenster
des
ComServers
sollte
"PLL
set
to
MW
=
OK;
PLL
set
to
1062
kHz
=
OK"
erscheinen.
Klemmen
Sie
das
Digitalvoltmeter
an
MP158
(FS)
an.
5.
Klicken
Sie
mit
einem
Doppelklick
der
Maus
auf
das
Kommando
"Decrease
LST".
Danach
erscheint
eine
Maske
mit
den
MeBsendereinstellungen
und
den
Hinweis,
daB
Sie
den
Befehl
"LST"
solange
wiederho-
len
missen,
bis
Sie
an
MP158
(FS)
1,7
V
+
0,1
V
messen.
>
FASE
-
ComServer
6.
Danach
klicken
Sle
mit
einem
Doppelklick
der
Maus
auf
das
Kommando
“AM
LST
programming".
Im
Ausgabefenster
des
ComServers
sollte
"LST
=
set”
erscheinen.
¢
Im
AnschluB
fahren
Sie
bitte
sofort
mit
der
Programmie-
rung
des
FM
Stereo
Abgleichs
fort.
-23-
Programming
of
the
AM
fieldstrengh
Use
the
dummy
antenna.
Operating
mode
....
Measuring
point
....
Measuring
instrument
....
Signal
source
...
AM
...
MPFS
...
digital
voltmeter
..
Signal
generator
f
=
1062
kHz,
f,4=
1
kHz
mod
=
30
%
Signal
input
«2.0.2...
E'
=
30
dBuV
(+attenuation!)
1.
Adjust
the
signal
generator
to
1062
kHz,
with
30
%
modulation
of
1
KHz.
2.
Feed
the
RF
signal
E'
=
30
dBuV
into
the
antenna
input
(observe
the
attenuation
of
the
dummy
antenna).
3.
Double-click
the
command
"Set
PLL
to
1062
kHz".
The
ComServer's
output
window
should
read
"PLL
set
to
AM
=
OK;
PLL
set
to
1062
kHz
=
OK".
4.
Connect
the
digital
voltmeter
to
MP158
(FS).
5.
Double-click
the
command
"Decrease
LST".
The
system
will
then
display
a
mask
including
the
signal
generator
settings
and
the
information
that
the
“LST”
command
has
to
be
repeated
until
a
voltage
of
1.7
V+0.1
V
applies
at
MP
158
(FS).
6.
Double-click
the
command
"AM
LST
programming".
The
ComServers
output
window
should
read
"LST
=
set’.
¢
Then
continue
with
the
programming
of
the
FM
Stereo
adjustment.
4
;
4
