Fuel (Gas) Conversion Instructions for BLAZE Gas grills.
CAUTION: This should only by performed by a licensed gas professional.
FUEL CONVERSION - Main Burners:
Currently all grills are supplied with a regulator set at a pressure of 4” water column. The
process for changing the gas type (orifice change-out) is the same for both gases.
1. You must remove all cooking grids and flame tamers to expose the main burners in the
grill.
2. On the bottom rear of each burner is a cotter pin. Remove cotter pin.
3. To remove burner, pull rod upwards and slide burner toward the rear of the grill. Repeat
for each burner.
4. Where the burner was previously located, connecting to the main valve through the hole
in the basin, should now be empty space.
5. Inside the space you will find the end of the valve (toward the front of grill), with an orifice
(brass fitting), screwed into the end of the valve stem.
6. Carefully remove the orifice with a 7mm socket set and extension. (These are extremely
fragile! When unscrewing, be extremely gentle, for you could easily break the brass fitting
and have to replace the valve).
7. Once the old orifice is removed, replace it with the new orifice, (repeat for all burners).
When re-installing orifice, do not over tighten or you will strip the brass fitting. Little
pressure is needed!!!
8. Replace burners and test for proper flame height. Flame should stand between ½” - 1” on
LOW and 1.5” - 2” on HIGH. (To adjust the LOW flame setting simply light the grill on the
LOW setting and adjust the screw located under the knob on the front of the valve using a

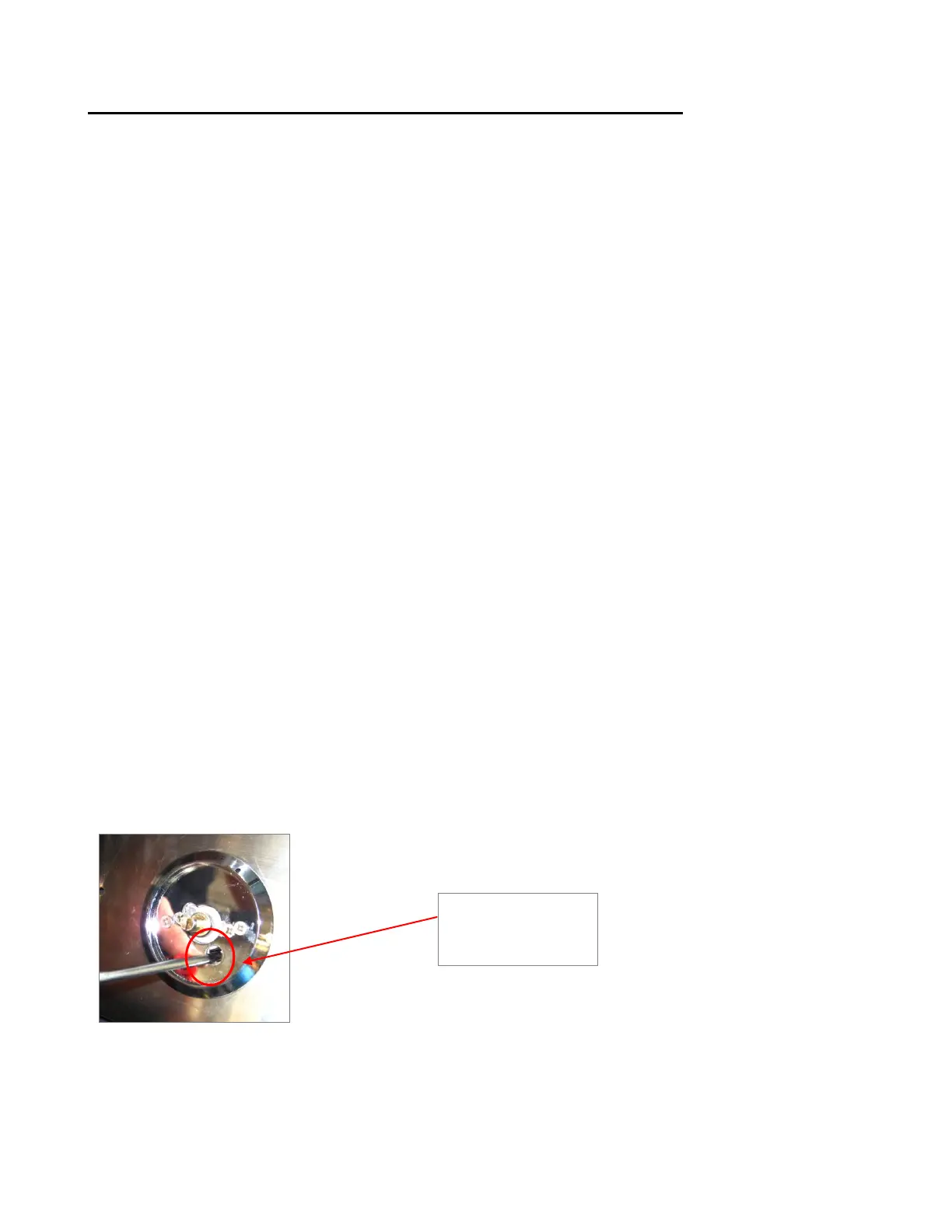

flat head screwdriver as seen in the diagram below.)
9. Replace burner flame tamers and cooking grids.
10. Adjust the LOW flame setting screw located under the knob on the front of the valve.
