Operating instructions
Component overview

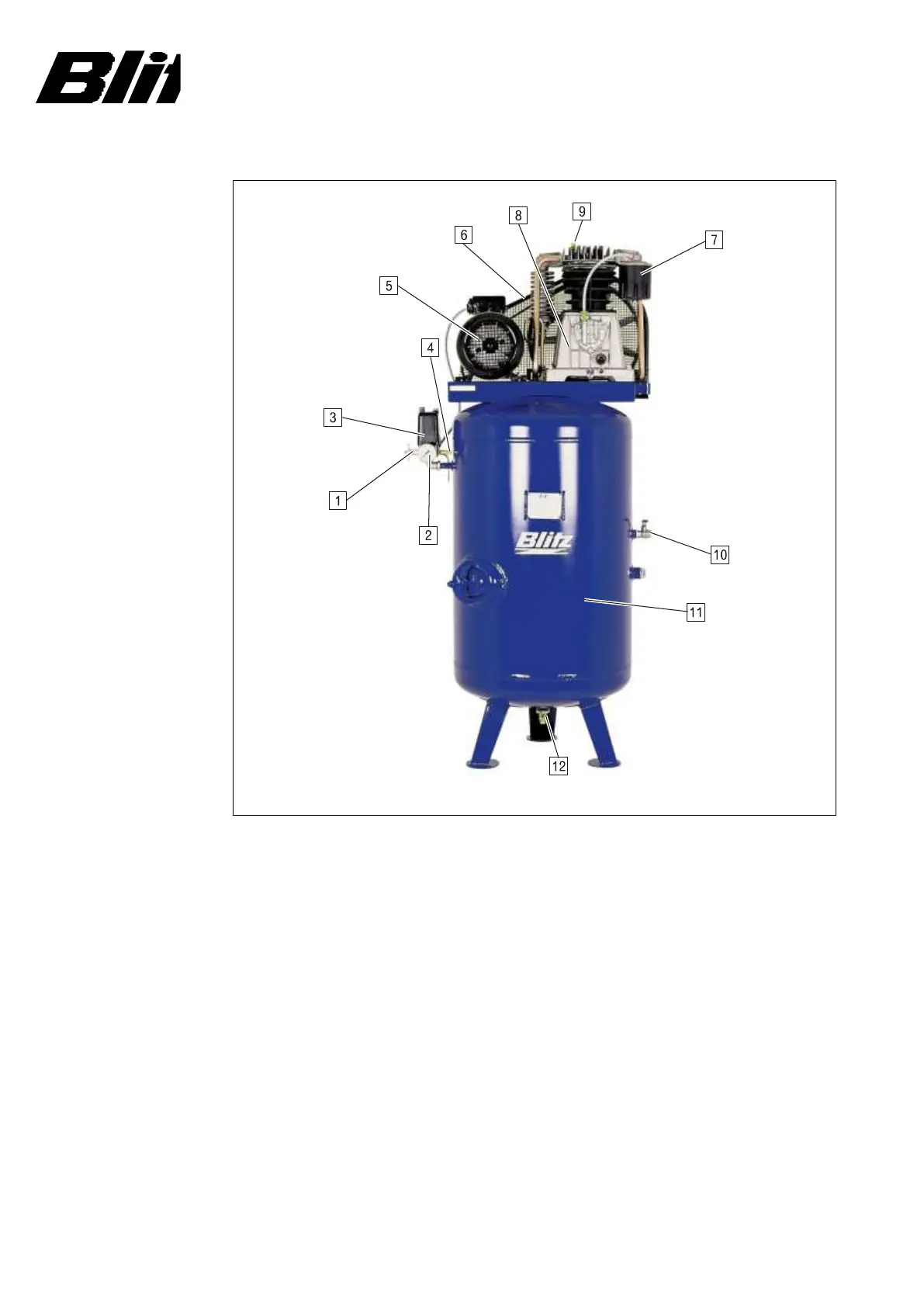

Abb. 1: Component overview
1
Test flange
7
Suction filter
2
Pressure gauge
8
Compressor aggregate
3
Pressure switch (operating switch)
9
Safety valve  intermediate pressure
4
Safety valve  ultimate pressure
10
Compressed air outlet
5
Motor
11
Compressed-air reservoir
6
Belt guard
12
Condensation water drain
