Page 11
G60™ Manual Rev. A Copyright (c) 2011 Blizzard Lighting, LLC

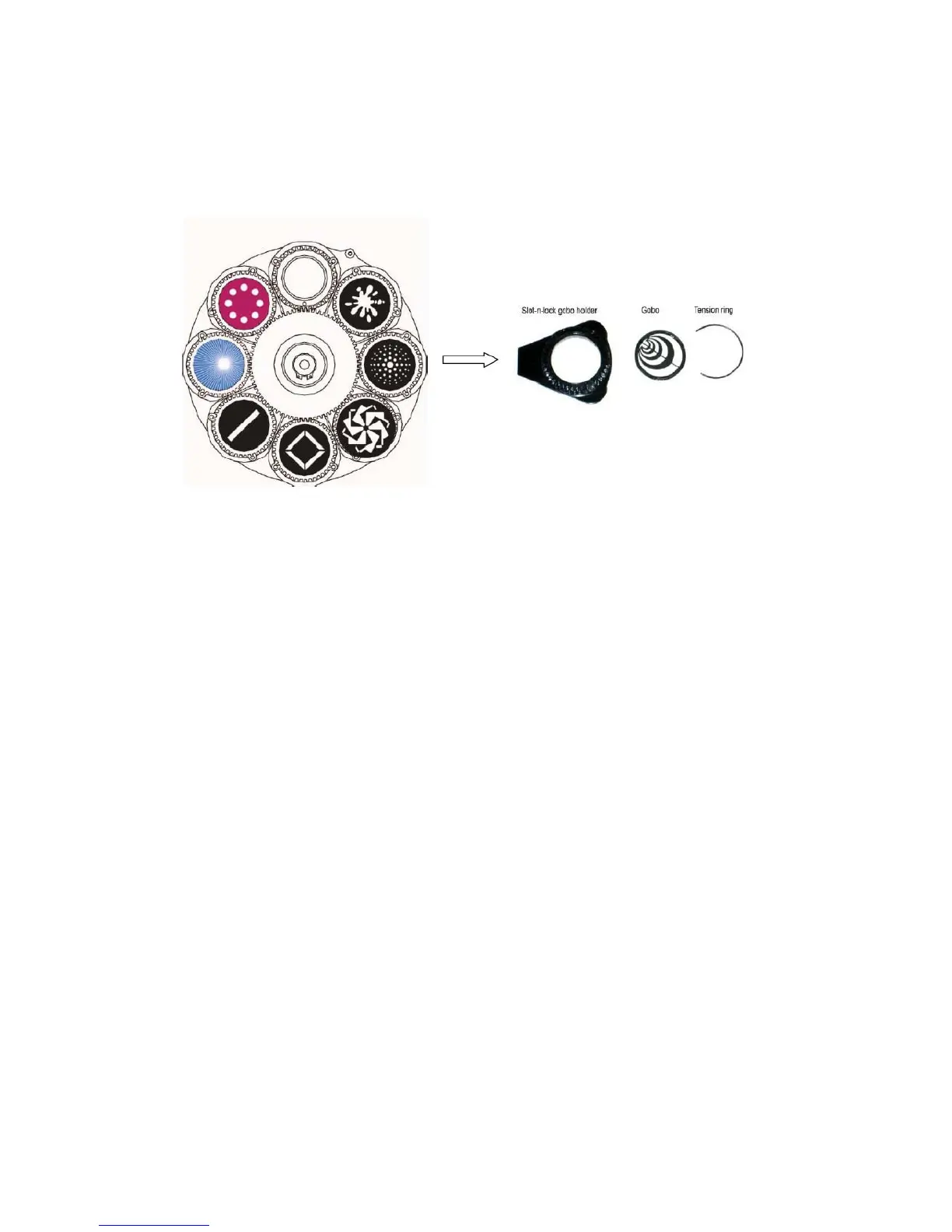

Gobo Replacement
1) Remove the gobo cover by removing the four screws on the top of the fi xture head.
2) Remove the slot-n-lock gobo from the gobo wheel by lifting up slightly and sliding it out.
3) Using a small tool, pry the tension ring from the gobo holder.
4) Remove the old gobo.
5) Insert the new gobo, and replace in the reverse steps of removal.
