20
USA
A
x4
v
Ø
1
/
8
" (3,5mm)
B

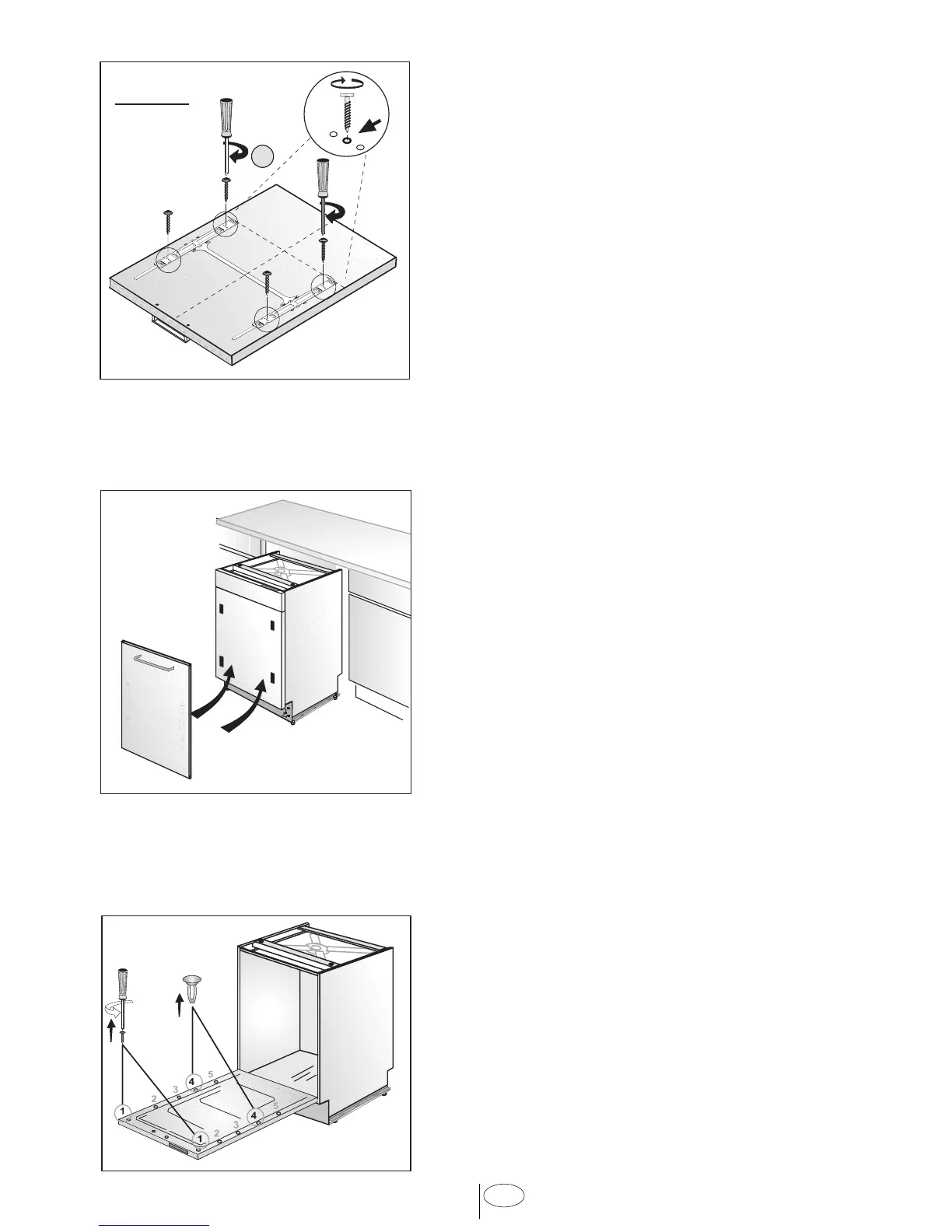

5. Attach the two mounting brackets to the wooden
door with 4 screws (Ø
1
/
8
” x
5
/
8
” (Ø 3.5mm x 14mm)
(Figure A).
6. Mount the wooden door onto the dishwasher
with the plastic mounting brackets which you have
attached (Figure B).
7. Open the door and remove the two caps and
two screws inside the door at position 1 and 4
(Figure C).
C
