SERVICE@BLUDOT.COM | 4ASSEMBLY NOTES
Pt. 1083 X 14 Pt. 9004 X 1

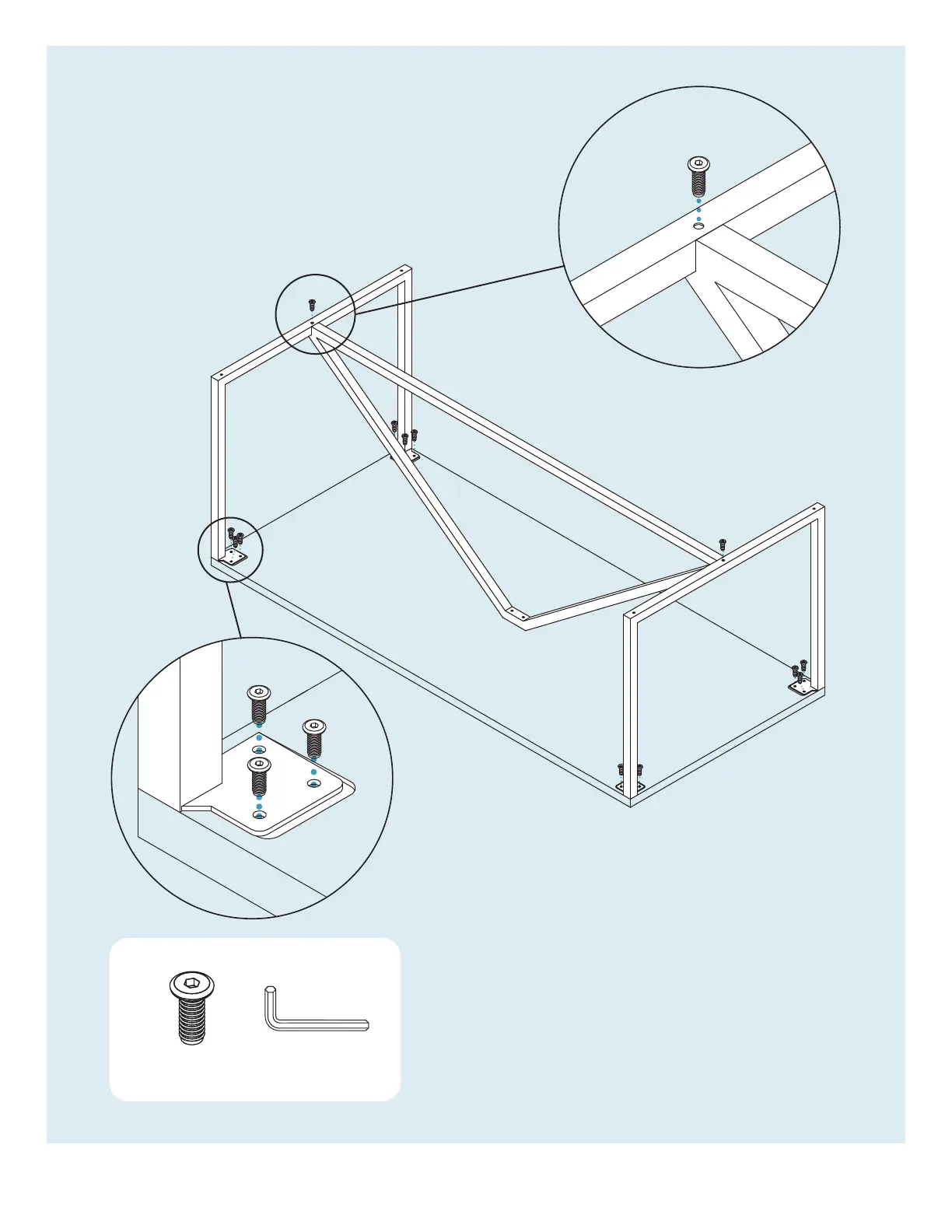

Step 03
SECURE LEGS.
Secure legs using the provided hardware as
shown. Tighten the bolts that were installed
in the previous step before proceeding to the
next step.
