Blue Diamond Post Driver - Page 28

28
Parts

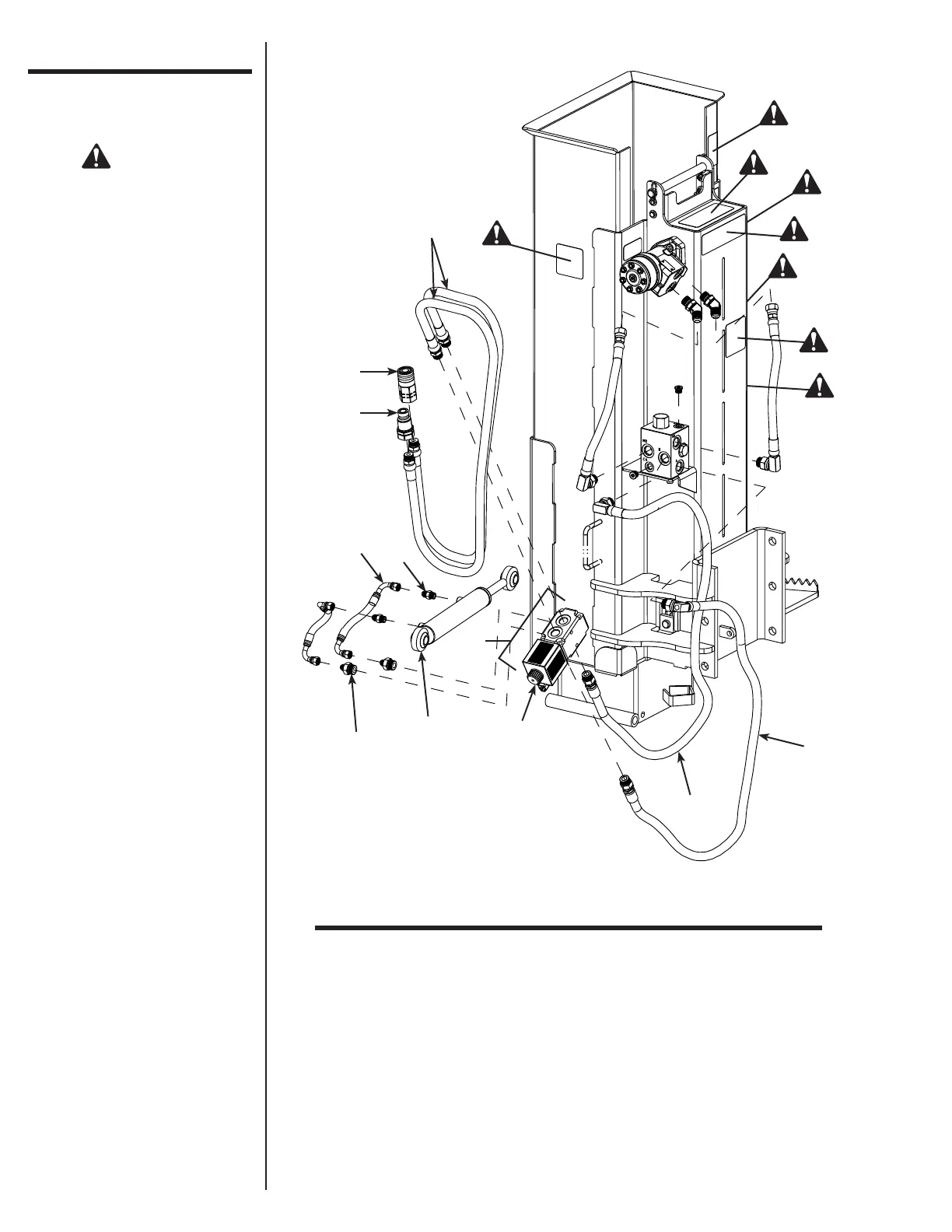

Tilt Hydraulics
= Safety Sign
Location
REF. NO. PART NO. DESCRIPTION QTY.
1 21145 Vehicle-Diverter Hydraulic Hose 2
2
224020 Female Coupler 1
3
224021 Male Coupler 1
4 21164 Diverter-Cylinder Hydraulic Hose 2
5
200064 Restrictor 2
6 21153 #10 O-ring #6 JIC Fitting 2
7
200060 Hydraulic Cylinder 1
8
200051 Diverter Valve 1
9
200050 Diverter Valve Solenoid 1
10
200052 Diverter-Cylinder Hydraulic Hose 1
11
200053 Diverter-Manifold Hydraulic Hose 1
4
2
3
11
10
1
5
7
8
6
9
