Mechanical Dock Leveler – M and FMC Group 14, Section 03, Page 1
Issue Date: 10/01/01, Rev. 0 (Part #038-550E)

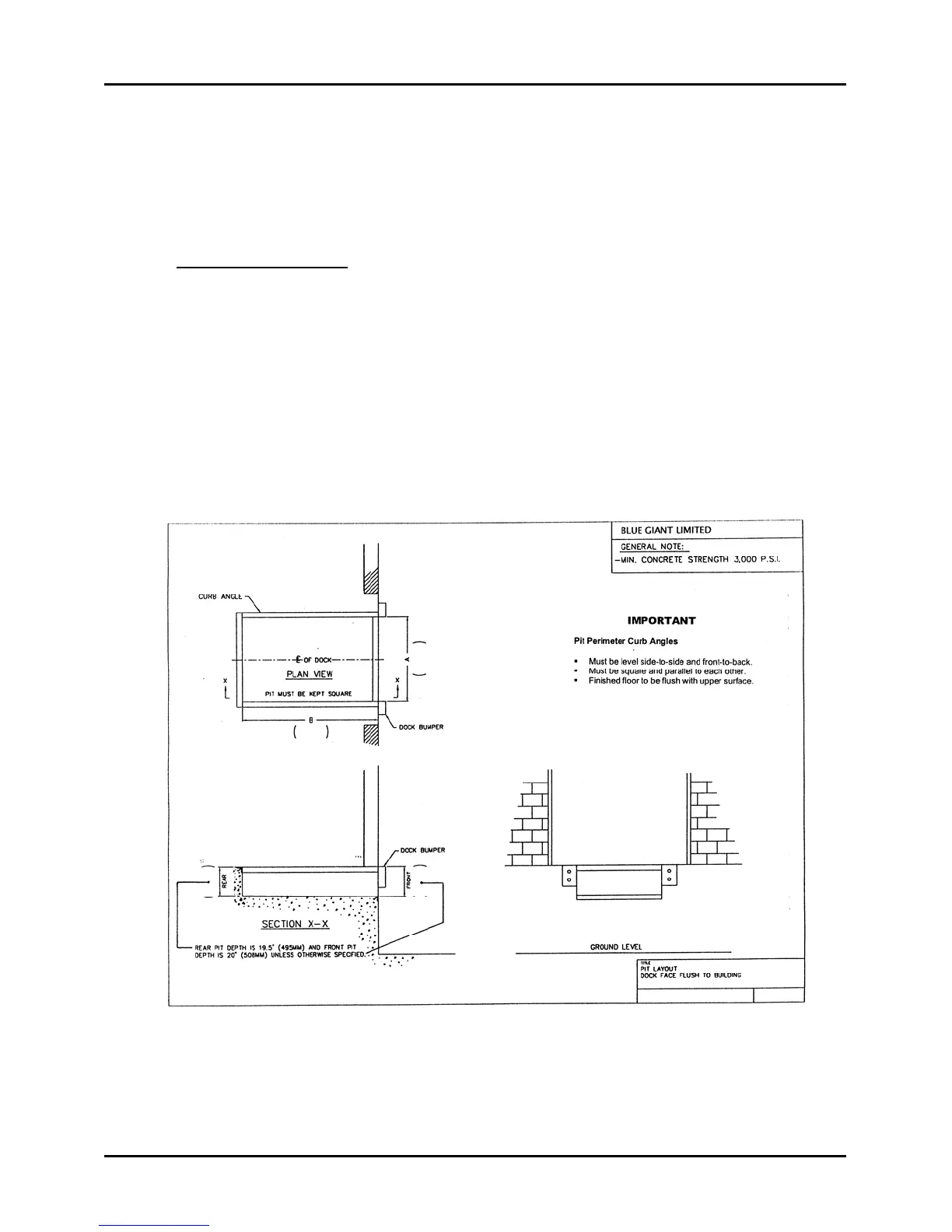

PIT LAYOUT - TYPICAL
IMPORTANT
PIT CURB ANGLES:
1. Must be level side-to-side and front-to-back.
2. Must be square at both rear corners.
3. Side curb angles must be parallel to each other.
4. Finished floor to be flush with top surface of curb angle.
Dimension A (width) and B (length) vary to suit the specific Model of
Dock Leveler ordered.
