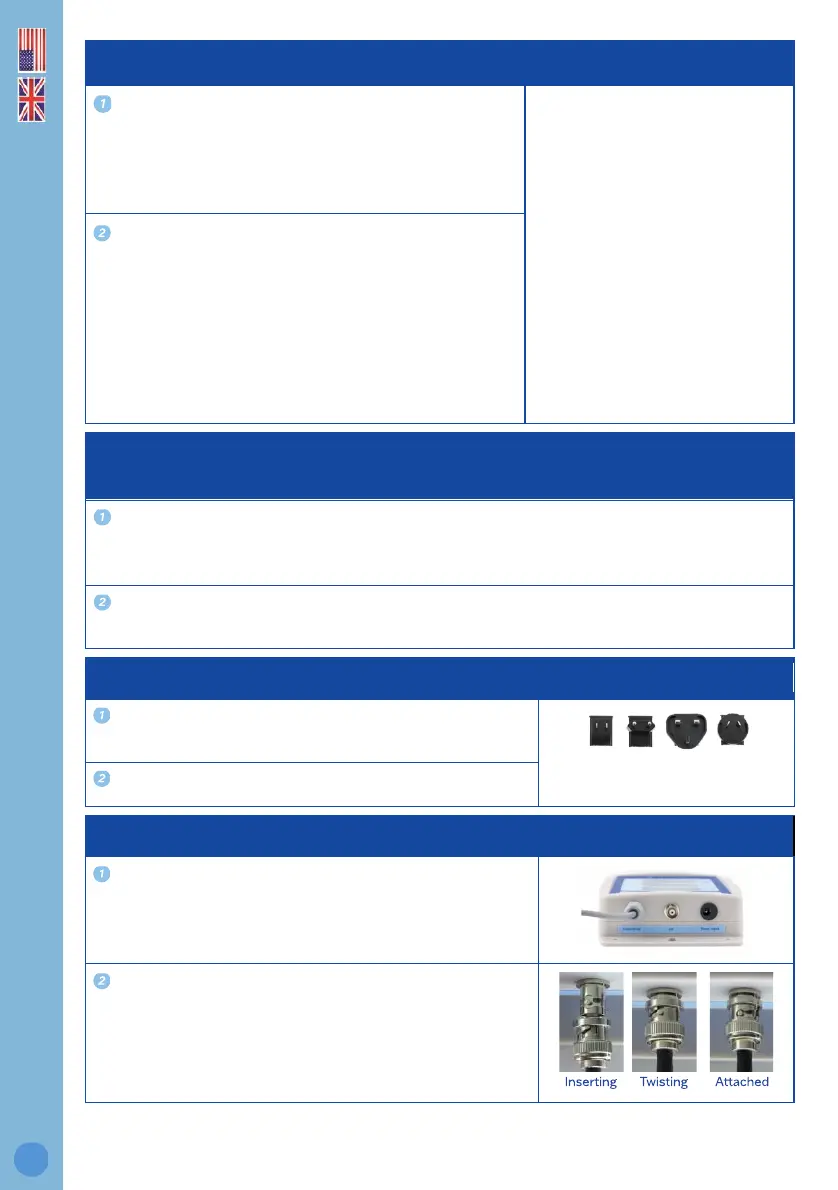

Select a suitable location that is less than 2 meters
from your reservoir, and less than 1.5 meters from an
electrical mains outlet. NOTE: Avoid placing the
Guardian Monitor where it can be damaged by direct
sunlight, water or nutrient salts.
Option 1
Mounting keyholes top and bottom
Option 2
Mounting holes top and bottom
Option 1
a)
Install two fasteners (top and bottom) to the wall
172mm / 6.¾” apart.
b)
Slide the Guardian Monitor onto the fasteners
using the keyholes.
Option 2
a)
Fix the four fasteners through each mounting
hold in each corner of the case.
3.1 Mounting on a support or bar
Select a suitable location that is less than 2 meters from your reservoir, and less than 1.5
meters from an electrical mains outlet. NOTE: Avoid placing the Guardian Monitor where it can
be damaged by direct sunlight, water or nutrient salts.
Fix each of the cable ties provided through the small mounting holes in the top of the case
and wrap around the support or bar and secure.
Select the appropriate mains plug adaptor for your
country.
Connect the plug adaptor to the power supply.
5.0 Connect power adaptor and Bluelab pH Probe
Connect the power adaptor into the base of the
Guardian Monitor where ‘Power Input’ is labelled. Plug
the adaptor into mains power supply.
Connect the pH probe to the Guardian Monitor by lining
up the lugs of the BNC fittings.
Fasten securely by pushing the pH probe
connector on and twisting one quarter turn.
