5. The operation steps of touch screen
Warm tip:
●The touchable LCD screen is a resistance screen. we recommend to press the touch
button by fingernail lightly until it "beeps".
●In order to maximize the lifespan of the LCD screen, please avoid direct sunlight on it.

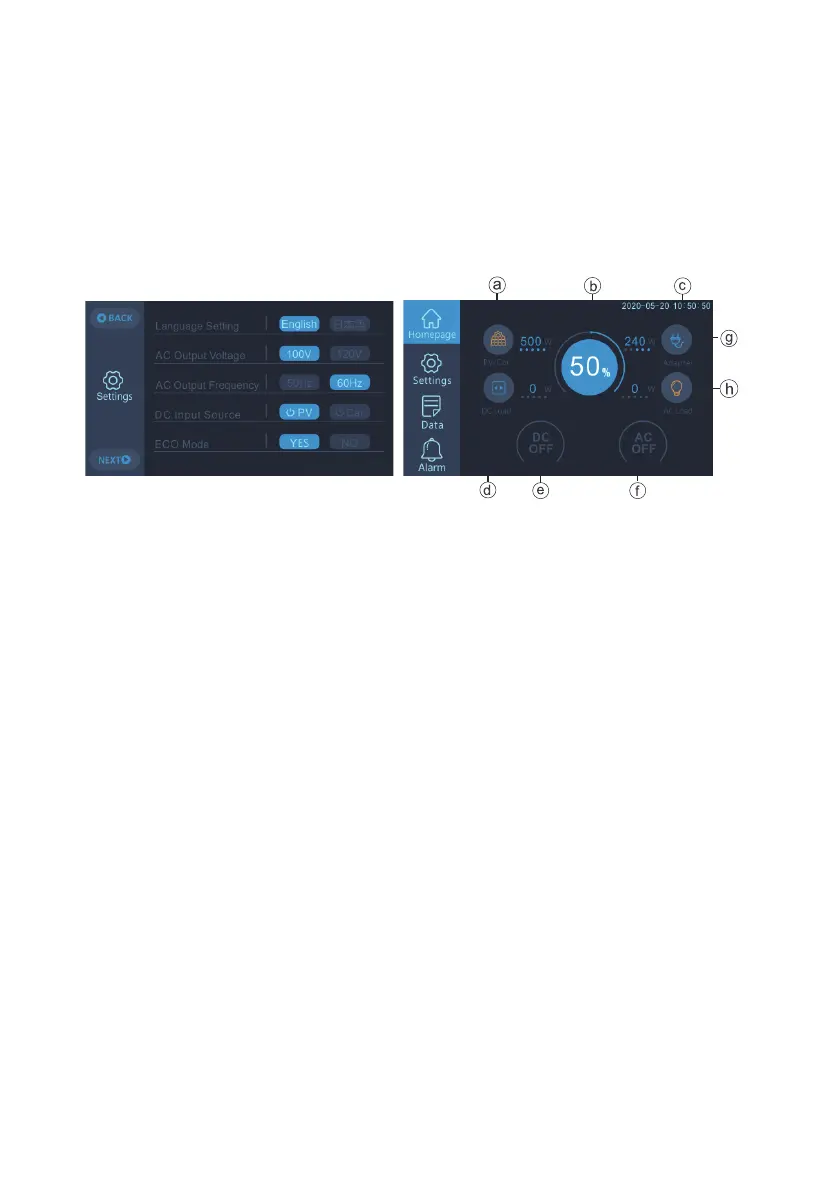

(1) When press the power button,it will enter the main interface of the LCD display screen:
(2) Click the settings button in the main interface (Figure 2) to enter the setting interface as
follows (Figure 3) :
Warm tip: Please enter the setting interface to set the date and time according to the local
time zone, and check the output voltage, frequency and other parameters for the first time.
The default:
JP output: 100V/50Hz
US output: 120V/60Hz
EU output: 230V/50Hz
UK output: 230V/50Hz
DC Input Source: PV (solar)
ECO Mode: NO
Press “Next” button to enter language and date setting as below（Figure 3）:
Language: Japanese, English
Date and time: 2000-00-00、00：00：00
Please set the "Date and time" at least once every 2 weeks.
Press to configure it.
a.PV/Car charging display
b.BMS Info
c.Date/Time
d.DC load Info
e.DC ON/OFF Switch
f.AC ON/OFF Switch
g.Adapter charging display
h.AC load Info
- 05 -
