BLUM 21KA000 User Manual

Dimensions in millimeters (inch equivalents as noted) © 2016 Blum, Inc.
19

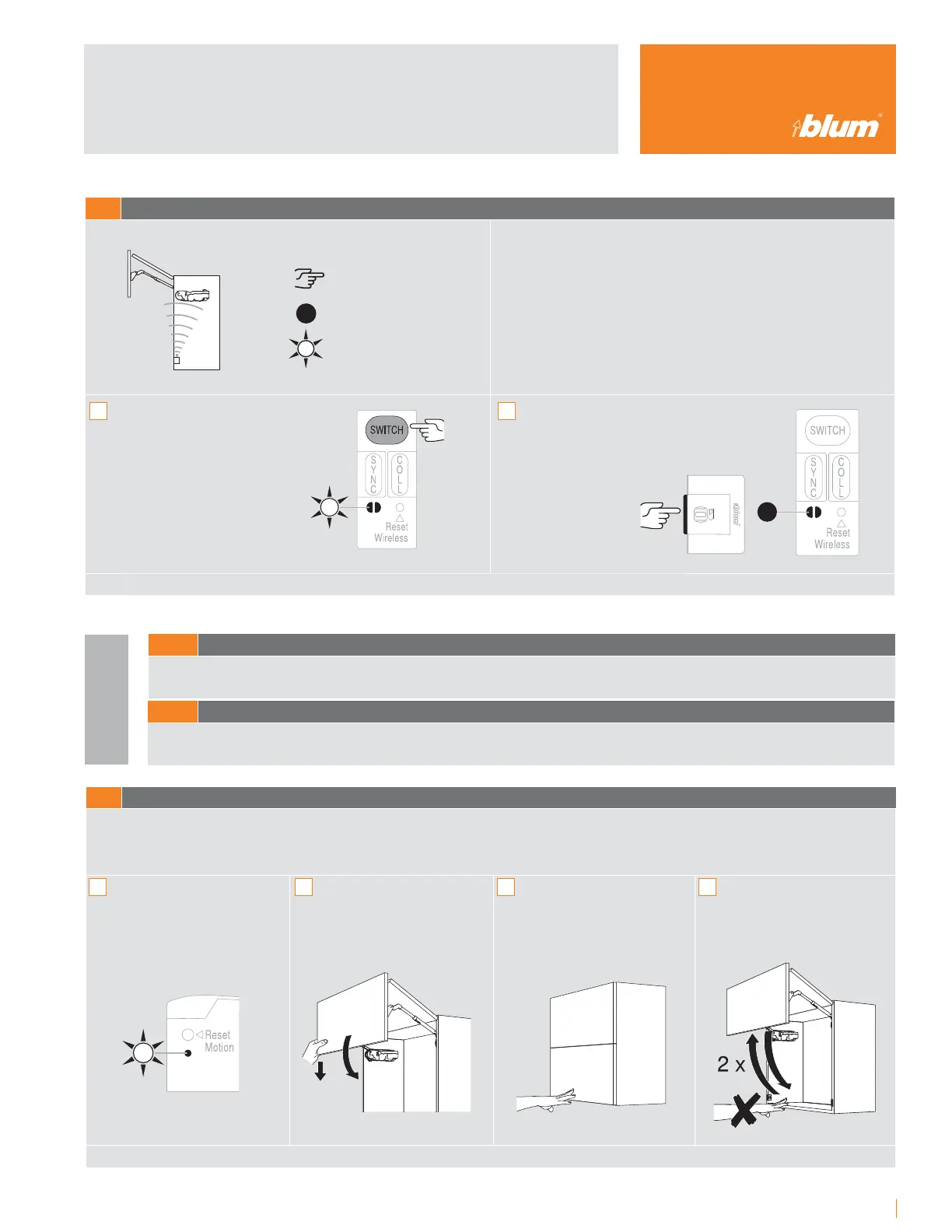

A Activating the SERVO-DRIVE switch
Setting up the wireless connection between the SERVO-DRIVE
switch and the drive unit. Each switch can only be assigned to one
SERVO-DRIVE unit.
Press and hold the <SWITCH> button
until the LED flashes
Press and hold the SERVO-DRIVE switch
until the LED lights up continuously.
Repeat steps 1 and 2 for additional SERVO-DRIVE switches in the cabinet.
C Activating synchronization
For instructions on activating synchronization, see page 24
D Activating collision avoidance
For instructions on activating collision avoidance, see page 24
B Start reference run
The drive unit recognizes the required parameters using the reference run, setting both upper and lower limits for the motion of the door.
Reference run is required:
LED flashes orange
Close the front manually Press on front: The reference
run starts automatically
Front opens and closes two
times a
utomatically: under no
circumstances
should you try to
manually interrupt or stop the
process
NOTE: If the reference run is interrupted, it should be reset. See reset motion on page 25 then restart reference run.
1 32 4
1 2
Additional Features
Start-Up
Optional
Operation
Lights up continuously
Flashes
Start-Up SERVO-DRIVE for
AVENTOS

BLUM 21KA000 Specifications

General

Brand	BLUM
Model	21KA000
Category	Servo Drives
Language	English
