11.1 - Error during drilling
11 - Troubleshooting
Error Cause Solution Comment
Assembly machine is driving against an
object (e.g. swivel stop)
Remove object none
Feed switch was released before the
drilling depth was reached
Work top height (thickness)
Cam brake set too high
The swivel stops were not set properly on
the ruler.
Keep feed switch engaged until the drilling
depth has been reached
Put work top underneath until a height of 24
mm has been reached
Open restrictor valve slightly
Check positions and stops and correct if
necessary
none
See chapter 11 - Ap-
pendix
none
none
Ruler not set properly Set ruler to the 0 point See point 3.1.2
Chips between the ruler and the work
piece
Remove dirt and chips none
Extension ruler is not attached properly Check ruler attachments and extension
- check spacing of both rulers
none
Drillings are off centre
or in the wrong posi-
tion
• Slightlyloosensub-assemblyscrewusingawrench(counter-
clockwise)
• Setlaserlinetothezeroposition
• Tightenscrewsusingwrench(clockwise)

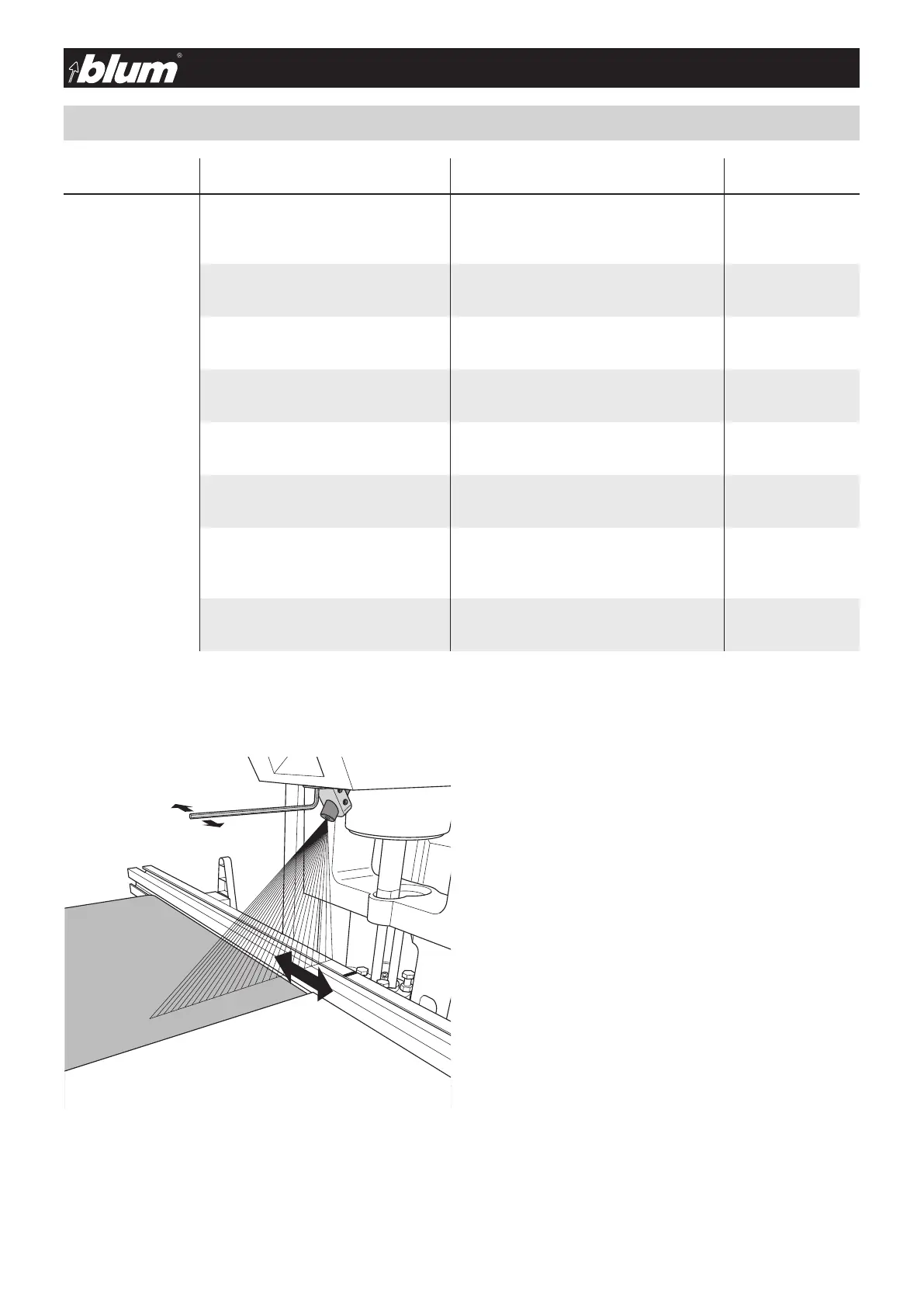

Adjusting laser to zero marking line:
