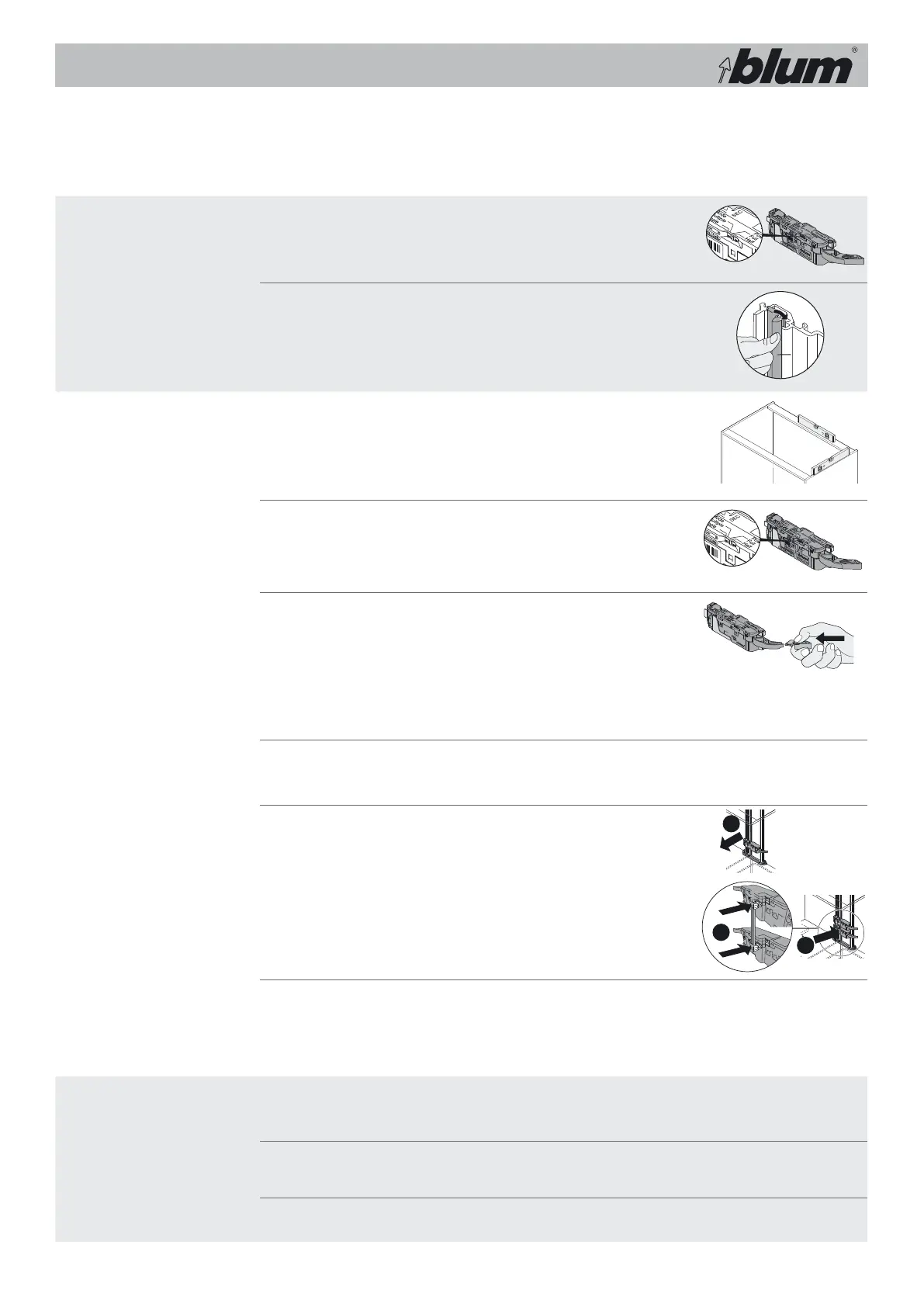

BLUM SERVO-DRIVE Problem Resolution

5
Problem Possible cause Remedy
Drive unit: Selector switch
"Mode" is set incorrectly.
➢ Set selector switch "Mode"
to "Single."
Bracket profile: Communication
cable is missing.
➢ Equip bracket profile with com-
munication cable (identical to
distribution cable).
B Communication cable
4 Pull-out will not open
far enough.
Cabinet is not aligned horizon-
tally.
➢ Realign cabinet.
For full extensions, the selec-
tor switch “Power" on the drive
unit is set incorrectly.
➢ Set selector switch
➢ "Power" to "Full".
Drive unit lever extension
is not attached (the lever
extension must be removed
for an inner cabinet width up
to 234 mm).
➢ Assemble lever extension
for drive unit
Runner system is difficult to
open and close.
➢ Clean cabinet profile.
➢ Replace cabinet profile.
Drive unit is too weak for the
pull-out.
➢ Install a second drive unit with
a synchronisation cable to the
bracket profile.
Drive unit is defective. ➢ Reconnect drive unit and activate
eject lever – see chapter removal /
assembly.
➢ Replace drive unit and activate
eject lever.
5 Pull-out opens again on
its own when closing.
Bracket profile and/or attach-
ment bracket is positioned
incorrectly.
➢ Correct position of bracket profile
and/or attachment bracket.
Drive unit is defective. ➢ Replace drive unit and activate
eject lever.
Cabinet profile is defective. ➢ Replace cabinet profile.
B
1
2
3
