BLUM TC62 User Manual

Mounting and commissioning
20  by Blum-Novotest 2012
3.4 Mounting of the stylus
CAUTION
Damage of the measuring mechanism
• TC60: When mounting the stylus into the probe, it is absolutely
necessary to lock the probe with the mounting tool (B) to avoid
torsion of the measuring mechanism.
• TC63-30 / TC76:
When mounting the stylus into the probe, it is absolutely necessary
to use the interlocking disk (A) (backlash-free).
Pls. take care of the orientation of the interlocking disk (A)
(shark360° = top)
• Remove interlocking disk before measurement
• Calibrate probe after mounting of stylus!
• Damaged styli are not reusable!
TC60
TC61
TC62
TC63-10
TC63-30
TC64-10

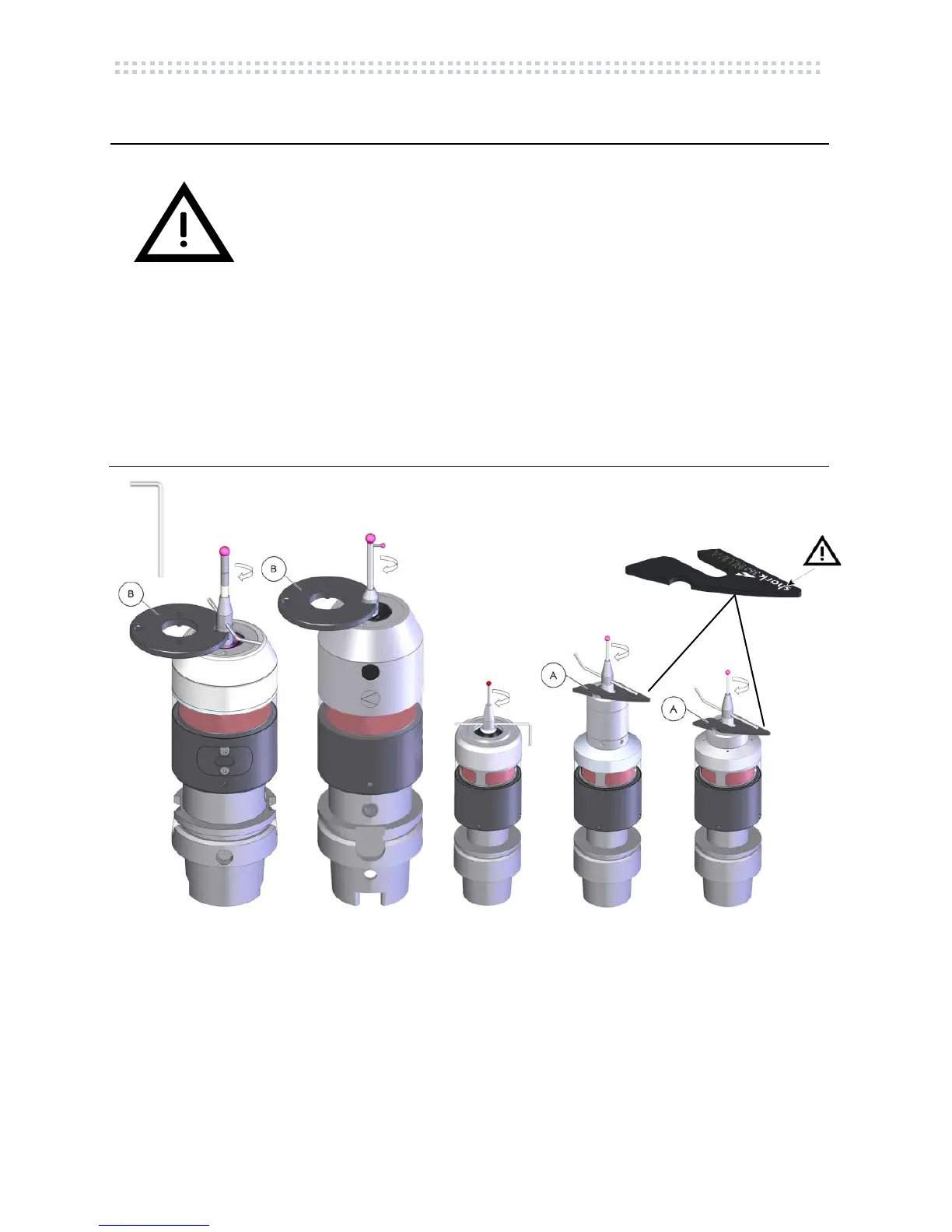

Fig. 3.4
(A) interlocking disk (scope of delivery)
(B) mounting tool (scope of delivery)

Adjustment stylus TC61: see fig. 3.5
1,5 mm
M
d
= 1 Nm
