C66CS/C88CS USER MANUAL
www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk 12

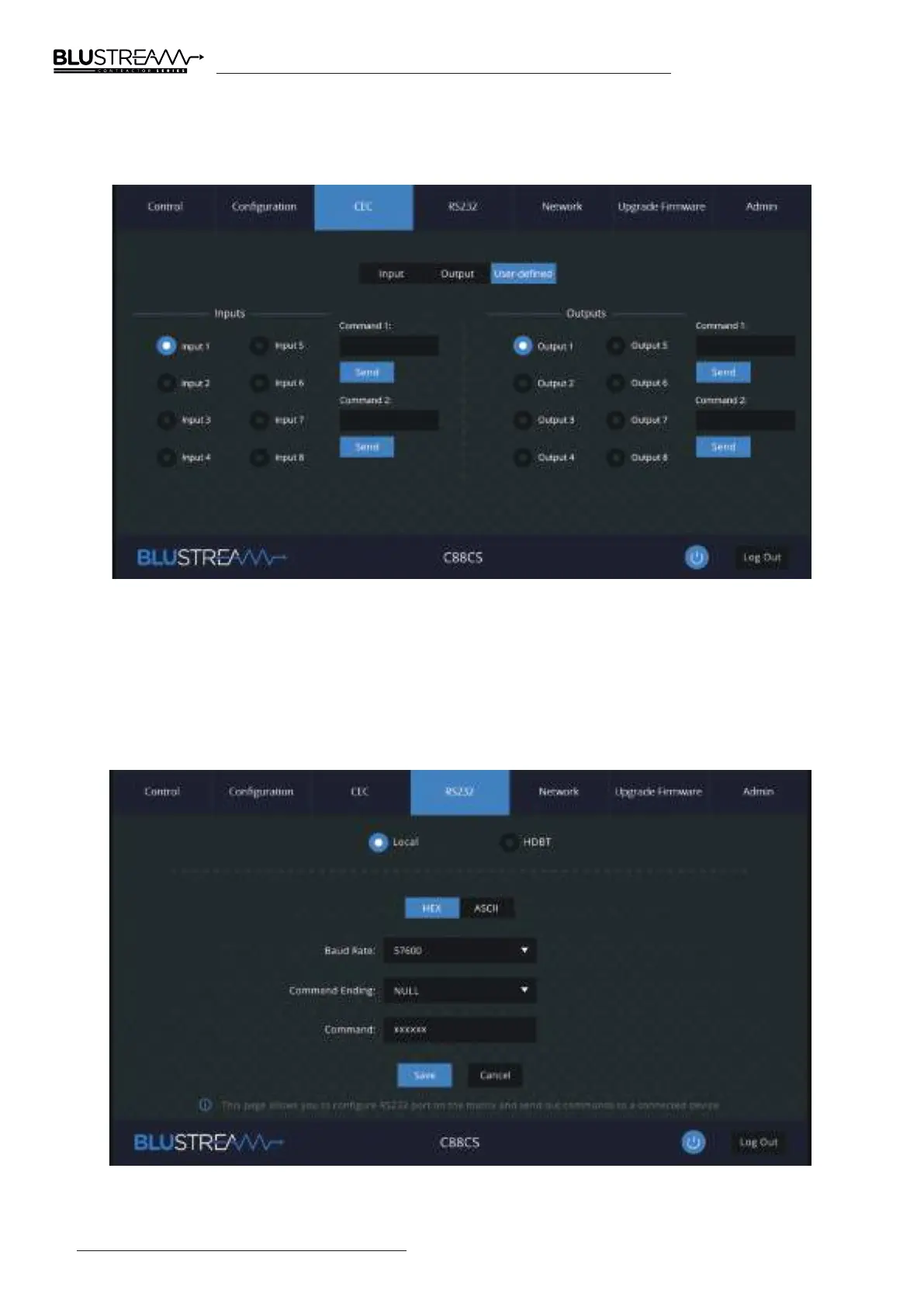

CEC Page - User-defined
On the CEC User-defined Page, you can enter custom CEC commands and have these transmitted out of either an
input or output. Please Note: CEC is subject to the support of the sources and displays connected to the Matrix.
RS-232 Page - Local
The RS-232 page allows you to send commands either out of the local RS-232 port on the Matrix itself, or via HDBT and
out of a compatible HDBT Receiver connected to a display. If the Local radio box is selected, RS-232 commands will be
sent out of the DB9 serial port at the rear of the Matrix. Baud rate and terminator command as well as Hex or ASCII can
be selected.

BluStream C66CS Specifications

General

HDCP	Yes
HDCP version	2.0
Product type	AV matrix switcher
Supported chroma subsampling	4:4:4, 4:2:0
AC input voltage	100 - 240 V
Power consumption (max)	- W
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 55 °C
Control type	Buttons
Housing color	Black
Rack capacity	1U
Remote (IR) input	7
Remote (IR) output	6
Ethernet LAN (RJ-45) ports	1
Built-in display	-

Weight and Dimensions

Depth	377 mm
Width	437 mm
Height	44 mm
Package weight	6250 g
