C66CS/C88CS USER MANUAL
www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk 14

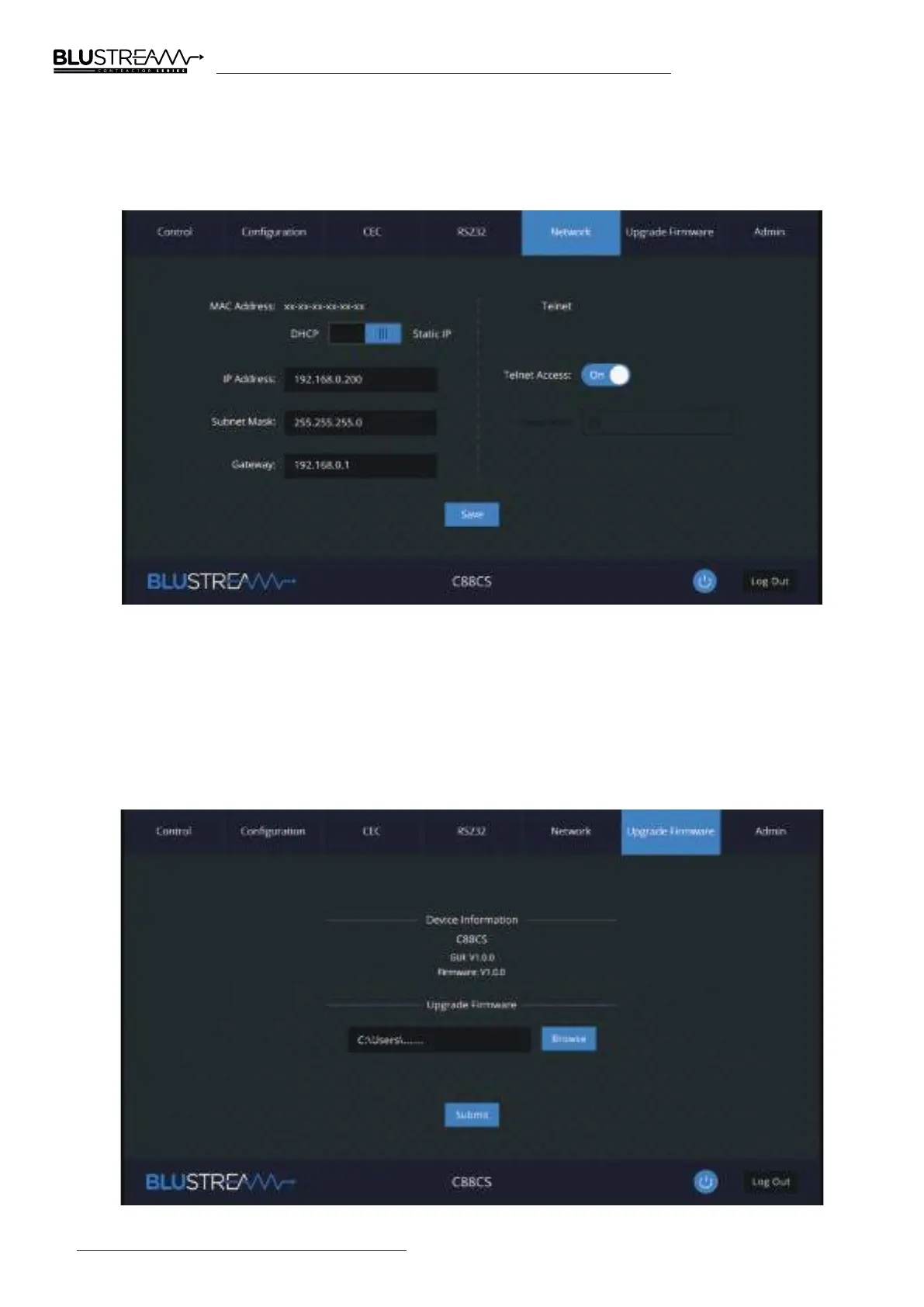

Upgrade Firmware Page
The Upgrade Firmware Page allows you to upgrade the MCU firmware of the Matrix via the Web GUI. Simply click
Browse and select the appropriate firmware file from your computer (firmware available to download from the
Blustream website). Clicking Submit will send the firmware file to the Matrix and begin the upgrade process. The
upgrade process will take several minutes to complete and the Matrix will reboot once finished. Please do not
disconnect your computer, or Matrix, from the network until the firmware has been delivered successfully.
Network Page
The Network Page allows you to specify the TCP/IP network port settings. You can choose from Static IP or DHCP, as
well as specify a fixed IP Address, Subnet Mask, and Gateway. It is also possible to change or disable the Telnet port to
suit the network and communication required for control.

BluStream C66CS Specifications

General

HDCP	Yes
HDCP version	2.0
Product type	AV matrix switcher
Supported chroma subsampling	4:4:4, 4:2:0
AC input voltage	100 - 240 V
Power consumption (max)	- W
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 55 °C
Control type	Buttons
Housing color	Black
Rack capacity	1U
Remote (IR) input	7
Remote (IR) output	6
Ethernet LAN (RJ-45) ports	1
Built-in display	-

Weight and Dimensions

Depth	377 mm
Width	437 mm
Height	44 mm
Package weight	6250 g
