C66CS/C88CS USER MANUAL
Contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk
15

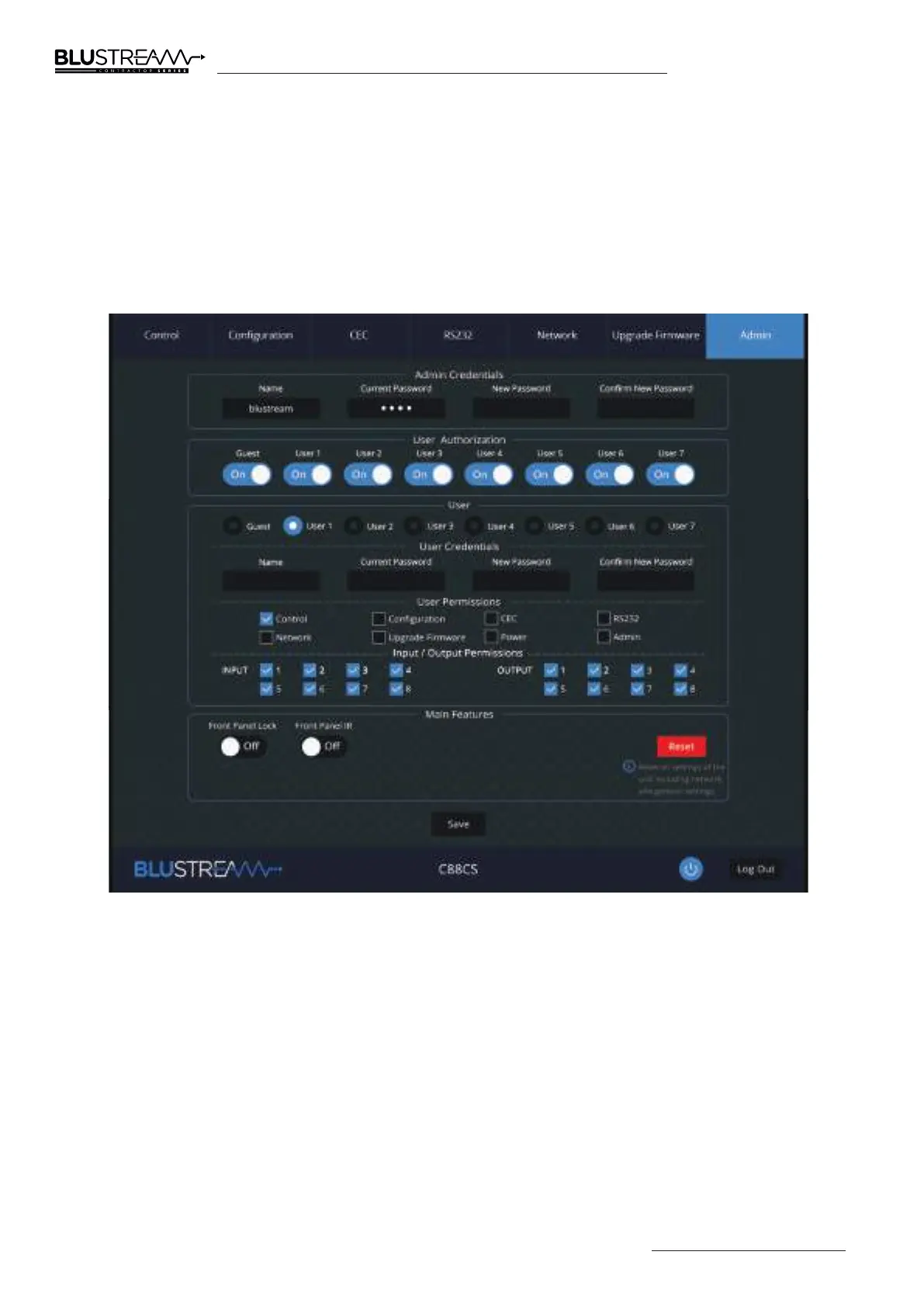

Admin Page
The Admin Page allows the administrator to configure up to 8 users including a guest user. Individual users can adjust
their own credentials via this page.
The Admin, or Users who have been given Admin permissions, are able to allocate permissions to Users. These
permissions include allowing or disabling access to pages contained within the Web GUI, as well as allowing or
disabling access to each input or output of the Matrix.
The Admin Page also allows the Front Panel buttons of the Matrix to be locked or unlocked, enable or disable the Front
Panel IR window, as well as Factory Reset the Matrix to default.

Other manuals for BluStream C66CS

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the BluStream C66CS and is the answer not in the manual?

BluStream C66CS Specifications

General IconGeneral
HDCPYes
HDCP version2.0
Product typeAV matrix switcher
Supported chroma subsampling4:4:4, 4:2:0
AC input voltage100 - 240 V
Power consumption (max)- W
Storage temperature (T-T)-25 - 70 °C
Operating temperature (T-T)-5 - 55 °C
Control typeButtons
Housing colorBlack
Rack capacity1U
Remote (IR) input7
Remote (IR) output6
Ethernet LAN (RJ-45) ports1
Built-in display-
Weight and Dimensions IconWeight and Dimensions
Depth377 mm
Width437 mm
Height44 mm
Package weight6250 g
