C66CS/C88CS USER MANUAL
Contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk
09

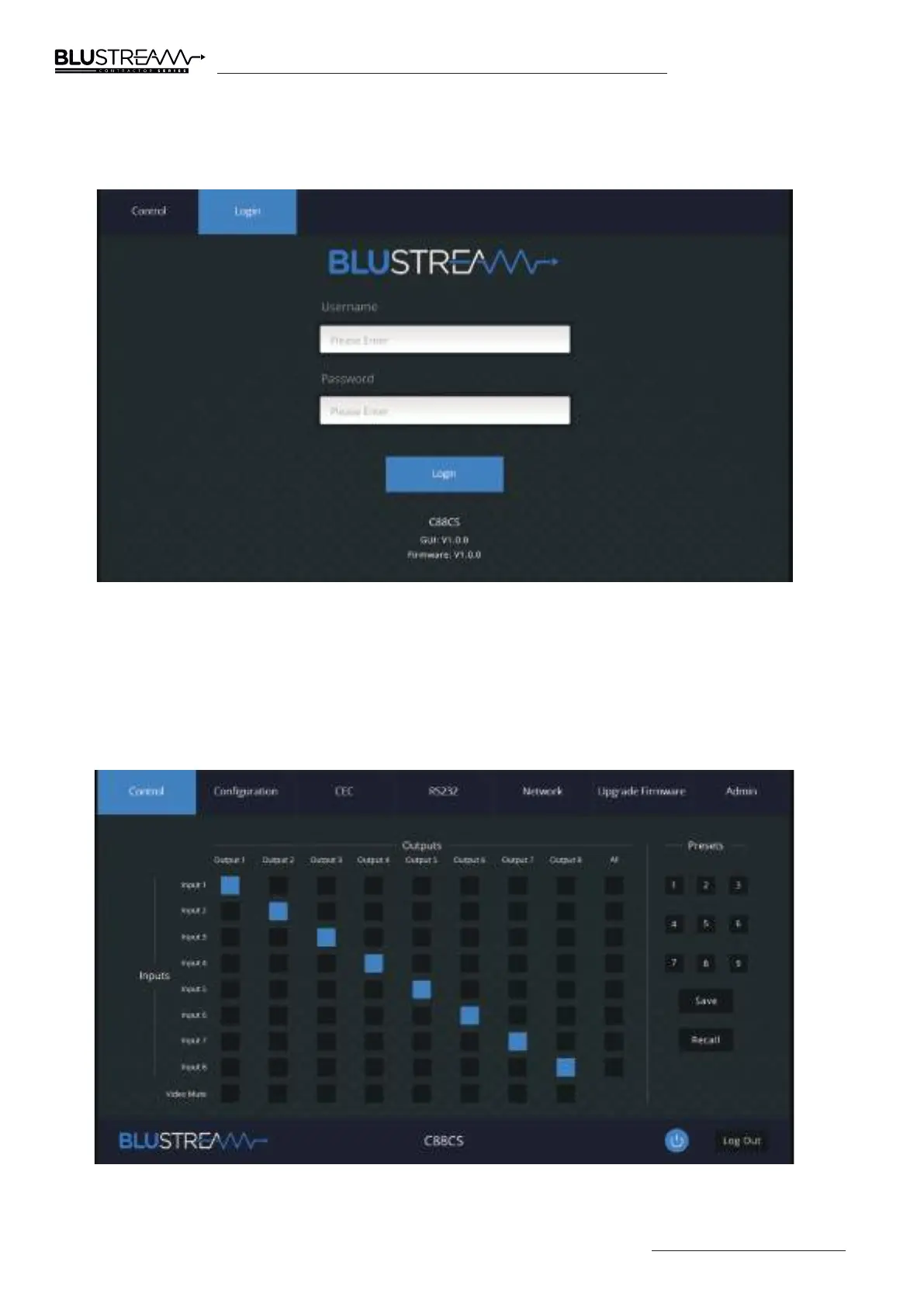

Login Page
The Login Page allows a user or admin to login and access additional functionality.
This page also shows you the current firmware version of both the Matrix and Web GUI.
User Control Page
The Control Page allows a user to change inputs for each zone (output). Simply select the square that corresponds with
the input and zone you wish to change.
A User or Admin also has the ability to Save or Recall pre-configured Presets. A Saved Preset will store the specified
input to output configuration, and allow the configuration to be recalled as required.
There is also a power button on the lower right corner to turn the Matrix on or o.

BluStream C66CS Specifications

General

HDCP	Yes
HDCP version	2.0
Product type	AV matrix switcher
Supported chroma subsampling	4:4:4, 4:2:0
AC input voltage	100 - 240 V
Power consumption (max)	- W
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 55 °C
Control type	Buttons
Housing color	Black
Rack capacity	1U
Remote (IR) input	7
Remote (IR) output	6
Ethernet LAN (RJ-45) ports	1
Built-in display	-

Weight and Dimensions

Depth	377 mm
Width	437 mm
Height	44 mm
Package weight	6250 g
