C66CS/C88CS USER MANUAL
www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk 10

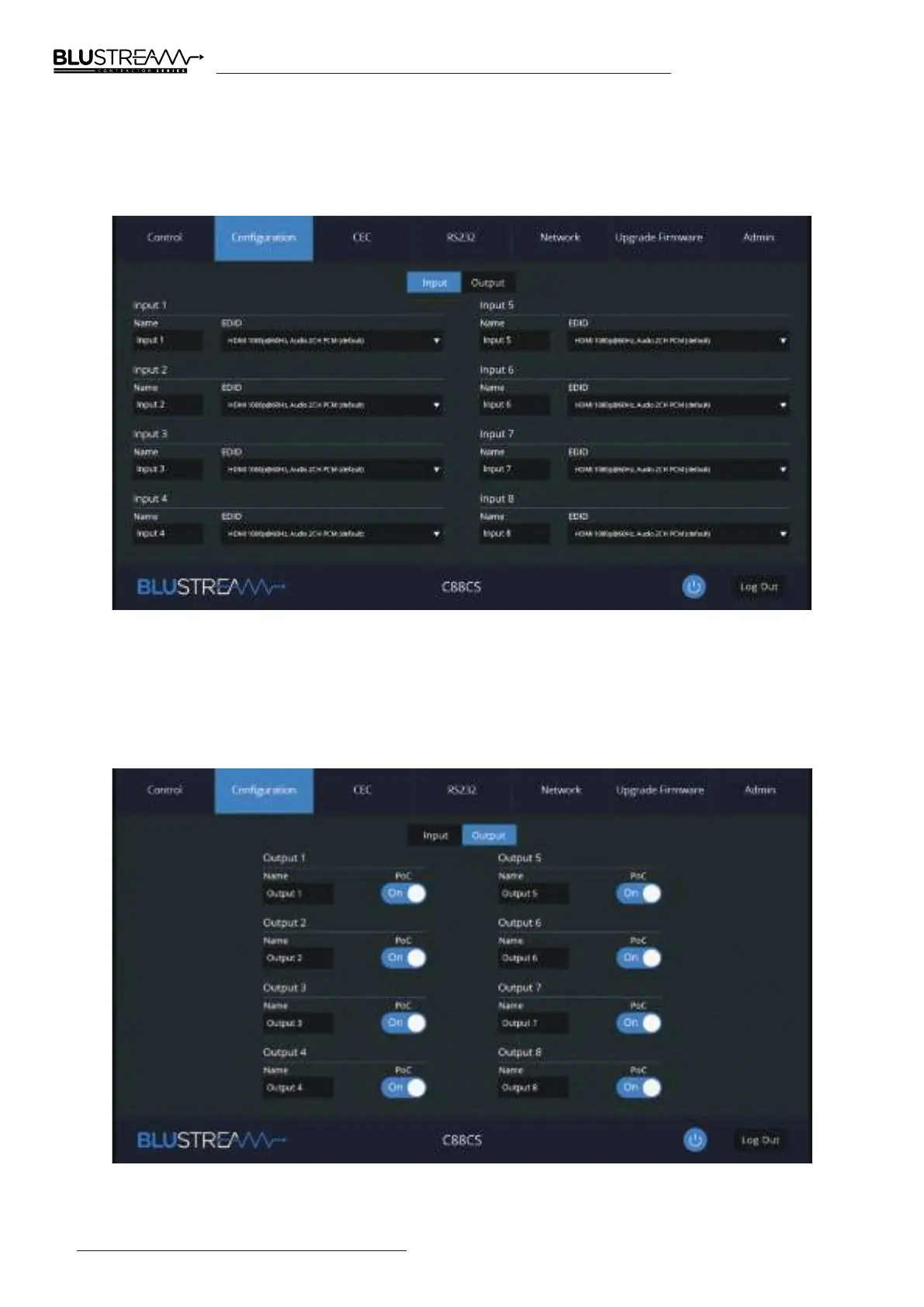

Configuration Page - Input
The Configuration Page allows for configuration settings for both inputs and outputs of the Matrix.
The configuration menu for either Input or Output is located at the top of the window.
Within the Input Page, enter a Name for each input as well as specify the required EDID from the drop down menu.
Configuration Page - Output
The Output Page allows settings specific to the outputs of the Matrix to be changed.
A Name can be specified as well as turn PoC (Power Over Cable) on or o for each output / receiver.

BluStream C66CS Specifications

General

HDCP	Yes
HDCP version	2.0
Product type	AV matrix switcher
Supported chroma subsampling	4:4:4, 4:2:0
AC input voltage	100 - 240 V
Power consumption (max)	- W
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 55 °C
Control type	Buttons
Housing color	Black
Rack capacity	1U
Remote (IR) input	7
Remote (IR) output	6
Ethernet LAN (RJ-45) ports	1
Built-in display	-

Weight and Dimensions

Depth	377 mm
Width	437 mm
Height	44 mm
Package weight	6250 g
