C66CS/C88CS USER MANUAL
Contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk
13

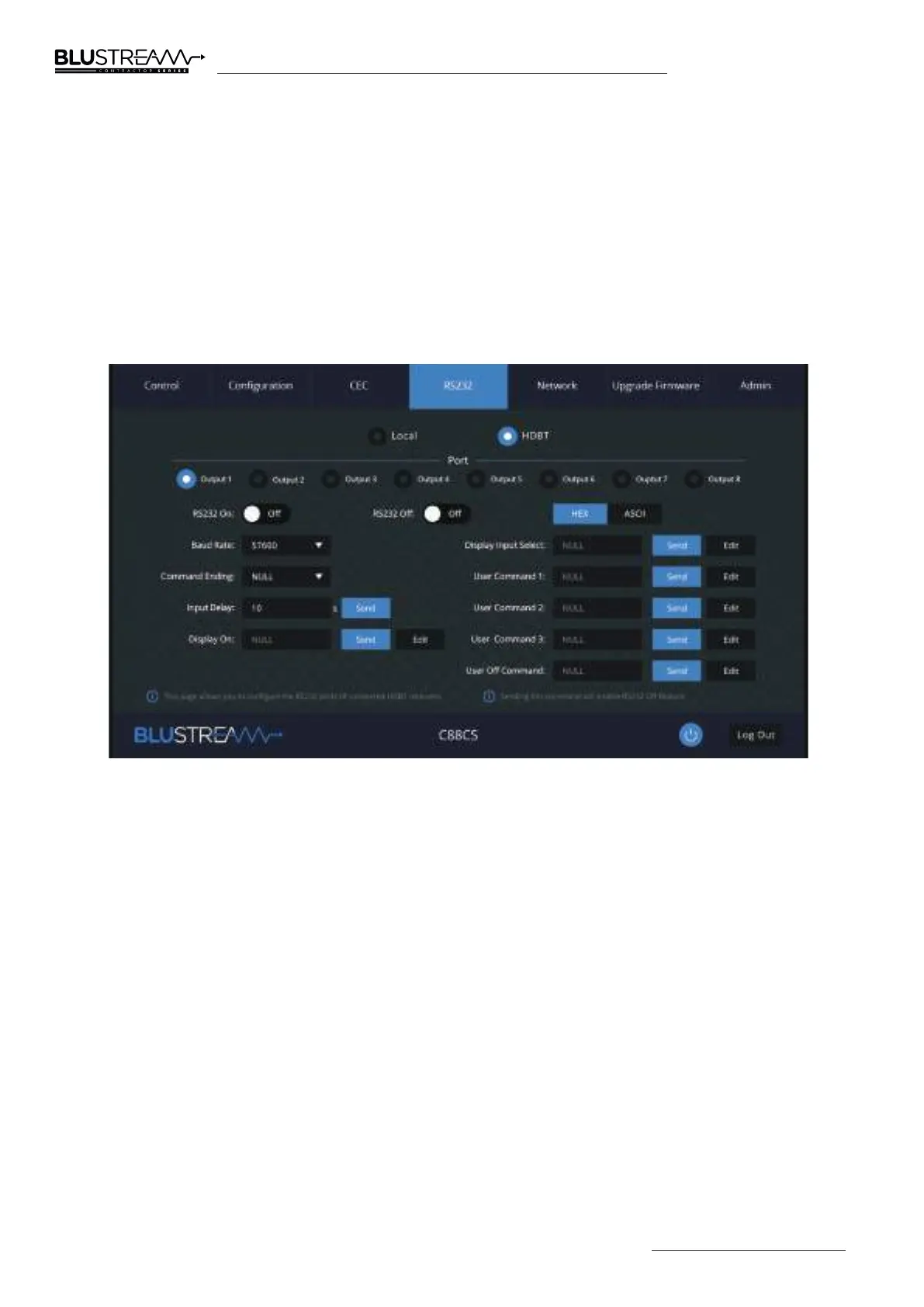

RS-232 Page - HDBT
The RS-232 HDBT Page allows you to remotely control devices connected via DB9 serial to remote HDBT Receivers
independently. It is also possible to automate the display on, input select and display o process via RS-232 for each
HDBT output, when the Matrix is turned on.
If RS-232 On is enabled, the Display On, Display Input Select, User Commands 1, 2, and 3 are all sent out of the
corresponding HDBT Receiver, when the Matrix is turned on.
If RS-232 O is enabled, the User O Command will be sent out of the corresponding HDBT Receiver with a delay of 3
secs between commands, when the Matrix is turned o.
You can also specify the Baud Rate and Command Ending (eg: new line, carriage return) for the match the RS-232
device connected to the HDBT Receiver.
