BluStream EX40B-KIT User Manual

EX40B-KIT USER MANUAL
04
www.blustream.co.uk

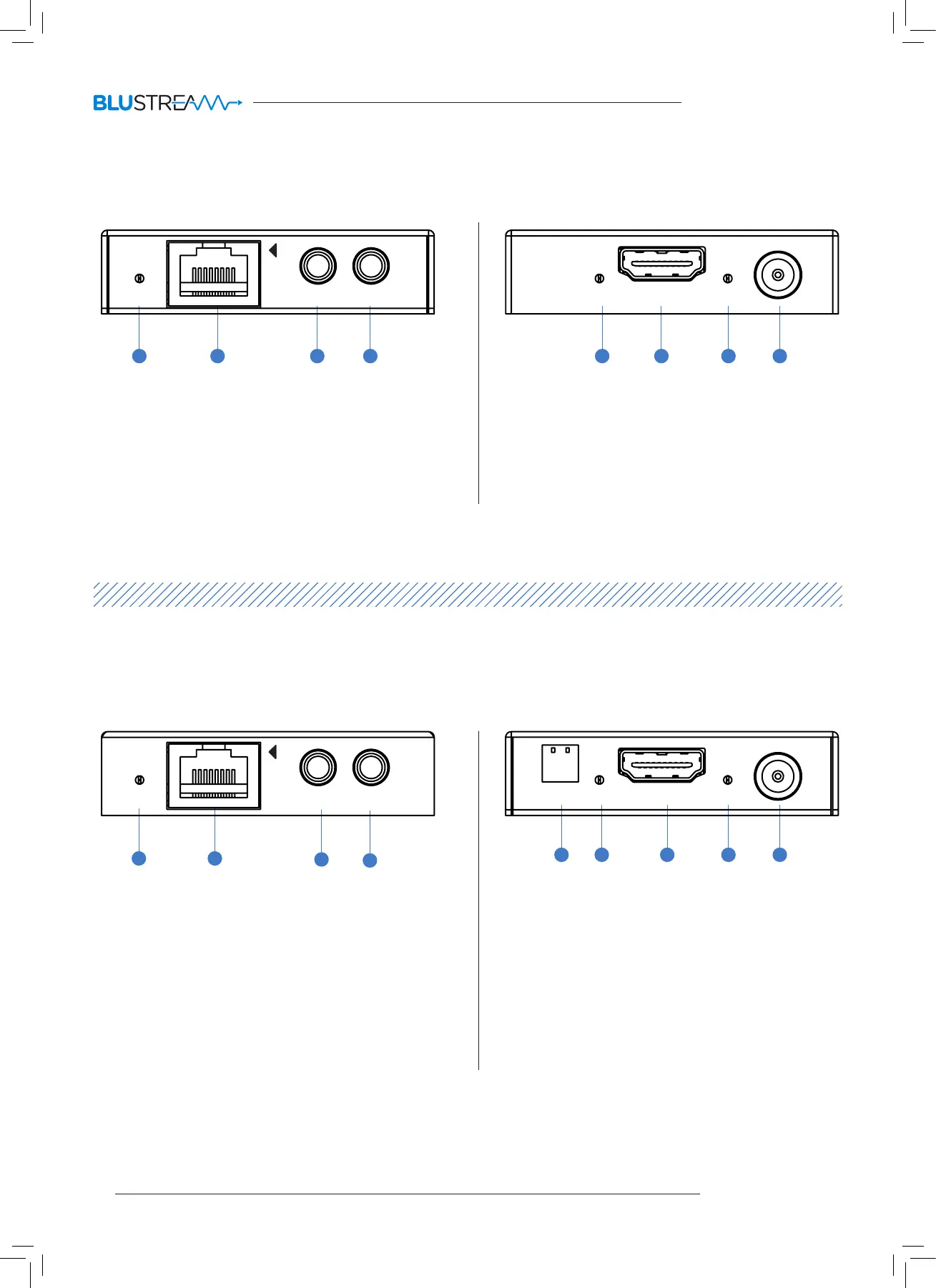

Panel Description EX40B-RX
Panel Description EX40B-TX
1 2
3
4
1 CAT link indicator
2 CAT cable input
3 IR Receiver jack (Sensor input)
4 IR Transmitter jack (Emitter output)
1 HDMI link indicator
2 HDMI output
3 Power indicator
4 5V/1A DC power input
1 EDID management dip-switches
2 HDMI link indicator
3 HDMI input
4 Power indicator
5 5V/1A DC power input
1 2 3 4 5
1 CAT link indicator
2 CAT cable input
3 IR Receiver jack (Sensor input)
4 IR Transmitter jack (Emitter output)
IR RX
CAT
Input
Link IR TX
Link HDMI Output Power
DC
5V
14321 2 3 4
IR RX
Link
IR TX
CAT
Output
Link HDMI Input
0
1
1 0
Power
DC
5V

BluStream EX40B-KIT Specifications

General

Brand	BluStream
Model	EX40B-KIT
Category	Extender
Language	English
