HMXL88ARC USER MANUAL
Contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk
11

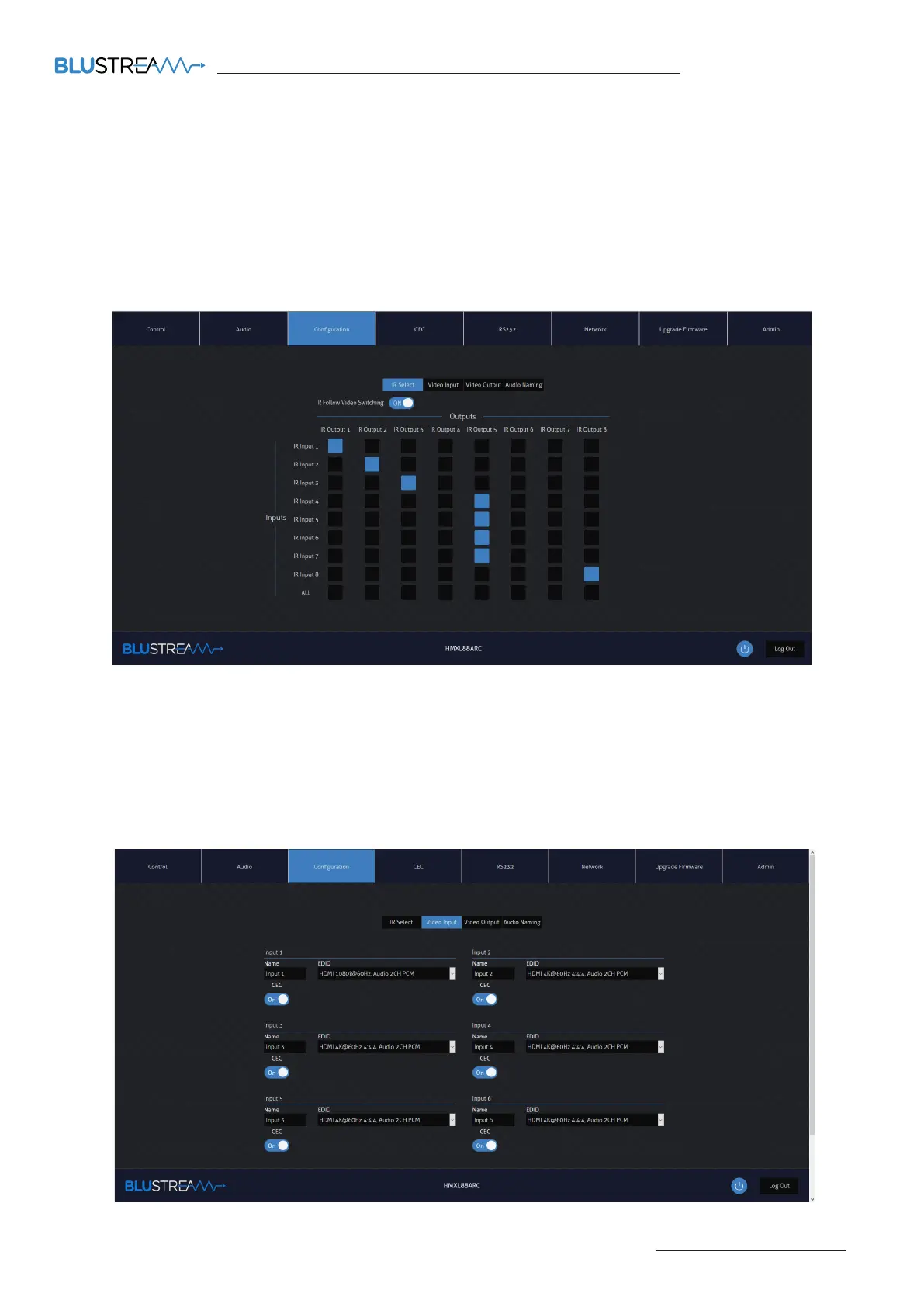

Configuration IR Select Page
The Configuration IR Select Page allows you to change the IR routing of the matrix. Simply select the square that
corresponds with the input and zone output you wish to set up a bi-directional IR relationship with, to have IR route
only between that input to output.
By enabling the ‘IR Follow Video Switching’ setting, IR will no longer have a fixed route. IR from zones will be
transmitted to the input corresponding with whichever video input is slected. IR inputs will be transmitted to whatever
outputs zones are currently viewing ths input source.
Configuration Video Input Page
The Configuration Video Input Page allows users to change settings specific to the inputs of the matrix.
You can adjust the name of each input, the EDID of each input as well as enable or disable CEC to the input.
