HMXL88ARC USER MANUAL
www.blustream.com.au | www.blustream-us.com | www.blustream.co.uk12

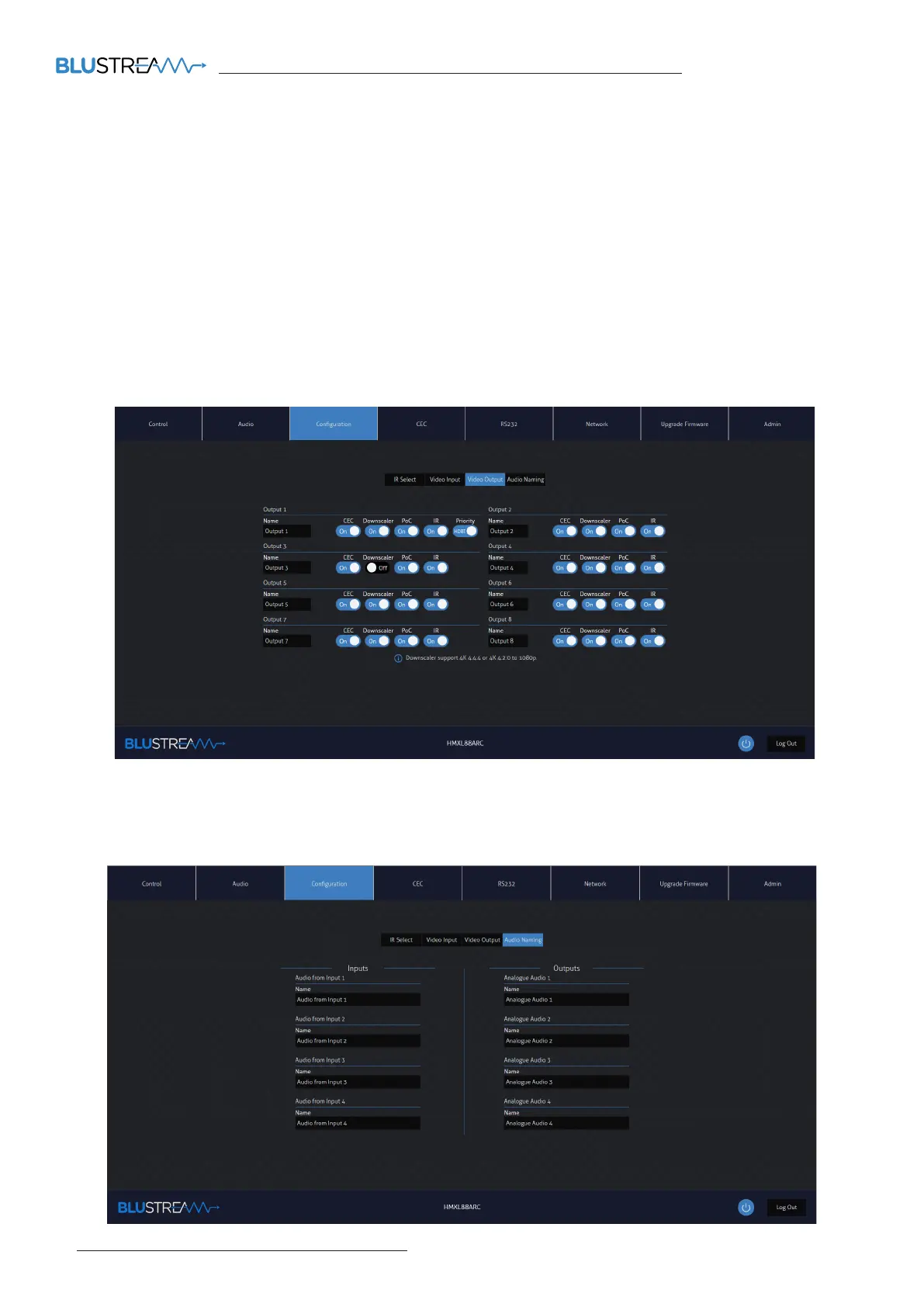

Configuration Video Output Page
The Configuration Video Output Page allows you to change settings specific to the outputs of the matrix as follows:
• The name of each output
• Enable or disable CEC to the output
• Enable or disable HDMI Auto Downscale - this will enable/disable automatic conversion from 4K 60Hz 4:4:4 to
4K 60Hz 4:2:0 for displays that do not support 18Gbps HDMI signals. Downscaling will depend on resolutions
supported by the display device.
• Enable or disable PoC (Power over Cable) to power connected HDBT receiver. It is recommended to use the
Blustream RX70CS HDBT Receiver to support all features of this Matrix
• Enable or disable IR being transmitted out to a zone or from that zone output
• Set EDID Priority (output 1) where you can specific if the HDBT output or HDMI output should have priority for EDID
management.
Configuration Audio Naming Page
The Configuration Audio Naming page allows you to rename all audio inputs and outputs to human readible names,
such as the name of your source device, or the name of the zone output (eg: Kitchen, Bedroom, etc...)
