HMXL88ARC USER MANUAL
Contact: support@blustream.com.au | support@blustream-us.com | support@blustream.co.uk
13

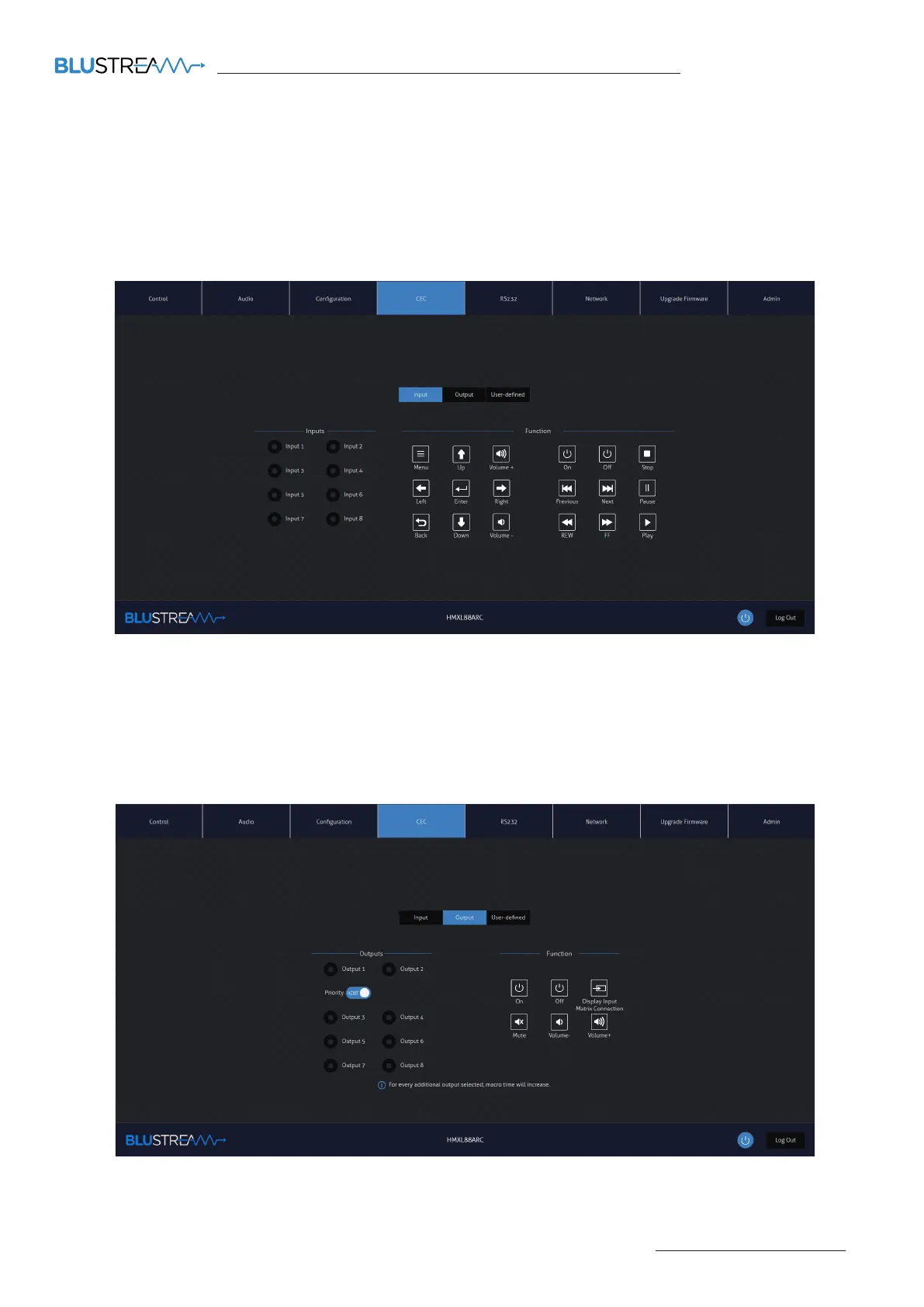

CEC Page - Output
On the CEC Output Page, you must specify a specific output to send the CEC command out of. Press the icon of the
command you wish to send and it will be transmitted to the display device connected to the specified output.
Note CEC is subject to the support of the sources and displays connected to the matrix.
CEC Page - Input
The CEC Page allows you to send pre-defined CEC commands to Inputs or Outputs of the matrix. You can choose
between Input, Output and User-defined sections at the top of the page. On the CEC Input Page, you must specify an
input to send the CEC command to. Press the icon of the command you wish to send at it will be transmitted to the
source device connected to the specified input via HDMI.
Note CEC is subject to the support of the sources and displays connected to the matrix.
